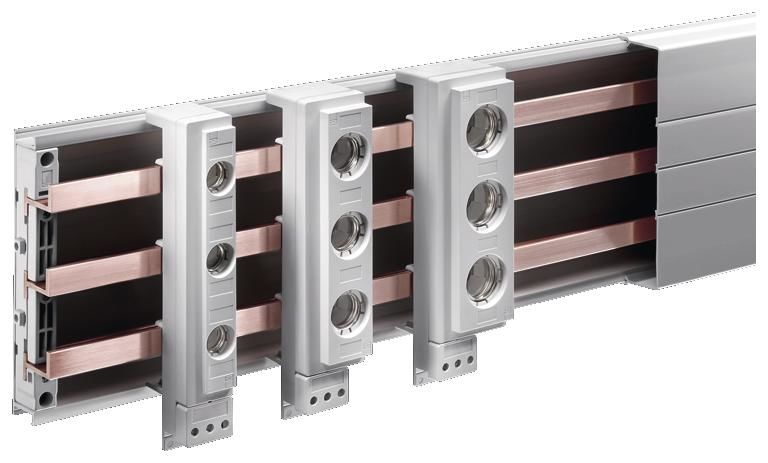

Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate
|
-5% 135,49 EUR 143,20 EUR |
|||||||||||
|
incl. 1,75 EUR copper surcharge ( 161,23 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: >5 pieces | |||||||||||
| Lieske Part No.: | 163704 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3418040 | ||||||||||
| UPC/EAN: | 4028177674943 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3418040:
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Contact hazard protection: Polyamide (PA 6.6)
Colour: RAL 7035
Supply includes: Pre-configured element ready for connection including cover plate, contact hazard protection and exterior connection clamps
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 5 pc(s).
EAN: 4028177674943
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
Design: Easy Connect
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 41 mm
Height: 251 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V, 3~
400 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 16 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 1.64 kg
Type: SV 3418.040
Questions & answers
What is the delivery time of Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate?
The article Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3418040 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate always at the best possible price. We can give you a discount of 2% on Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of Rittal 3418040 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-16 mm², adaptor sleeve, including cover plate we can offer you a price of 133,48 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
