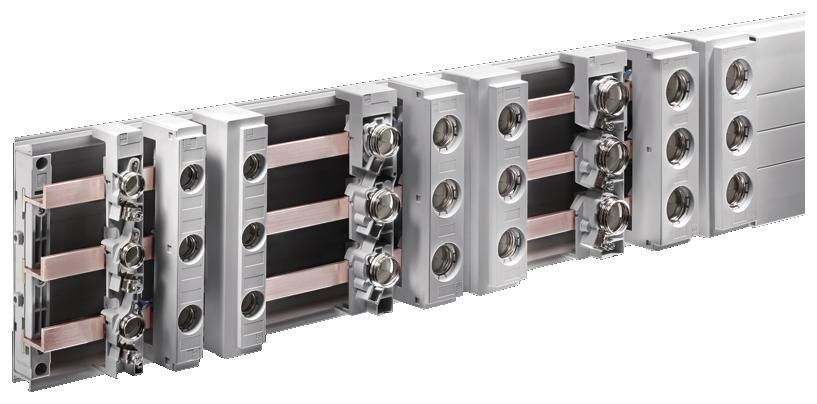

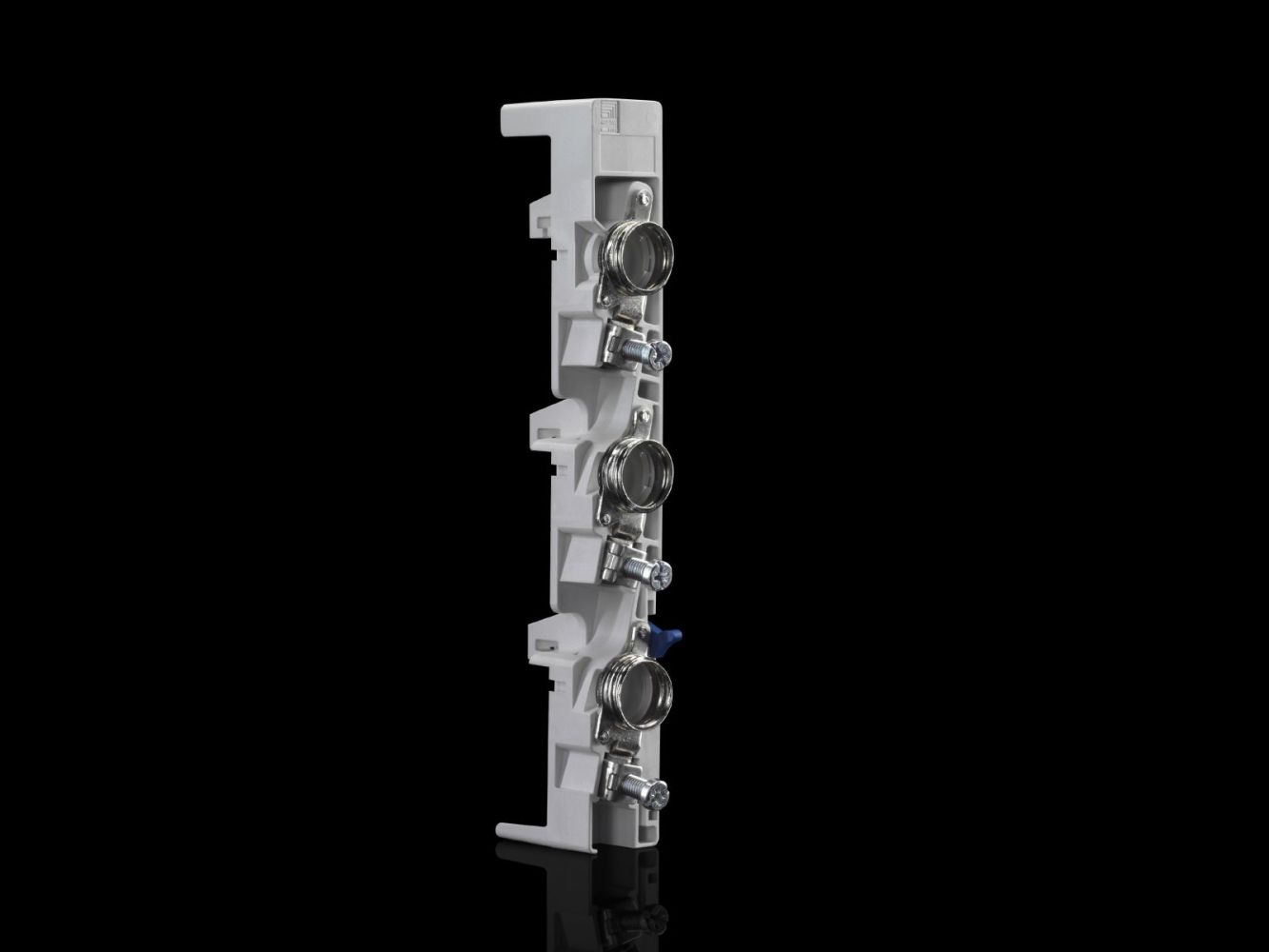

Rittal 3418010 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve
|
90,03 EUR 92,77 EUR |
|
|
incl. 1,76 EUR copper surcharge ( 107,14 EUR incl. VAT ) ≈ £77.16 | ≈ $102.27 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |
| In Stock: >25 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 463226 |
| Mfg Part No: | 3418010 |
| UPC/EAN: | 4028177674929 |
| Weight: | 1.78 kg |
| Type: | SV 3418010 |
Further Power distribution components from RittalFurther products in category Power distribution components
All products of Rittal
Product information for Rittal 3418010:
Material: Bus-mounting fuse base: Fibreglass-reinforced, thermoplastic polyester (PBT)
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674929
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 27 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V, 3~
400 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 25 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 1.69 kg
Contact hazard protection: Polyamide (PA 6.6)
Fire protection corresponding to UL 94-V0
Colour: RAL 7035
Note: For the use of fuse inserts to EN 60 269-3 (DIN VDE 0636-301)
Packs of: 10 pc(s).
EAN: 4028177674929
Customs tariff number: 85369085
eCl@ss 5.1: 27370302
eCl@ss 7.0: 27371402
ETIM 6.0: EC001644
To fit busbars: with cross-section height: 5 mm
with cross-section height: 10 mm
Number of poles: 3-pole
For bar systems with centre-to-centre spacing: 60 mm
Dimensions: Width: 27 mm
Height: 209 mm
Type of electrical connection: Box terminal
Rated operating voltage: 400 V, 3~
400 V (DC)
Connection for round conductor cross-sections: 1.5 mm² - 25 mm²
Note: Wire end ferrules should be used with fine wire conductors.
Rated current (max.): 63 A
Fuse inserts: D 02-E 18 (adaptor sleeve)
Weight/pack: 1.69 kg
Please note...
This article contains a copper surcharge of 1,76 EUR. This depends on daily copper prices and weight of included copper. You can inquire the copper price via phone under +49 7666 884990
Questions & answers
What is the delivery time of Rittal 3418010 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve?
The article Rittal 3418010 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve is currently in stock
According to our experience the article is ready for dispatch within 3 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3418010 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3418010 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve always at the best possible price. We can give you a discount of 2% on Rittal 3418010 SV Bus-mounting fuse base, D02-E18, 63 A, 400 V, 3-pole, round conductor connection 1,5-25 mm², adaptor sleeve if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
