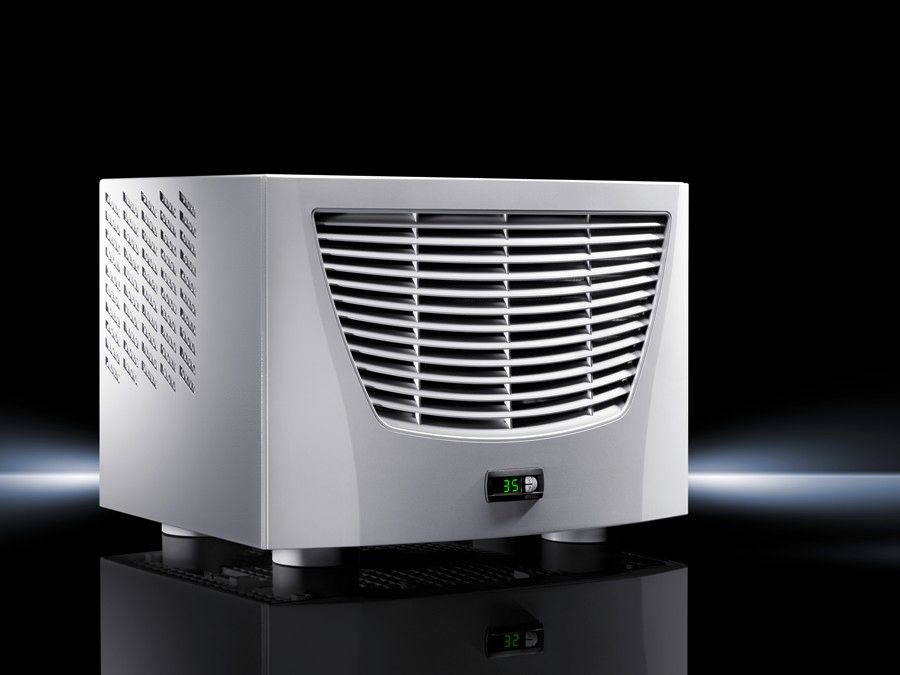

Rittal 3387640 RTT Blue e cooling unit stainless steel roof mounting, 4000 W, Comfort

Your rating:
Average rating
product review for Rittal 3387640 RTT Blue e cooling unit stainless steel roof mounting, 4000 W, Comfort
( 4.5 / 5 ) 89 ratings
Rittal 3387640
This image may differ from the desired article.
Rittal 3387640Rittal 3387640
3.418,95 EUR 3.523,60 EUR
( 4.068,55 EUR incl. VAT )
≈ £2,861.66  |  ≈ $3,757.43
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3387640 RTT Blue e cooling unit stainless steel roof mounting, 4000 W, Comfort
Datasheet:file_download Download
Lieske Part No.:956212
Mfg Part No: 3387640
UPC/EAN: 4028177380240
Weight:92 kg
Type:SK 3387640

Product information for Rittal 3387640:

The Rittal SK 3387640 is a roof-mounted cooling unit of the Blue e series, specifically designed for climate control of enclosures and industrial housings. It features a total cooling capacity of up to 4.0 kW at 460 V and 60 Hz, with the cooling capacity varying between 3.05 kW and 4.0 kW depending on operating conditions. The unit is designed for industrial environments, but due to its low noise level, it also offers suitable operating conditions for office applications. It is manufactured from stainless steel 1.4301 (AISI 304) and has a colour according to RAL 9007, ensuring high corrosion resistance and long service life.

Applications
This cooling unit is suitable for use in enclosures installed in industrial plants, power supply systems, or buildings with elevated temperature requirements. It is designed for operating temperatures between 10 °C and 55 °C and can be stored at temperatures from -40 °C to 70 °C. The integrated electrical condensate evaporation ensures that condensate does not drain inside the enclosure but evaporates, simplifying installation and minimizing the risk of water accumulation.

Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, which is set by default to +35 °C and is adjustable within a range of 20 °C to 55 °C. Temperature control is automatic, ensuring a constant internal temperature within the enclosure. The condenser is coated with a hydrophobic RiNano coating, which improves heat transfer and reduces contamination. The electrical condensate evaporation ensures dry internal climate control, reducing the risk of moisture damage.

Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has a Global Warming Potential (GWP) of 631 and contains 1.8 kg within the unit. Cooling capacity is measured according to DIN EN 14511, with values varying depending on operating frequency (50 Hz or 60 Hz) and ambient temperature (L35 or L50). Energy efficiency is expressed by the Energy Efficiency Ratio (EER), which is 2.24 at 50 Hz and 1.97 at 60 Hz. Air performance is 3,870 m³/h in the external circuit and 1,420 m³/h in the internal circuit, enabling efficient air circulation within the enclosure. Protection rating IP 34 for the external circuit and IP 34 for the internal circuit ensures sufficient protection against dust and splashing water.

Compatibility and Accessories
The unit is networkable via the IoT Interface using the Blue e IoT adapter, enabling remote monitoring and control. It is compatible with accessories such as covers for internal air outlet, air duct systems, SK Master/Slave cables for the SK-bus system, metal filters, filter mats, condensate hoses, and quick-change frames. These components can be added as required to optimize airflow, filtration, or mounting.

Mounting and Installation
The cooling unit is designed as a roof-mounted device and is installed directly onto the enclosure roof. It is pre-wired with a plug-in terminal strip, simplifying installation. The delivery includes a drilling template and mounting materials to facilitate installation. The rated operating voltage is 400 V, 3~, 50 Hz or 460 V, 3~, 60 Hz, with the maximum rated current being 4.1 A at 50 Hz and 4.5 A at 60 Hz. The inrush current is up to 17 A (50 Hz) or 19 A (60 Hz). The fuse requires a motor protection switch in the range of 6.3 to 10 A.

Operational Advantages
The integrated electrical condensate evaporation and e-Comfort controller ensure reliable and low-maintenance climate control. The high air performance and robust stainless steel construction guarantee long service life and efficient cooling performance. Network capability via the IoT Interface enables remote monitoring and control, simplifying operational control and maintenance. The duty cycle is 100 %, ensuring continuous operational readiness. The unit is designed for use in environments with high temperature requirements and provides reliable cooling performance even under extreme conditions.

General
ModelRoof structure
MaterialStainless steel 1.4301 (AISI 304)
ColourRAL 9007
Scope of deliveryCondenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 3.8 kW, cooling capacity L35 L35/60 Hz: 4 kW, cooling capacity L35 L50/50 Hz: 3.05 kW, cooling capacity L35 L50/60 Hz: 3.3 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
NoteThe rooftop cooling unit 3273.500 can be used for office applications due to its low noise level.
Rated current max.At 50 Hz: 4.1 A, At 60 Hz: 4.5 A
Inrush current (max.)At 50 Hz: 17 A, At 60 Hz: 19 A
Air performance (free blowing)Outer circuit: 3,870 m³/h, inner circuit: 1,420 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance coefficient L35 L35 (EER) 50 Hz: 2.24, cooling performance coefficient L35 L35 (EER) 60 Hz: 1.97
Width796 mm
Height470 mm
Depth580 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 1.8 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.14 t
Electrical connection typePlug-in terminal block
Working time100 %
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...55 °C
Rated power PelRated power L35 L35/50 Hz: 1.7 kW, Rated power L35 L35/60 Hz: 2.03 kW, Rated power L35 L50/50 Hz: 1.84 kW, Rated power L35 L50/60 Hz: 2.31 kW
Permissible operating pressure (p max.)28 bar
FuseMotor protection switch: 6.3...10 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3387640, EAN: 4028177380240
