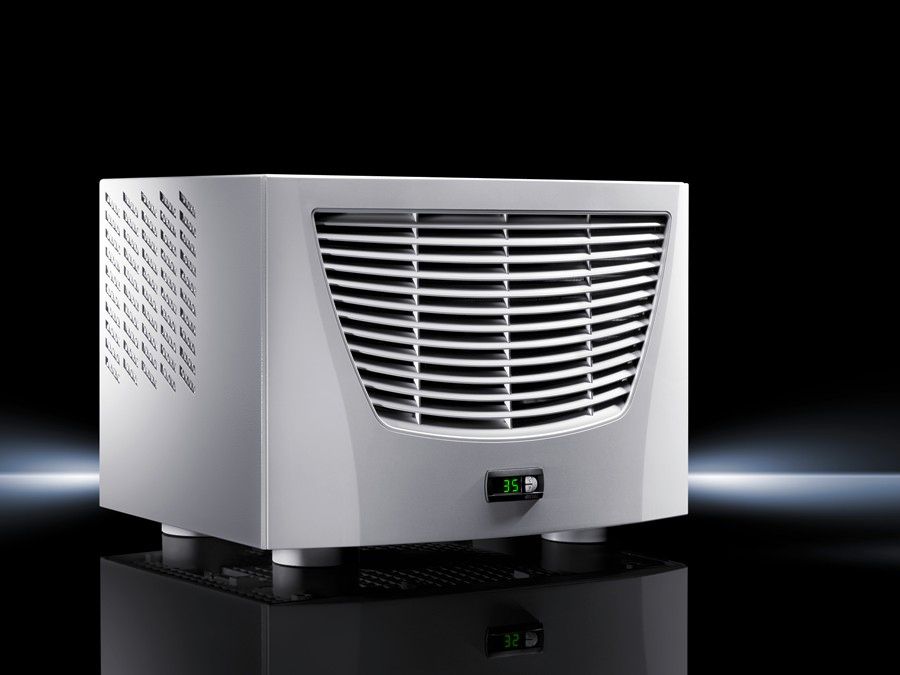

Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor

Your rating:
Average rating
product review for Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor
( 4.5 / 5 ) 32 ratings
Rittal 3386640
This image may differ from the desired article.
Rittal 3386640Rittal 3386640
3.071,65 EUR 3.194,52 EUR
( 3.655,26 EUR incl. VAT )
≈ £2,570.97  |  ≈ $3,375.74
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor
Datasheet:file_download Download
Lieske Part No.:986362
Mfg Part No: 3386640
UPC/EAN: 4028177380226
Weight:88 kg
Type:SK 3386640

Product information for Rittal 3386640:

The Rittal SK 3386640 is a roof-mounted cooling unit of the Blue e series, specifically designed for climate control of enclosures and industrial housings. It features a total cooling capacity of up to 3.3 kW at 460 V and 60 Hz, with performance varying according to operating conditions. The unit is designed for industrial environments, but due to its low noise level, it is also suitable for office applications. Cooling capacity is measured according to DIN EN 14511, with values specified for various operating conditions (L35 L35/50 Hz, L35 L35/60 Hz, L35 L50/50 Hz, L35 L50/60 Hz). The rated operating voltage is 400 V, 3~, 50 Hz and 460 V, 3~, 60 Hz, enabling flexible integration into different power supply systems.

Applications
This cooling unit is intended for use in enclosures and industrial housings where controlled internal temperature is required to ensure the function and lifespan of installed electronic components. The operating temperature range is between 10 °C and 55 °C, allowing reliable operation even in environments with high ambient temperatures. The storage temperature range extends from -40 °C to 70 °C, enabling safe storage under extreme conditions. The adjustable range for temperature control is 20 °C to 55 °C, enabling precise temperature regulation.

Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to +35 °C, which automatically regulates the temperature inside the enclosure. Electrical condensate evaporation ensures that condensate formed within the unit evaporates directly, eliminating the need for drainage and simplifying installation. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and facilitating cleaning. The unit is pre-wired with a plug-in connection terminal strip, accelerating installation. The delivery includes a drilling template and mounting hardware to facilitate installation.

Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has lower environmental impact than conventional refrigerants. The quantity is 1.6 kg, and the Global Warming Potential (GWP) is 631, equivalent to 1.01 t of CO₂. Energy efficiency is described by the coefficient of performance (EER), which is 2.29 at 50 Hz and 2.13 at 60 Hz. The airflow rate is 3,450 m³/h in the outdoor circuit and 1,280 m³/h in the indoor circuit, ensuring efficient air circulation. The protection rating IP is IP 34 for the outdoor circuit and IP 34 for the indoor circuit, providing protection against dust and splashing water. The duty cycle is 100 %, meaning the unit can be operated continuously. The pre-fuse is a motor protection switch with a nominal rating of 6.3 to 10 A.

Compatibility and Accessories
The cooling unit is networkable via the IoT Interface using the Blue e IoT Adapter, enabling remote monitoring and control. Compatible accessories include filter mats and metal filters for air purification, quick-change frames for easy installation, lifting eyes for freight shipping, door position switches for status monitoring, SK Master/Slave cables for the SK bus system, air duct systems for air guidance, cover caps for indoor air outlet, and condensate hoses for condensate drainage. These components allow application-specific adaptation of the cooling unit.

Mounting and Installation
Installation is carried out on the roof of the enclosure. The drilling template and mounting hardware included in the delivery simplify installation. The plug-in connection terminal strip enables quick and secure electrical connection. Dimensions are 796 mm (width) × 470 mm (height) × 580 mm (depth), ensuring a compact design. The material is stainless steel 1.4301 (AISI 304), which is corrosion-resistant and durable. The color is RAL 9007, a dark gray finish that integrates well in industrial environments.

Operational Advantages
The unit offers high energy efficiency, reliable temperature control, and easy installation. The integrated electrical condensate evaporation reduces maintenance effort, as no condensate needs to be drained. Networkability with the IoT Interface enables remote monitoring and control, enhancing operational safety. The robust stainless steel construction and high IP 34 protection rating for the indoor circuit ensure long service life and reliability in demanding environments. The low noise emission also makes the unit suitable for office applications.

General
ModelRoof structure
MaterialStainless steel 1.4301 (AISI 304)
ColourRAL 9007
Scope of deliveryCondenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 3 kW, cooling capacity L35 L35/60 Hz: 3.3 kW, cooling capacity L35 L50/50 Hz: 2.2 kW, cooling capacity L35 L50/60 Hz: 2.5 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
NoteThe rooftop cooling unit 3273.500 can be used for office applications due to its low noise level.
Rated current max.At 50 Hz: 3.4 A, At 60 Hz: 3.4 A
Inrush current (max.)At 50 Hz: 8 A, At 60 Hz: 9 A
Air performance (free blowing)External circuit: 3,450 m³/h, Internal circuit: 1,280 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance factor L35 L35 (EER) 50 Hz: 2.29, Cooling performance factor L35 L35 (EER) 60 Hz: 2.13
Width796 mm
Height470 mm
Depth580 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 1.6 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.01 t
Electrical connection typePlug-in terminal block
Working time100 %
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...55 °C
Rated power PelRated power L35 L35/50 Hz: 1.31 kW, Rated power L35 L35/60 Hz: 1.55 kW, Rated power L35 L50/50 Hz: 1.49 kW, Rated power L35 L50/60 Hz: 1.76 kW
Permissible operating pressure (p max.)28 bar
FuseMotor protection switch: 6.3...10 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3386640, EAN: 4028177380226

Questions & answers

What is the delivery time of Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor?

The article Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3386640 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor always at the best possible price. We can give you a discount of 2% on Rittal 3386640 RTT Blue e cooling unit stainless steel roof mounting, 3000 W, Comfor if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
