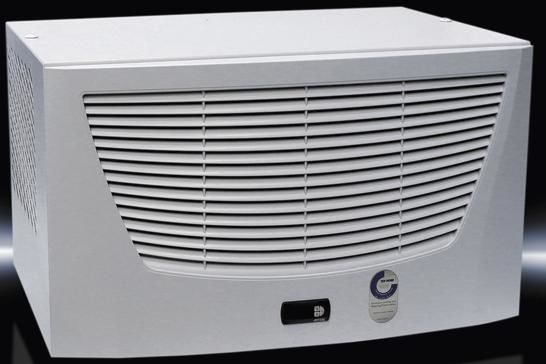

Rittal 3386540 SK Blue e cooling unit, Roof-mounted, 3 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 796x470x580 mm
|
-7% 2.825,47 EUR 3.023,26 EUR |
|||||||||||
|
( 3.362,31 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 468706 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3386540 | ||||||||||
| UPC/EAN: | 4028177323308 | ||||||||||
| Weight: | 0.07 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3386540:
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: Thanks to their low noise level, the roof-mounted cooling units 3273.500 and 3273.515 are also suitable for use in office applications
Packs of: 1 pc(s).
EAN: 4028177323308
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 3 kW
L 35 L 35 at 60 Hz: 3.3 kW
L 35 L 50 at 50 Hz: 2.2 kW
L 35 L 50 at 60 Hz: 2.5 kW
Air throughput (unimpeded air flow): External circuit: 3450 m³/h
Internal circuit: 1280 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 796 mm
Height: 470 mm
Depth: 580 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1600 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: L 35 L 35 at 50 Hz: 1.17 kW
L 35 L 35 at 60 Hz: 1.48 kW
L 35 L 50 at 50 Hz: 1.42 kW
L 35 L 50 at 60 Hz: 1.76 kW
Rated current (max.): At 50 Hz: 3.4 A
At 60 Hz: 3.4 A
Start-up current max.: At 50 Hz: 8 A
At 60 Hz: 9 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.56
Weight/pack: 70 kg
Type: SK 3386.540
