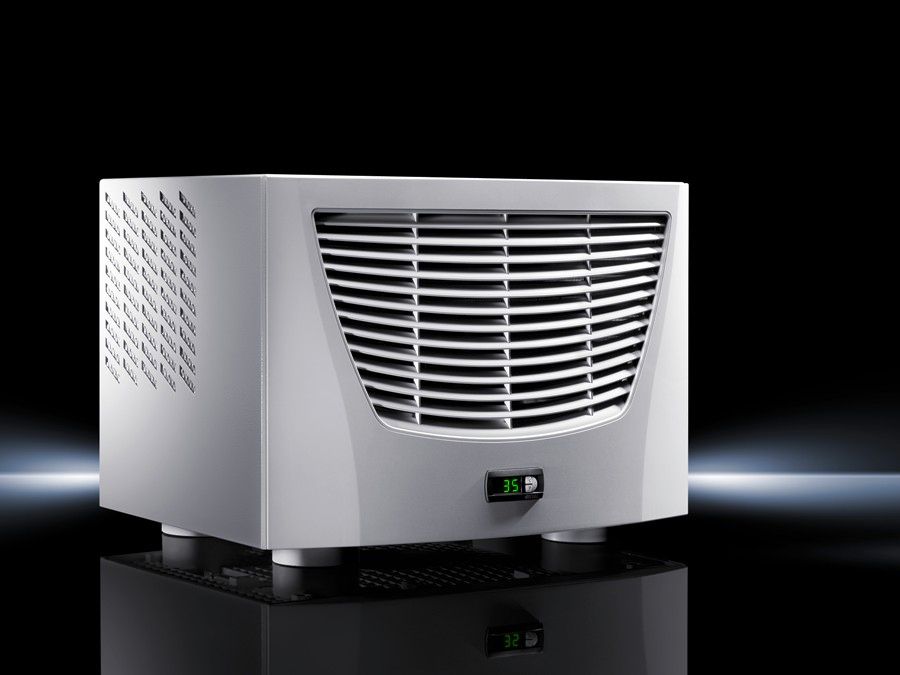

Rittal 3385600 RTT Blue e cooling unit in stainless steel roof mount 2000 W
|
2.370,15 EUR 2.464,96 EUR |
|
|
( 2.820,48 EUR incl. VAT ) ≈ £1,983.82 | ≈ $2,604.79 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 986112 |
| Mfg Part No: | 3385600 |
| UPC/EAN: | 4028177380196 |
| Weight: | 51 kg |
| Type: | SK 3385600 |
Product information for Rittal 3385600:
Applications
This cooling unit is designed for industrial environments where continuous cooling of electronic components is required. Due to its low noise level, it is also suitable for office applications requiring disturbance-free operation. Operating temperature ranges are between 10 °C and 55 °C, with a maximum operating temperature of 53 °C allowed at 60 Hz. Storage temperature ranges extend from -40 °C to 70 °C, enabling flexible storage under various conditions.
Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to +35 °C, which automatically regulates the cooling unit’s operation. The adjustable range is between 20 °C and 53 °C. Electric condensate evaporation ensures that condensate formed within the unit evaporates, eliminating the need for additional drainage. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and reducing contamination. The connection terminal strip is plug-in type, and the unit is pre-wired for connection, simplifying installation.
Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 2 kW at 50 Hz under L35 operation. Energy efficiency is described by the Energy efficiency ratio (EER), which is 1.96 at 50 Hz and 1.69 at 60 Hz, indicating higher efficiency at 50 Hz. Air performance is 1,760 m³/h in the external circuit and 470 m³/h in the internal circuit, ensuring sufficient air circulation within the enclosure. The refrigerant R-513A has a Global Warming Potential (GWP) of 631 and a quantity of 0.9 kg, equivalent to 0.57 t of CO₂. The maximum allowable operating pressure is 28 bar.
Compatibility and Accessories
The cooling unit can be networked via the IoT Interface using a Blue e IoT Adapter, enabling integration into monitored systems. Compatible accessories include air duct systems, quick-change frames, filter mats, metal filters, door position switches, condensate hoses, and sealing plugs. These components allow for adaptable and efficient integration into existing enclosure configurations.
Mounting and Installation
Installation is carried out on the enclosure roof. The unit includes a drilling template and mounting materials, simplifying the installation process. Electrical connection is via a plug-in terminal strip, enabling secure and quick connection. The fuse rating is 10 A, ensuring electrical safety.
Operational Advantages
The cooling unit offers high operational reliability through integrated electric condensate evaporation and the e-Comfort controller. The stainless steel construction ensures long service life and high corrosion resistance. The low noise emission makes it suitable for office environments. Network capability via the IoT Interface enables remote monitoring and control, improving maintenance and operational oversight. The duty cycle is 100 %, ensuring continuous cooling performance.
| General | |
| Model | Roof structure |
| Material | Stainless steel 1.4301 (AISI 304) |
| Colour | RAL 9007 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 2 kW, Cooling capacity L35 L35/60 Hz: 2.14 kW, Cooling capacity L35 L50/50 Hz: 1.58 kW, Cooling capacity L35 L50/60 Hz: 1.51 kW |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Note | The rooftop cooling unit 3273.500 can be used for office applications due to its low noise level. |
| Rated current max. | At 50 Hz: 6.5 A, At 60 Hz: 7.9 A |
| Inrush current (max.) | At 50 Hz: 19.7 A, At 60 Hz: 17.9 A |
| Air performance (free blowing) | Outer circuit: 1,760 m³/h, inner circuit: 470 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance ratio L35 L35 (EER) 50 Hz: 1.96, Cooling performance ratio L35 L35 (EER) 60 Hz: 1.69 |
| Width | 597 mm |
| Height | 417 mm |
| Depth | 475 mm |
| Degree of protection IP according to EN 60 529 | External circuit: IP 34, internal circuit: IP 54 |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 0.9 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.57 t |
| Electrical connection type | Plug-in terminal block |
| Working time | 100 % |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Maximum operating temperature at 60 Hz | 53 °C |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...53 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 1.02 kW, Rated power L35 L35/60 Hz: 1.27 kW, Rated power L35 L50/50 Hz: 1.15 kW, Rated power L35 L50/60 Hz: 1.29 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | Circuit breaker/fuse: 10 A |
