Rittal 3385510 RTT Blue e cooling unit roof mount 2000 W Comfortregl

Your rating:
Average rating
product review for Rittal 3385510 RTT Blue e cooling unit roof mount 2000 W Comfortregl
( 4.3 / 5 ) 4 ratings

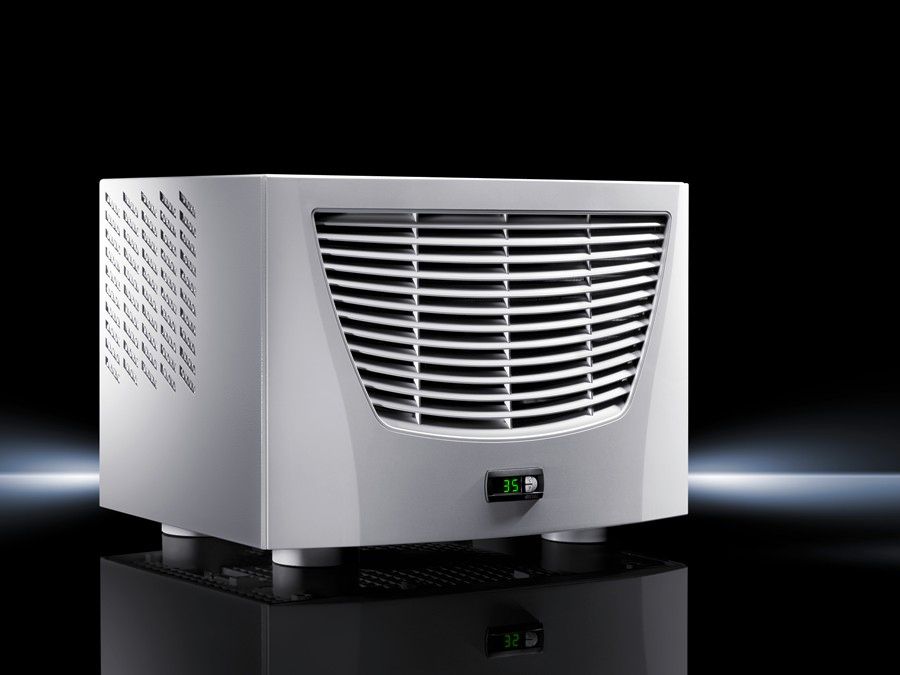

Rittal 3385510
This image may differ from the desired article.
Rittal 3385510Rittal 3385510
2.197,65 EUR 2.285,56 EUR
( 2.615,20 EUR incl. VAT )
≈ £1,839.43  |  ≈ $2,415.22
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3385510 RTT Blue e cooling unit roof mount 2000 W Comfortregl
Datasheet:file_download Download
Lieske Part No.:592157
Mfg Part No: 3385510
UPC/EAN: 4028177323261
Weight:60.3 kg
Type:SK 3385510

Product information for Rittal 3385510:

The Rittal SK 3385510 is a roof-mounted cooling unit of the Blue e series, specifically developed for climate control in enclosures and industrial housings. It features a total cooling capacity of up to 2.14 kW at 60 Hz and is designed for operating voltages of 115 V, 1~, 50/60 Hz. The unit is made of sheet steel and has a colour finish according to RAL 7035. It is designed for use in industrial environments, but also offers a suitable solution for office applications due to its low noise level. Dimensions are 597 mm (width) × 417 mm (height) × 475 mm (depth). Cooling capacity is measured according to DIN EN 14511, with values varying depending on operating frequency and ambient temperature. At 50 Hz and an ambient temperature of 35 °C, the cooling capacity is 2 kW; at 60 Hz, it is 2.14 kW. At an ambient temperature of 50 °C, cooling capacity drops to 1.58 kW (50 Hz) or 1.51 kW (60 Hz). Rated power is 1.02 kW (50 Hz) to 1.29 kW (60 Hz). Energy efficiency is described by the Energy efficiency ratio (EER), which is 1.96 at 50 Hz and 1.69 at 60 Hz. The unit is designed for 100 % duty cycle and can be operated continuously.

Applications
This cooling unit is designed for use in industrial enclosures and electronic housings where controlled internal temperature is required. It is particularly suitable for applications where ambient temperature ranges between 10 °C and 55 °C. At 60 Hz operation, the maximum operating temperature is limited to 53 °C. The storage temperature range extends from -40 °C to 70 °C, enabling storage under extreme conditions. Temperature control is managed by an integrated e-Comfort controller, factory-set to +35 °C. The adjustable range is 20 °C to 53 °C, allowing individual temperature adjustment within this range.

Functions and Equipment in Detail
The unit features a condenser with hydrophobic RiNano coating, which improves heat transfer and reduces condensate formation. Integrated electric condensate evaporation ensures that any condensate formed evaporates directly within the unit, eliminating the need for drainage. The connection terminal strip is plug-in, and the unit is pre-wired for easy installation. The delivery includes a drilling template and mounting hardware to facilitate installation on the enclosure roof. Airflow is 1,760 m³/h in the external circuit and 470 m³/h in the internal circuit, ensuring efficient air circulation.

Technology Explained Simply
The cooling unit uses refrigerant R-513A, which has low environmental impact. The quantity is 0.9 kg, with a Global Warming Potential (GWP) of 631 and a CO₂ equivalent of 0.57 t. The external circuit has IP 34 protection, safeguarding against solid objects ≥2.5 mm and splashing water from any direction. The internal circuit is protected to IP 34, providing dust and splash water protection. Maximum operating pressure is 28 bar. The fuse is a transformer protection switch with a rated value of 14 to 20 A. Inrush current is up to 42.2 A at 50 Hz and 31.1 A at 60 Hz. Rated currents are 15.8 A (50 Hz) and 16 A (60 Hz).

Compatibility and Accessories
The unit can be networked via IoT Interface using the Blue e IoT Adapter, available for cooling units with ≥500 W cooling capacity and e-Comfort controller. Compatible accessories include filter mats, metal filters, SK Master/Slave cables for the SK-Bus system, transport eyes, closure plugs, door position switches, condensate hoses, quick-change frames, and air duct systems for roof-mounted cooling units. These components allow individual adaptation and functional expansion.

Installation and Mounting
Mounting is on the enclosure roof. The included drilling template and mounting hardware simplify installation. The plug-in electrical connection terminal strip enables quick and secure wiring. Air intake and exhaust occur via the external and internal circuits, with airflow influencing cooling efficiency.

Operational Advantages
The cooling unit offers high energy efficiency, especially at 50 Hz operation with an EER of 1.96. Integrated condensate evaporation reduces maintenance effort, as no condensate drainage is required. Low noise emission makes it suitable for office applications. Integrated temperature control via the e-Comfort controller enables precise temperature regulation. The 100 % duty cycle ensures continuous cooling performance, even under high loads.

Protection Rating and Operating Environment
The external circuit has IP 34 protection, safeguarding against solid objects and splashing water, suitable for outdoor or damp environments. The internal circuit with IP 34 provides protection against dust and splashing water, increasing reliability within the enclosure. Operating temperature ranges are 10 °C to 55 °C (at 50 Hz) and 10 °C to 53 °C (at 60 Hz), enabling use in a wide range of environments. The storage temperature range of -40 °C to 70 °C allows flexible storage under various conditions.

Accessories and Expansions
Additional accessories such as filter mats, air duct systems, and quick-change frames extend the unit’s functionality. Networking via IoT Interface enables remote monitoring and control, especially in networked industrial environments. Using metal filters and condensate hoses can increase the unit’s lifespan and efficiency.

General
ModelRoof structure
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 2 kW, Cooling capacity L35 L35/60 Hz: 2.14 kW, Cooling capacity L35 L50/50 Hz: 1.58 kW, Cooling capacity L35 L50/60 Hz: 1.51 kW
Rated operating voltage115 V, 1~, 50 Hz/60 Hz
NoteThe rooftop cooling unit 3273.500 can be used for office applications due to its low noise level.
Rated current max.At 50 Hz: 15.8 A, At 60 Hz: 16 A
Inrush current (max.)At 50 Hz: 42.2 A, At 60 Hz: 31.1 A
Air performance (free blowing)Outer circuit: 1,760 m³/h, inner circuit: 470 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance ratio L35 L35 (EER) 50 Hz: 1.96, Cooling performance ratio L35 L35 (EER) 60 Hz: 1.69
Width597 mm
Height417 mm
Depth475 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.9 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.57 t
Electrical connection typePlug-in terminal block
Working time100 %
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Maximum operating temperature at 60 Hz53 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...53 °C
Rated power PelRated power L35 L35/50 Hz: 1.02 kW, Rated power L35 L35/60 Hz: 1.27 kW, Rated power L35 L50/50 Hz: 1.15 kW, Rated power L35 L50/60 Hz: 1.29 kW
Permissible operating pressure (p max.)28 bar
FuseTransformer protection switch: 14...20 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3385510, EAN: 4028177323261
