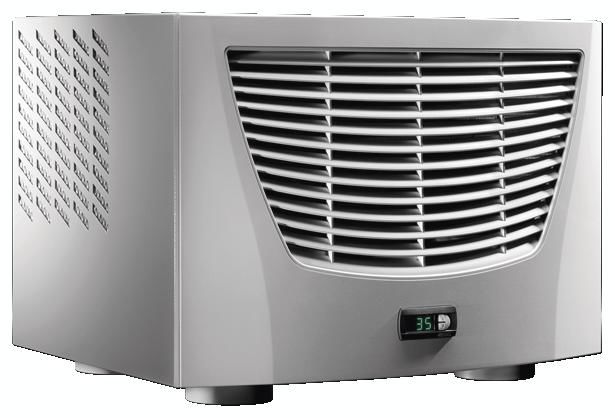

Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm
|
-7% 2.384,93 EUR 2.551,87 EUR |
|||||||||||
|
( 2.838,07 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Lieske Part No.: | 354015 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3385500 | ||||||||||
| UPC/EAN: | 4028177323278 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3385500:
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: Thanks to their low noise level, the roof-mounted cooling units 3273.500 and 3273.515 are also suitable for use in office applications
Packs of: 1 pc(s).
EAN: 4028177323278
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2 kW
L 35 L 35 at 60 Hz: 2.14 kW
L 35 L 50 at 50 Hz: 1.41 kW
L 35 L 50 at 60 Hz: 1.51 kW
Air throughput (unimpeded air flow): External circuit: 1760 m³/h
Internal circuit: 470 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 475 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 900 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: L 35 L 35 at 50 Hz: 0.96 kW
L 35 L 35 at 60 Hz: 1.14 kW
L 35 L 50 at 50 Hz: 1.07 kW
L 35 L 50 at 60 Hz: 1.23 kW
Rated current (max.): At 50 Hz: 5.9 A
At 60 Hz: 6.3 A
Start-up current max.: At 50 Hz: 19.7 A
At 60 Hz: 17.9 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.09
Weight/pack: 42 kg
Type: SK 3385.500
Questions & answers
What is the delivery time of Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm?
The article Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm is currently in stock
According to our experience the article is ready for dispatch within 2 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3385500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm always at the best possible price. We can give you a discount of 2% on Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Rittal 3385500 SK Blue e cooling unit, Roof-mounted, 2 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x475 mm we can offer you a price of 2.349,16 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
