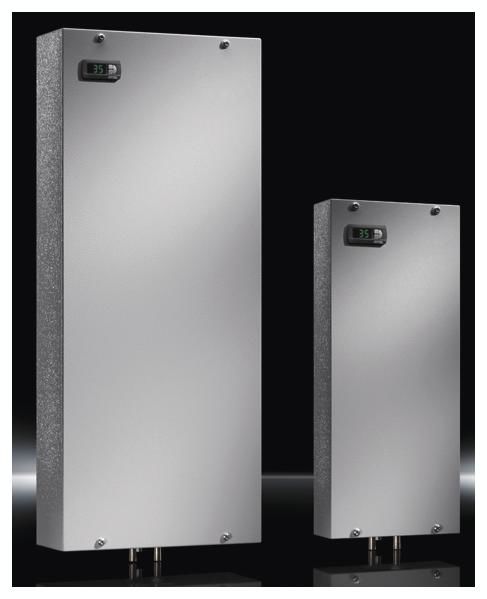

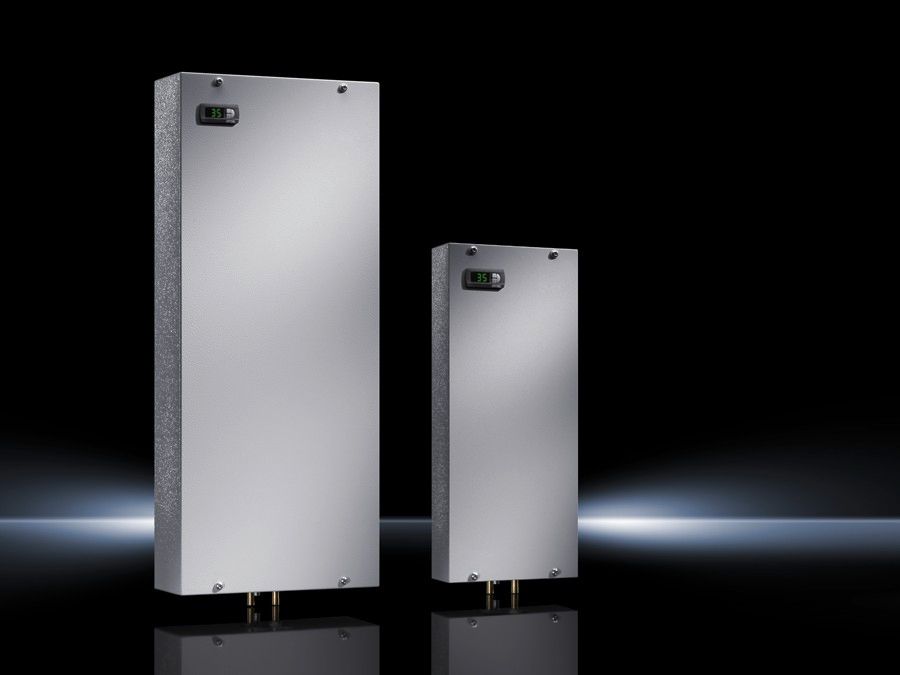

Rittal 3375540 Air/water heat exchangers Wall-mounted
|
-7% 1.979,33 EUR 2.117,88 EUR |
|||||||||||
|
( 2.355,40 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 602476 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3375540 | ||||||||||
| UPC/EAN: | 4028177496187 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3375540:
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Drilling template
Sealing and assembly parts
Note: Integral non-return valve for version with e-Comfort controller
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177496187
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 400 l/h: 5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 1490 m³/h
Internal circuit at 60 Hz: 1660 m³/h
Rated operating voltage: 400 V, 2~, 50 Hz/60 Hz
Dimensions: Width: 450 mm
Height: 1400 mm
Depth: 220 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Duty cycle: 100 %
Power consumption Pel: At 50 Hz: 178 W
At 60 Hz: 232 W
Rated current (max.): At 50 Hz: 0.8 A
At 60 Hz: 0.8 A
Pre-fuse: Transformer circuit-breaker: 3.5 A...5 A A
Permissible operating pressure (p. max.): 1 bar - 10 bar
Water connections: ½" connector sleeve
G ?" external thread
Weight/pack: 56 kg
Type: SK 3375.540
Questions & answers
What is the delivery time of Rittal 3375540 Air/water heat exchangers Wall-mounted?
The article Rittal 3375540 Air/water heat exchangers Wall-mounted is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3375540 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3375540 Air/water heat exchangers Wall-mounted always at the best possible price. We can give you a discount of 2% on Rittal 3375540 Air/water heat exchangers Wall-mounted if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Rittal 3375540 Air/water heat exchangers Wall-mounted we can offer you a price of 1.919,95 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
