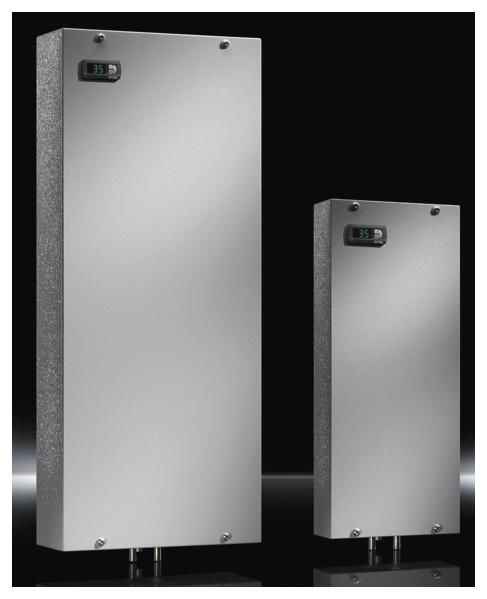

Rittal SK 3373140 wall mounting 400V 2000W RTT air/water heat exchanger basic reg.

SK air/water heat exchanger, wall mounting, 2 kW, 400 V, 2~, 50/60 Hz, WHT: 400x950x145 mm, basic controller
Product description
Version: Water-carrying parts copper/brass (Cu/CuZn)
Description: For use in harsh environments and Temperature ranges up to +70 °C. Convenient mounting options and flexible water connection options. Extension or full installation possible.
Color: RAL 7035
Protection class IP according to IEC 60 529: IP 55
Scope of delivery: Wired ready for connection
Drilling template
Sealing and fastening material
Note: Integrated check valve for version with e-Comfort controller
Total cooling capacity: L 35 W 10 at 400 l/h: 2 kW
Air output (free-blowing) : Internal circuit at 50 Hz: 880 m³/h
Internal circuit at 60 Hz: 950 m³/h
Rated operating voltage: 400 V, 2~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 950 mm
Depth: 145 mm
Temperature control: Basic controller ( Factory setting +35 °C)
Temperature range: Operation (ambient): +1 °C...+70 °C
Setting range: +20 °C...+55 °C
Water flow: +1 °C...+30 ° C
Refrigerant/cooling medium: Cooling medium: Water (see internet for specification)
Duty cycle: 100%
Rated power Pel: At 50 Hz: 110 W
At 60 Hz: 140 W
Rated current max.: At 50 Hz: 0.28 A
At 60 Hz: 0. 35 A
back-up fuse: transformer circuit breaker: 3.5 A...5 A
Permissible operating pressure (p max.): 1 bar - 10 bar
Water connections: ½" hose nozzle
G ?" AG
Packaging unit: 1 piece
Weight/PU: 23 kg
EAN: 4028177495968
Customs tariff number: 84158300
ETIM 6.0: EC002515
ETIM 5.0: EC002515
eCl@ss 8.0/8.1: 27180712 eCl@ss 7.0/7.1: 27180712
eCl@
ss 6.0/6.1: 271 80712
eCl@ss 5.1/5.1.4: 27180712
Type: SK 3373140
