Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400-

Your rating:
Average rating
product review for Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400-
( 4.3 / 5 ) 3 ratings

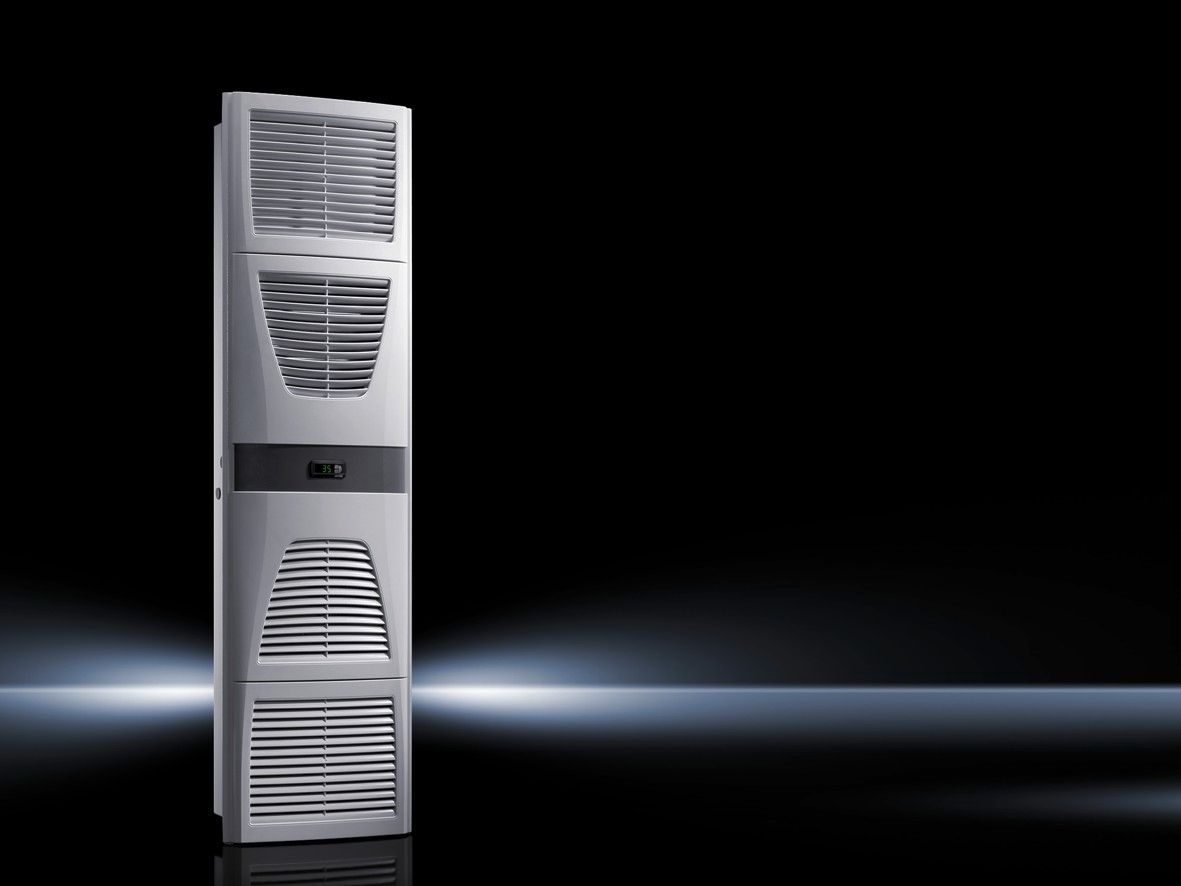

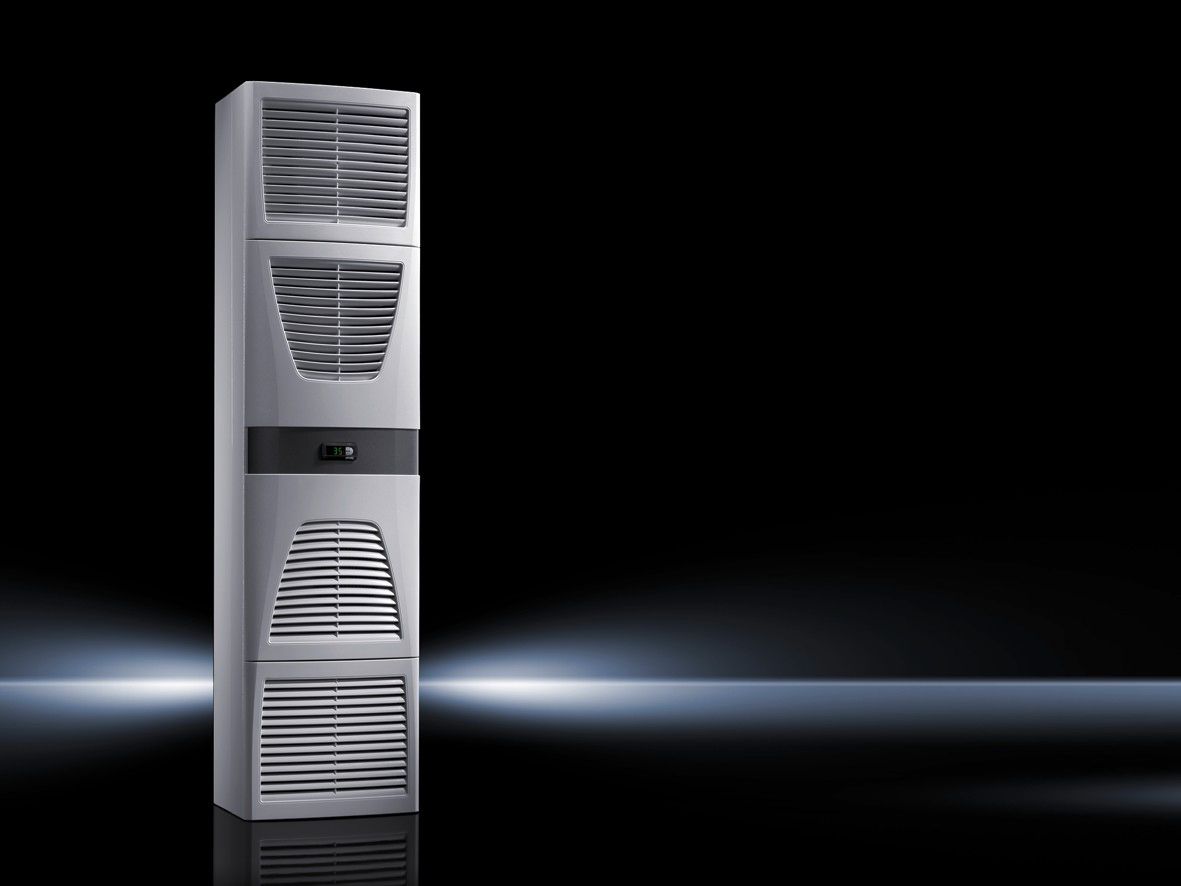

Rittal 3366545
This image may differ from the desired article.
Rittal 3366545Rittal 3366545Rittal 3366545
2.120,60 EUR
( 2.523,51 EUR incl. VAT )
≈ £1,774.94  |  ≈ $2,330.54
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400-
Datasheet:file_download Download
Lieske Part No.:2094574
Mfg Part No: 3366545
UPC/EAN: 4028177977594
Weight:58.5 kg
Type:SK 3366545

Product information for Rittal 3366545:

The Rittal SK 3366545 is a wall-mounted cooling unit of the Blue e series, designed for climate control of enclosures and electronic devices in industrial environments. It features a total cooling capacity of 1.25 kW at an operating temperature of 35 °C (L35) and an ambient temperature of 35 °C (L35), according to DIN EN 14511. The cooling capacity is 1.25 kW at both 50 Hz and 60 Hz, while at higher ambient temperatures (L50), the capacity reduces to 0.8 kW (50 Hz) and 0.92 kW (60 Hz). The unit is designed for a rated operating voltage of 400 V, 3~, 50 Hz, as well as 460 V, 3~, 60 Hz, making it suitable for international applications. The maximum rated current draw is 1.9 A at 50 Hz and 1.8 A at 60 Hz, with a starting current of up to 6 A in both frequency ranges.

Applications
This cooling unit is designed for use in industrial enclosures, where a constant internal temperature between 20 °C and 50 °C can be set. The factory default setting for temperature control is +35 °C, with the e-Comfort controller enabling precise regulation. The operating temperature range of the unit is from 10 °C to 55 °C, making it suitable for various industrial environments. The storage temperature can range from -40 °C to 70 °C, ensuring flexible storage and transportability.

Functions and Equipment in Detail
The unit is designed as a flat wall-mounted version, with dimensions of 435 mm (width) × 1590 mm (height) × 205 mm (depth). It is made of sheet steel and painted in RAL 7035. The delivery includes a pre-wired unit with a plug-in connection terminal strip, a drilling template, mounting hardware, integrated electrical condensate evaporation, and mounting hardware for the installation mounting type. The condenser is coated with a hydrophobic RiNano coating, which improves condensate drainage and simplifies maintenance. The integrated electrical condensate evaporation ensures that the generated condensate is evaporated electrically, eliminating the need for an external drain.

Technology Explained Simply
The cooling capacity is achieved using refrigerant (R-513A) with a quantity of 0.7 kg. The refrigerant has a Global Warming Potential (GWP) of 631, equivalent to 0.44 t of CO₂. The air flow rate is 910 m³/h in the external circuit and 860 m³/h in the internal circuit, ensuring efficient air circulation within the enclosure. Energy efficiency is described by the Energy Efficiency Ratio (EER), which is 1.56 at 50 Hz and 1.39 at 60 Hz. The rated power (Pel) is 0.7 kW (50 Hz) or 0.8 kW (60 Hz) under L35/L35 conditions. The maximum operating pressure is 28 bar, and the fuse protection is a transformer protection switch rated at 2 A.

Compatibility and Accessories
The cooling unit can be networked via the Blue e IoT adapter, enabling connection to the IoT interface. This is available for units with a cooling capacity of 500 W and equipped with an e-Comfort controller. Compatible accessories include the SK condensate hose 12 x 2 mm (length 10 m), the frame for cooling unit Blue e SK 3366, the SK Master/Slave cable for SK-Bus system, and filter solutions such as metal filters and filter mats for the specified SK models. An optional frame (item 3377.000) can be mounted to give the cooling unit a closed appearance.

Installation and Mounting
Mounting is done as a wall-mounted installation, with the drilling template and mounting hardware included in the delivery. The unit is pre-wired, simplifying installation. The integrated electrical condensate evaporation eliminates the need for an external drain, increasing installation flexibility. The protection rating IP 34 (external circuit) and IP 34 (internal circuit) according to EN 60 529, as well as UL Type 12 according to NEMA, ensure safe operation in industrial environments.

Operational Advantages
The unit offers high energy efficiency, particularly at 50 Hz with an EER of 1.56. The integrated condensate evaporation reduces maintenance effort, as no drain is required. The networkable functionality via the Blue e IoT adapter enables remote monitoring and control. The robust construction from sheet steel and high protection rating ensure reliable performance in demanding environments. The flat design optimizes space requirements within the enclosure.

Protection Rating and Environmental Conditions
The IP 34 rating for the external circuit protects against solid objects larger than 2.5 mm and against splashing water from any direction. The internal circuit is rated IP 34, providing protection against dust and splashing water. The NEMA UL Type 12 rating offers protection against dust, splashing water, and light spray, suitable for industrial applications. The operating temperature range of 10 °C to 55 °C allows use in a wide range of applications.

Refrigerant and Environmental Impact
The refrigerant R-513A used has a GWP of 631, representing a reduction compared to older refrigerants such as R-134a. The quantity is 0.7 kg, equivalent to 0.44 t of CO₂. The use of R-513A complies with the requirements of the F-Gas Regulation and is approved for use in climate control systems in industrial applications.

General
ModelWall mounting, Flat
Materialsteel sheet
ColourRAL 7035
Scope of deliveryPre-wired with terminal block (pluggable), drilling template, mounting hardware, integrated electrical condensate evaporation, mounting hardware for flush mounting, evaporator with hydrophobic RiNano coating
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 1.25 kW, cooling capacity L35 L35/60 Hz: 1.25 kW, cooling capacity L35 L50/50 Hz: 0.8 kW, cooling capacity L35 L50/60 Hz: 0.92 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
Note on part numberWhen installing the cooling unit, the frame 3377.000 including mounting material can be installed. This gives the cooling unit a closed appearance.
Rated current max.At 50 Hz: 1.9 A, At 60 Hz: 1.8 A
Inrush current (max.)At 50 Hz: 6 A, At 60 Hz: 6 A
Air performance (free blowing)Outer circuit: 910 m³/h, inner circuit: 860 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 50 Hz: 1.56, Cooling capacity factor L35 L35 (EER) 60 Hz: 1.39
Special versionFlat
Width435 mm
Height1.590 mm
Depth205 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
NEMA degree of protectionUL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 0.7 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.44 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.7 kW, Rated power L35 L35/60 Hz: 0.8 kW, Rated power L35 L50/50 Hz: 0.8 kW, Rated power L35 L50/60 Hz: 0.92 kW
Permissible operating pressure (p max.)28 bar
FuseTransformer protection switch: 2 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3366545, EAN: 4028177977594

Questions & answers

What is the delivery time of Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400-?

The article Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400- is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3366545 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400- always at the best possible price. We can give you a discount of 2% on Rittal 3366545 SK cooling unit Blue e, wall-mounted, flat, 1.25 kW, 400- if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
