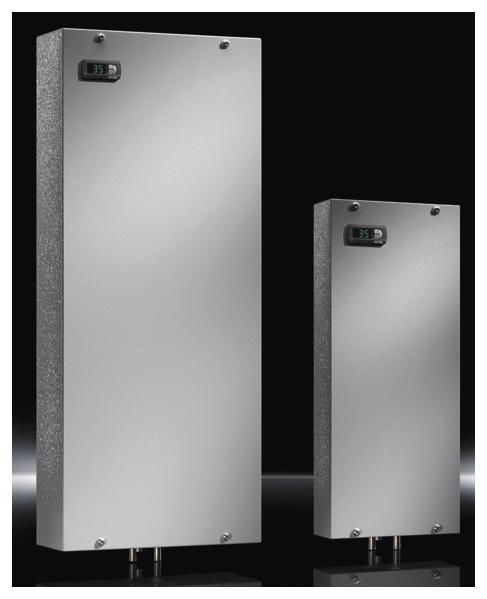

Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller
|
-7% 794,98 EUR 850,62 EUR |
|||||||||||
|
( 946,03 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 977450 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3363500 | ||||||||||
| UPC/EAN: | 4028177495647 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3363500:
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Drilling template
Sealing and assembly parts
Note: Integral non-return valve for version with e-Comfort controller
Packs of: 1 pc(s).
EAN: 4028177495647
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 400 l/h: 0.5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 290 m³/h
Internal circuit at 60 Hz: 345 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 120 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Duty cycle: 100 %
Power consumption Pel: At 50 Hz: 37 W
At 60 Hz: 38 W
Rated current (max.): At 50 Hz: 0.18 A
At 60 Hz: 0.18 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Permissible operating pressure (p. max.): 1 bar - 10 bar
External transformer: yes
Water connections: ½" connector sleeve
G ?" external thread
Weight/pack: 8 kg
Type: SK 3363.500
Questions & answers
What is the delivery time of Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller?
The article Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3363500 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller always at the best possible price. We can give you a discount of 2% on Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 3 pieces of Rittal 3363500 SK Air/water heat exchanger, Wall-mounted, 0.5 kW, 230 V, 1~, 50/60 Hz, WHD: 280x550x120 mm, e-Comfort controller we can offer you a price of 771,13 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
