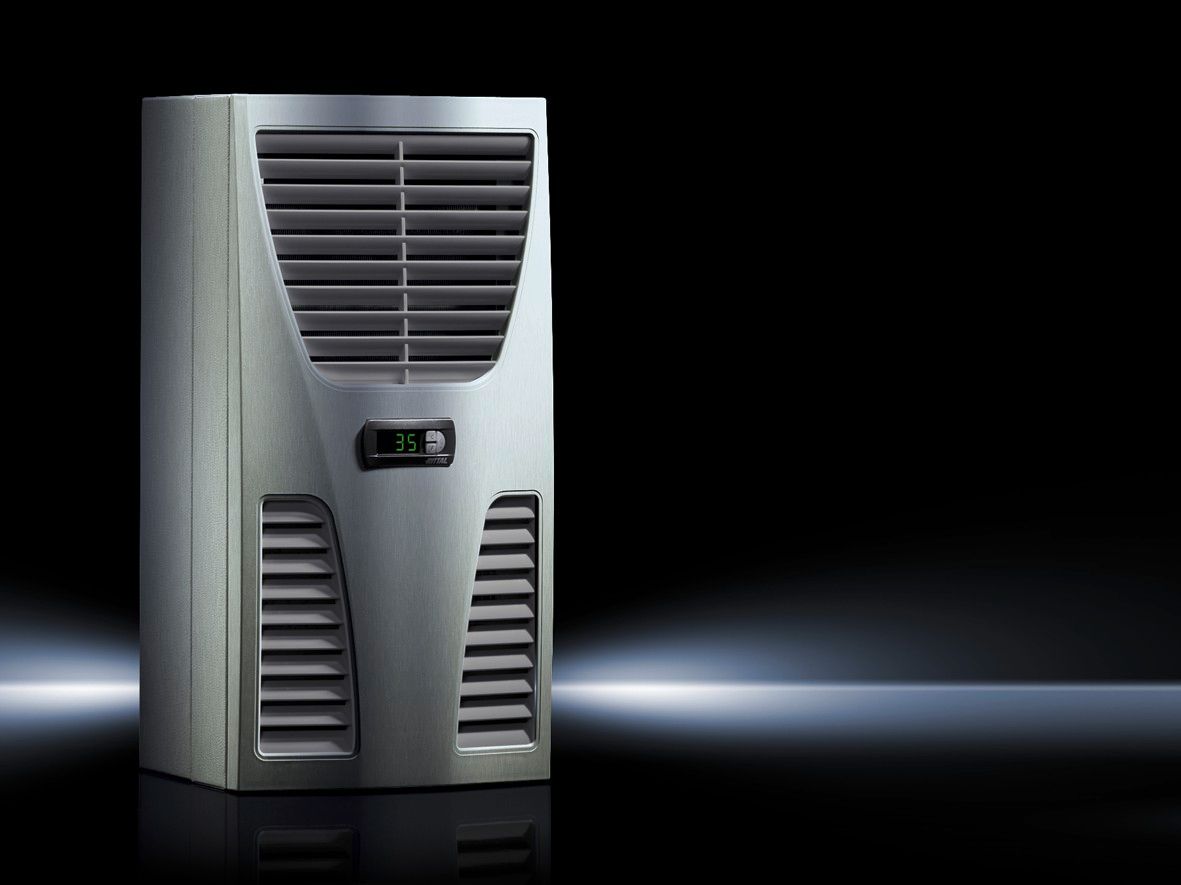

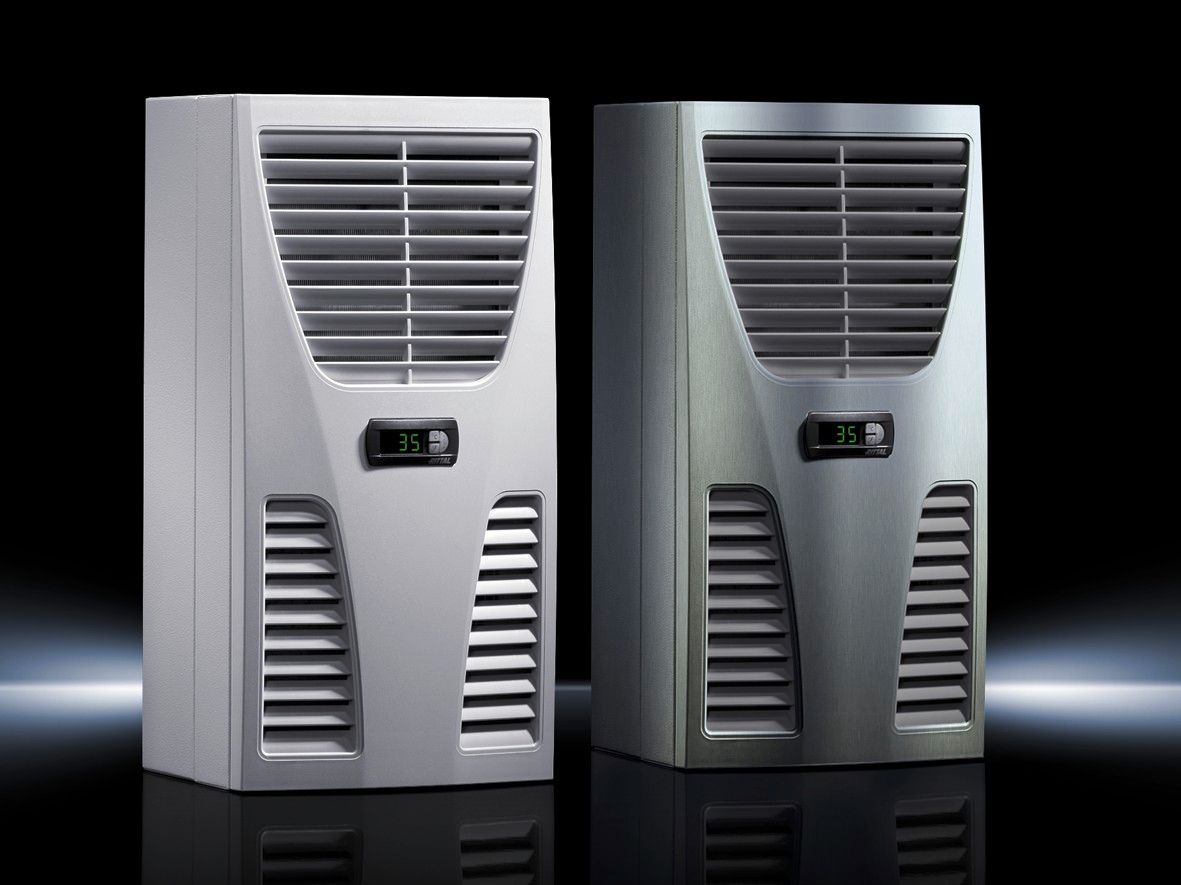

Rittal 3361640 RTT Blue e cooling unit in stainless steel, wall-mounted, 750 W, Comf
|
2.979,24 EUR 3.102,49 EUR |
|
|
( 3.545,30 EUR incl. VAT ) ≈ £2,493.62 | ≈ $3,274.18 plus delivery charges: 235,00 € |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 2144077 |
| Mfg Part No: | 3361640 |
| UPC/EAN: | 4028177433779 |
| Weight: | 26.675 kg |
| Type: | SK 3361640 |
Product information for Rittal 3361640:
Applications
This cooling unit is designed for use in industrial environments where constant temperature inside the enclosure is required to ensure the proper function of electronic components. It is particularly suitable for installations with high heat generation, such as in automation technology, manufacturing industry, or energy systems. The operating temperature range is between 10 °C and 55 °C, with a maximum operating temperature of 52 °C at 60 Hz. Storage temperature ranges extend from -40 °C to 70 °C, enabling flexible storage even under extreme conditions.
Functions and Equipment in Detail
The unit features an e-Comfort controller, factory-set to +35 °C, covering a temperature range from 20 °C to 52 °C. Temperature control is automatic, ensuring constant internal temperature within the enclosure. The condenser is coated with a hydrophobic RiNano coating, which reduces condensation formation and simplifies maintenance. Airflow is 480 m³/h in the external circuit and 600 m³/h in the internal circuit, ensuring efficient air circulation. Cooling capacity is measured according to DIN EN 14511, with values for L35 L35/50 Hz and L35 L35/60 Hz each being 0.82 kW.
Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has a Global Warming Potential (GWP) of 631 and contains 0.28 kg within the unit. The CO₂ equivalent is 0.18 t. Energy efficiency is described by the Energy Efficiency Ratio (EER), which is 1.95 at 50 Hz and 1.78 at 60 Hz. This indicates that the unit operates more efficiently at 50 Hz. The rated power (Pel) is 0.42 kW (50 Hz) and 0.46 kW (60 Hz) under L35 L35 operating conditions. The maximum rated current is 1.2 A at 50 Hz and 1.4 A at 60 Hz, while the maximum starting current is 3.1 A (50 Hz) and 3.3 A (60 Hz). The fuse for the transformer is rated at 6.3 to 10 A.
Compatibility and Accessories
The cooling unit can be networked via the IoT Interface using the Blue e IoT Adapter, which is available for cooling units with 500 W cooling capacity or more and equipped with an e-Comfort controller. Compatible accessories include, among others, an electric condensate evaporator, filter mats, a condensate hose, and metal filters for cooling units. Installation is done by wall mounting on the enclosure, with the drilling template and mounting materials included in the delivery. An external toroidal transformer is also part of the delivery and must be connected, as the technical data for the unit apply under this condition.
Installation and Mounting
Installation is performed by wall mounting at the designated location on the enclosure. The drilling template facilitates precise alignment of the mounting holes. The unit is pre-wired, with a plug-in terminal strip provided. Connection to the external toroidal transformer is required to achieve full technical specifications. Protection rating IP 34 (external circuit) and IP 34 (internal circuit) according to EN 60 529, as well as UL Type 12 according to NEMA, ensure sufficient protection against dust, splashing water, and mechanical impacts.
Operational Advantages
The Rittal SK 3361640 provides reliable and energy-efficient cooling for enclosures. The use of stainless steel 1.4301 ensures high mechanical strength and corrosion resistance. The hydrophobic RiNano coating on the condenser reduces condensation formation and reduces maintenance requirements. Integrated temperature control via the e-Comfort controller enables precise temperature regulation. Network capability via the IoT Interface offers additional options for monitoring and controlling the unit in networked systems. The maximum operating pressure resistance is 28 bar, ensuring safety under operating conditions.
| General | |
| Model | Wall surface mounted |
| Material | Stainless steel 1.4301 (AISI 304) |
| Colour | RAL 9007 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, external toroidal transformer |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 0.82 kW, cooling capacity L35 L35/60 Hz: 0.82 kW, cooling capacity L35 L50/50 Hz: 0.59 kW, cooling capacity L35 L50/60 Hz: 0.6 kW |
| Rated operating voltage | 400 V, 2~, 50 Hz/60 Hz |
| Note on part number | The technical data for the wall-mounted cooling unit 3361.x40 apply with connected external transformer |
| Rated current max. | At 50 Hz: 1.2 A, At 60 Hz: 1.4 A |
| Inrush current (max.) | At 50 Hz: 3.1 A, At 60 Hz: 3.3 A |
| Air performance (free blowing) | External circuit: 480 m³/h, internal circuit: 600 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration coefficient L35 L35 (EER) 50 Hz: 1.95, Refrigeration coefficient L35 L35 (EER) 60 Hz: 1.78 |
| Width | 280 mm |
| Height | 550 mm |
| Depth | 280 mm |
| Degree of protection IP according to EN 60 529 | External circuit: IP 34, internal circuit: IP 54 |
| NEMA degree of protection | UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-513A, quantity: 0.28 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.18 t |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Maximum operating temperature at 60 Hz | 52 °C |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...52 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.42 kW, Rated power L35 L35/60 Hz: 0.46 kW, Rated power L35 L50/50 Hz: 0.48 kW, Rated power L35 L50/60 Hz: 0.51 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | Transformer protection switch: 6.3...10 A |
| Transformer depth | 65 mm |
| Transformer diameter | 126 mm |
