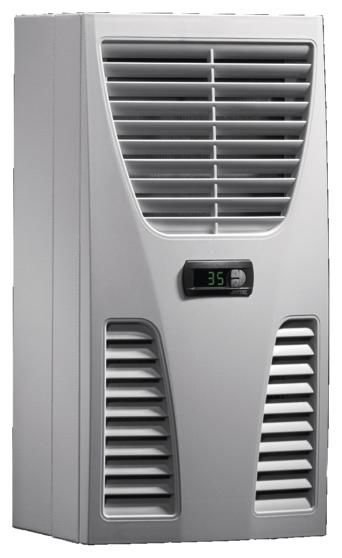

Rittal 3361500 SK Blue e cooling unit, Wall-mounted, 0.85 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 280x550x280 mm
|
-7% 1.447,68 EUR 1.549,02 EUR |
|||||||||||
|
( 1.722,74 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 104186 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3361500 | ||||||||||
| UPC/EAN: | 4028177429536 | ||||||||||
| Weight: | 22.5 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3361500:
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429536
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.85 kW
L 35 L 35 at 60 Hz: 0.89 kW
L 35 L 50 at 50 Hz: 0.67 kW
L 35 L 50 at 60 Hz: 0.67 kW
Air throughput (unimpeded air flow): External circuit: 550 mo/h
Internal circuit: 230 mo/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Note for frequency: Tu max. = 53°C/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 280 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 280 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.41 kW
L 35 L 35 at 60 Hz: 0.44 kW
L 35 L 50 at 50 Hz: 0.47 kW
L 35 L 50 at 60 Hz: 0.5 kW
Rated current (max.): At 50 Hz: 2.7 A
At 60 Hz: 2.7 A
Start-up current max.: At 50 Hz: 6 A
At 60 Hz: 9.6 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.08
Weight/pack: 22 kg
Type: SK 3361.500
