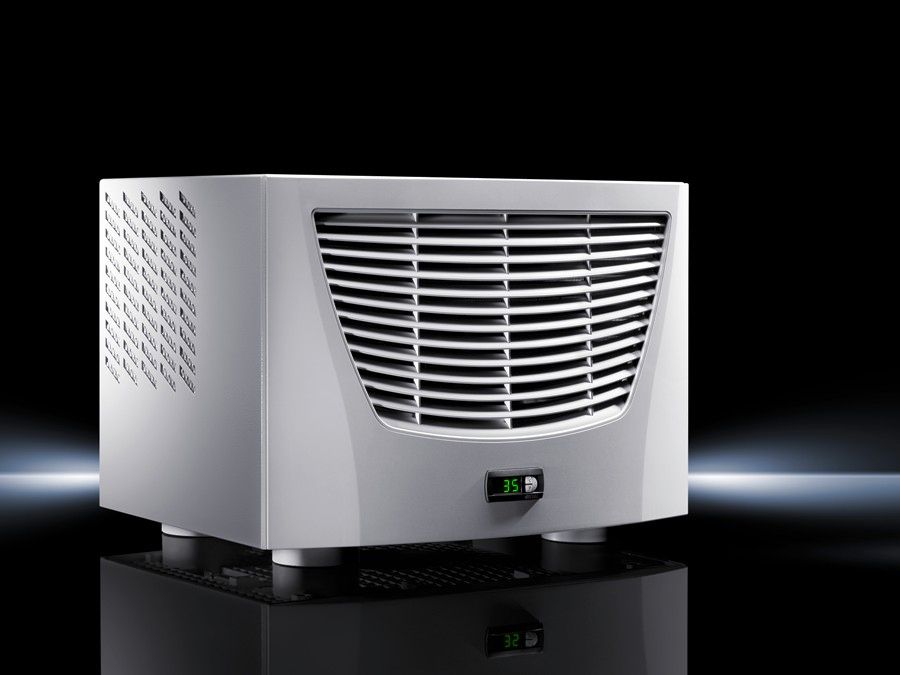

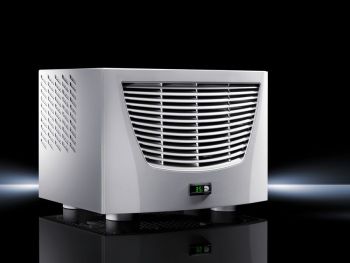

Rittal 3359640 RTT Blue e cooling unit in stainless steel roof 750 W Comfo

Your rating:
Average rating
product review for Rittal 3359640 RTT Blue e cooling unit in stainless steel roof 750 W Comfo
( 5 / 5 ) 1 ratings
Rittal 3359640
This image may differ from the desired article.
2.192,27 EUR 2.282,96 EUR
( 2.608,80 EUR incl. VAT )
≈ £1,834.93  |  ≈ $2,409.30
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3359640 RTT Blue e cooling unit in stainless steel roof 750 W Comfo
Datasheet:file_download Download
Lieske Part No.:576825
Mfg Part No: 3359640
UPC/EAN: 4028177433731
Weight:37.795 kg
Type:SK 3359640

Product information for Rittal 3359640:

The Rittal SK 3359640 is a roof-mounted cooling unit of the TopTherm Blue e series, specifically designed for climate control of enclosures and industrial housings. It features a cooling capacity of up to 0.77 kW at 50 Hz and an operating voltage of 400 V, 2~, 50 Hz/60 Hz. The unit is made of stainless steel 1.4301 (AISI 304) and finished in RAL 9007, ensuring high corrosion resistance and long service life even in demanding environments. Dimensions are 597 mm (width) × 417 mm (height) × 380 mm (depth), allowing flexible integration into existing enclosure constructions.

Applications
This cooling unit is suitable for use in industrial plants, such as in manufacturing, automation technology, or power engineering. Due to its low noise level, it can also be used in office or administrative environments where disturbance-free climate control is required. The operating temperature range is between 10 °C and 55 °C, ensuring reliable performance in a wide range of environments. The storage temperature range extends from -40 °C to 70 °C, enabling safe storage under extreme conditions.

Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to +35 °C, enabling precise temperature control within the range of 20 °C to 55 °C. The electric condensate evaporation ensures that condensate formed within the unit evaporates and does not need to be drained, simplifying installation. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and reducing contamination. The unit is pre-wired and includes a plug-in terminal strip, accelerating installation. The delivery includes a drilling template and mounting hardware.

Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 0.77 kW at 50 Hz and L35 operation. Energy efficiency is expressed by the coefficient of performance (EER), which is 2.14 at 50 Hz, indicating efficient cooling with moderate power consumption. The air flow rate is 800 m³/h in the external circuit and 585 m³/h in the internal circuit, ensuring sufficient air circulation within the enclosure. The refrigerant R-513A is used in a quantity of 0.4 kg, with a Global Warming Potential (GWP) of 631. The maximum operating pressure is 28 bar, ensuring system safety under load. The duty cycle is 100 %, meaning the unit can be operated continuously.

Compatibility and Accessories
The cooling unit can be networked via the IoT interface using the Blue e IoT adapter, enabling remote monitoring and control. It is compatible with the SK-Bus system and can be connected via a master/slave cable. For air guidance, air duct systems and air duct adapters are available. Filter mats and metal filters for the SK 3382.../3383... series, as well as a condensate hose (12 x 2 mm, length 10 m), can be used as accessories to optimize air quality and maintenance. Covers for the internal air outlet and quick-change frames facilitate installation and maintenance.

Mounting and Installation
Mounting is performed on the enclosure roof. The drilling template and mounting hardware included in the delivery simplify installation. Electrical connection is made via a plug-in terminal strip, enabling secure and quick connection. The pre-fuse is a transformer protection switch with a rated value of 6.3 to 10 A, protecting against overloads.

Operational Advantages
The unit is characterized by high reliability, low maintenance requirements, and long service life. The integrated electric condensate evaporation reduces maintenance, as no condensate needs to be drained. The e-Comfort controller enables precise temperature control, enhancing the operational safety of installed electronics. The networkable functionality via the IoT interface offers additional options for remote monitoring and control, which is particularly advantageous in large installations. The protection rating IP 34 for the external circuit and IP 34 for the internal circuit ensure sufficient protection against dust and water, increasing operational safety in industrial environments.

General
ModelRoof structure
MaterialStainless steel 1.4301 (AISI 304)
ColourRAL 9007
Scope of deliveryCondenser with hydrophobic RiNano coating, Integrated electric condensate evaporation, Pre-wired (pluggable terminal block), Drilling template, Mounting hardware
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 0.77 kW, cooling capacity L35 L35/60 Hz: 0.75 kW, cooling capacity L35 L50/50 Hz: 0.52 kW, cooling capacity L35 L50/60 Hz: 0.47 kW
Rated operating voltage400 V, 2~, 50 Hz/60 Hz, 400 V AC
NoteThe rooftop cooling unit 3273.500 can be used for office applications due to its low noise level.
Rated current max.At 50 Hz: 1.6 A, At 60 Hz: 2.1 A
Inrush current (max.)At 50 Hz: 5.4 A, At 60 Hz: 5.2 A
Air performance (free blowing)External circuit: 800 m³/h, internal circuit: 585 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 50 Hz: 2.14, Cooling capacity factor L35 L35 (EER) 60 Hz: 1.79
Width597 mm
Height417 mm
Depth380 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.4 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.25 t
Electrical connection typePlug-in terminal block
Working time100 %
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...55 °C
Rated power PelRated power L35 L35/50 Hz: 0.36 kW, rated power L35 L35/60 Hz: 0.42 kW, rated power L35 L50/50 Hz: 0.49 kW, rated power L35 L50/60 Hz: 0.48 kW
Permissible operating pressure (p max.)28 bar
FuseTransformer protection switch: 6.3...10 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3359640, EAN: 4028177433731
