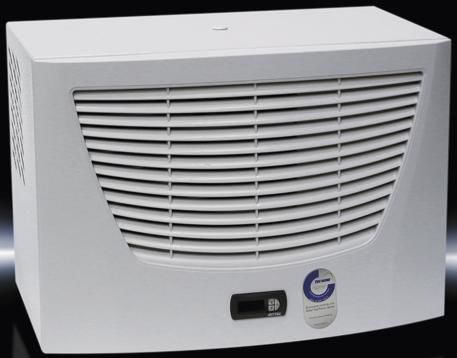

Rittal 3359500 SK Blue e cooling unit, Roof-mounted, 0.77 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 597x417x380 mm
|
-7% 1.541,28 EUR 1.649,17 EUR |
|||||||||||
|
( 1.834,12 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline | |||||||||||
| In Stock: 1 pieces | |||||||||||
| Lieske Part No.: | 612412 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3359500 | ||||||||||
| UPC/EAN: | 4028177429611 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3359500:
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: Thanks to their low noise level, the roof-mounted cooling units 3273.500 and 3273.515 are also suitable for use in office applications
Packs of: 1 pc(s).
EAN: 4028177429611
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.77 kW
L 35 L 35 at 60 Hz: 0.79 kW
L 35 L 50 at 50 Hz: 0.52 kW
L 35 L 50 at 60 Hz: 0.47 kW
Air throughput (unimpeded air flow): External circuit: 800 m³/h
Internal circuit: 585 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 380 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 400 g
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: L 35 L 35 at 50 Hz: 0.33 kW
L 35 L 35 at 60 Hz: 0.43 kW
L 35 L 50 at 50 Hz: 0.49 kW
L 35 L 50 at 60 Hz: 0.42 kW
Rated current (max.): At 50 Hz: 2.8 A
At 60 Hz: 3.7 A
Start-up current max.: At 50 Hz: 9.2 A
At 60 Hz: 9 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.28
Weight/pack: 32 kg
Type: SK 3359.500
