Rittal 3355720 Electrical condensate evaporation for roof-mounted cooling unit external retail

Your rating:
Average rating
product review for Rittal 3355720 Electrical condensate evaporation for roof-mounted cooling unit external retail
( 4.7 / 5 ) 9 ratings
Rittal 3355720
This image may differ from the desired article.
Rittal 3355720Rittal 3355720Rittal 3355720Rittal 3355720
92,46 EUR
( 110,03 EUR incl. VAT )
≈ £77.39  |  ≈ $101.61
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3355720 Electrical condensate evaporation for roof-mounted cooling unit external retail
Datasheet:file_download Download
Lieske Part No.:1597983
Mfg Part No: 3355720
UPC/EAN: 4028177931787
Weight:0.5 kg
Type:SK 3355720

Product information for Rittal 3355720:

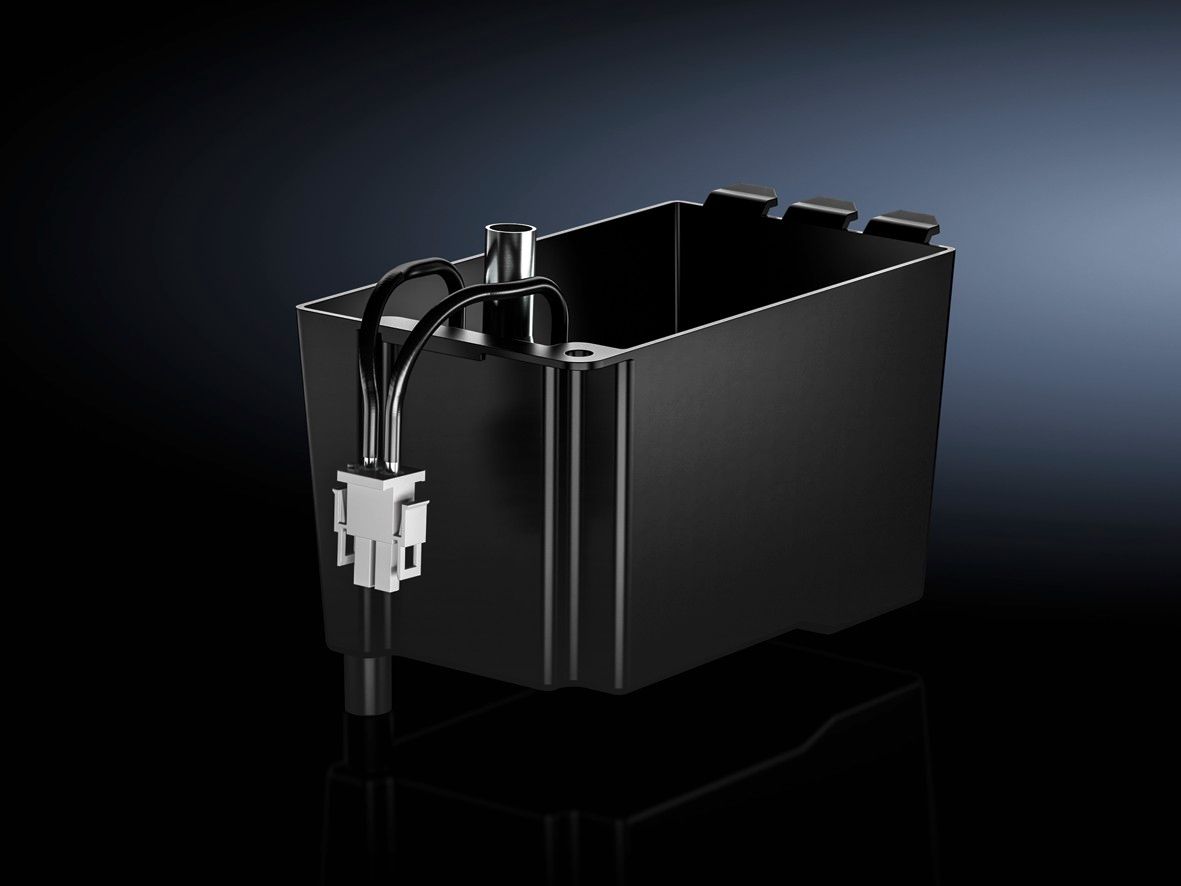

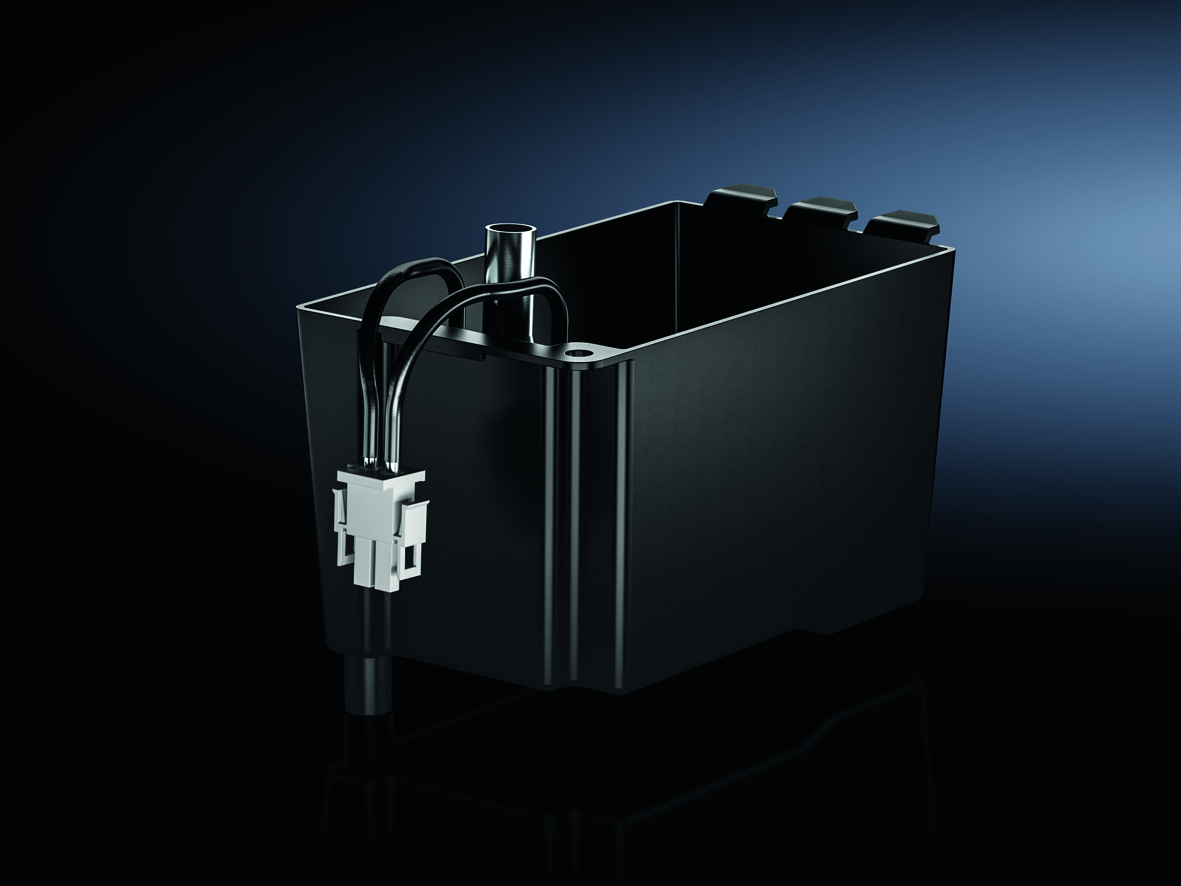

The Rittal SK 3355720 is an electrical condensate evaporation unit for roof-mounted cooling units of the Blue e+ type. It is designed for the efficient removal of condensate water generated during the cooling of enclosures. The unit is mounted tool-free to the underside of the cooling unit and is not visible from the outside, supporting aesthetic integration into industrial environments. Evaporation is achieved through electric heating, whereby the condensate water is vaporized and released into the ambient air via the cooling unit’s air outlet.

Applications
This condensate evaporation unit is specifically designed for use with roof-mounted cooling units with article numbers 3185.730 and 3485.730. It is used in industrial installations where enclosures are temperature-regulated by cooling units and condensate is produced. The application is suitable for environments requiring continuous and reliable removal of condensate to prevent damage to electrical components.

Functions and Equipment in Detail
The evaporation unit is made of plastic and is finished in RAL 9005 (black). The evaporation capacity is 100 ml per hour, sufficient to handle condensate generated under normal operating load. The unit is powered via the cooling unit, with a rated operating voltage of 380 V (DC). Installation is tool-free, enabling quick and easy mounting without additional tools.

Technology Explained Simply
The condensate evaporation unit uses thermal energy generated by the electric heater to convert liquid condensate into water vapor. This vapor is released into the ambient air via the cooling unit’s air outlet. The technology prevents water accumulation inside the enclosure, which can occur particularly in humid environments or during temperature fluctuations. The operating temperature range is between 5 °C and 60 °C, enabling use in a wide range of industrial environments.

Compatibility and Accessories
The condensate evaporation unit is exclusively intended for roof-mounted cooling units with article numbers 3185.730 and 3485.730. It is mounted directly to the underside of the cooling unit. The delivery includes the electrical condensate evaporation unit, a transport securing screw, and a conduit bushing. These components ensure safe and correct installation.

Mounting and Installation

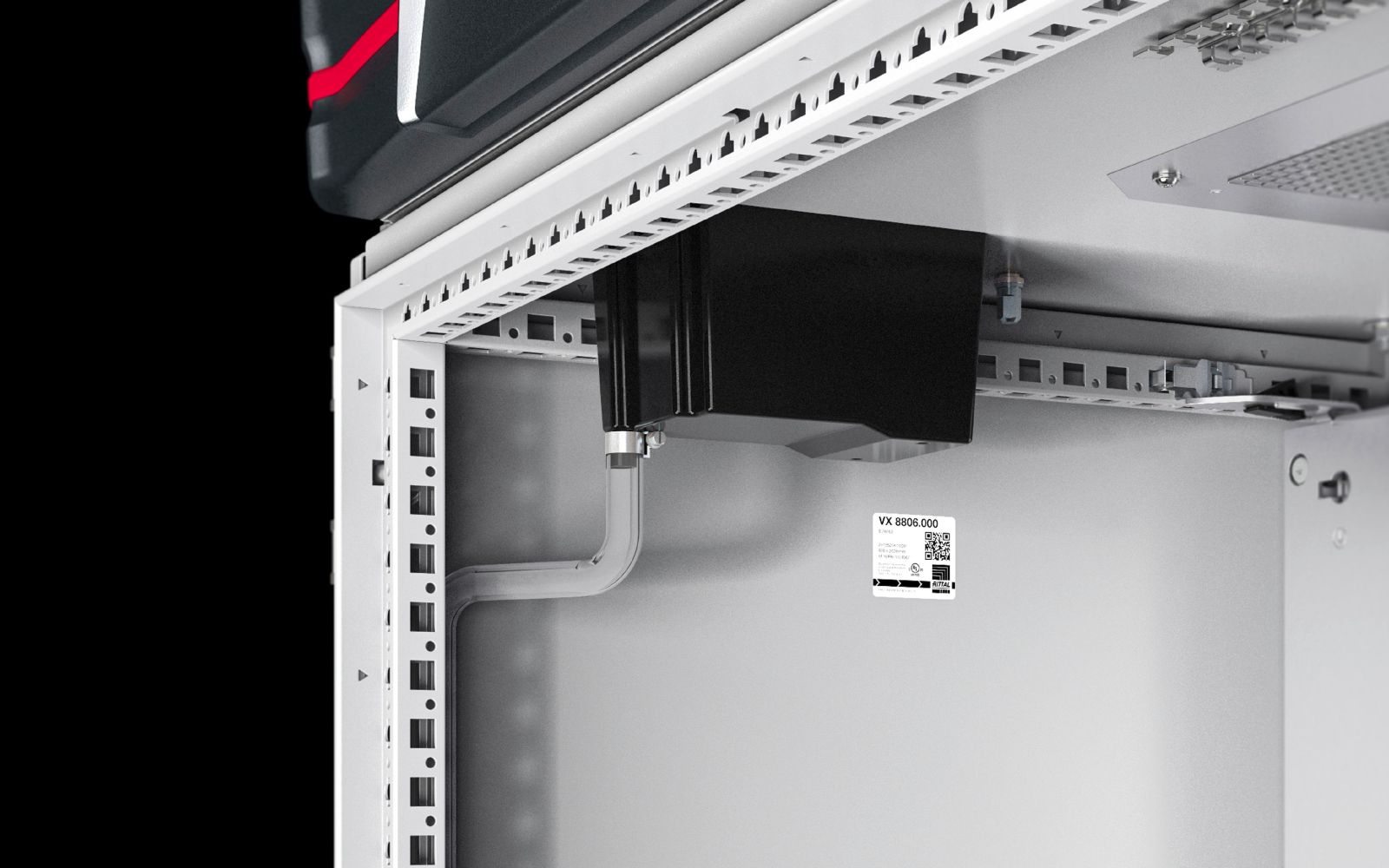

Mounting is tool-free, requiring no additional tools. The unit is attached to the underside of the cooling unit, with the conduit bushing ensuring correct cable routing. The transport securing screw ensures secure fastening during transportation. Installation is simple and does not require special skills.

Operational Advantages
The condensate evaporation unit prevents water accumulation inside the enclosure, extending the service life of electrical components and enhancing operational safety. The tool-free mounting and concealed installation on the underside of the cooling unit ensure a clean and professional appearance. Evaporation occurs continuously and reliably as long as the cooling unit is in operation. Dimensions of 89 mm (width), 121 mm (height), and 158 mm (depth) allow for compact integration into existing systems.

General
MaterialPlastic
ColourRAL 9005
Scope of deliveryElectrical condensate evaporation, transport safety screw, conduit bushing
Evaporation performance100 ml/h
NotePower supply is provided by the cooling unit
Suitable for part no.3185.730 / 3485.730
Width89 mm
Height121 mm
Depth158 mm
Operating temperature range5 °C...60 °C
Rated operating voltage380 V (DC)


Product data sheet
Datasheet for Rittal 3355720, EAN: 4028177931787
