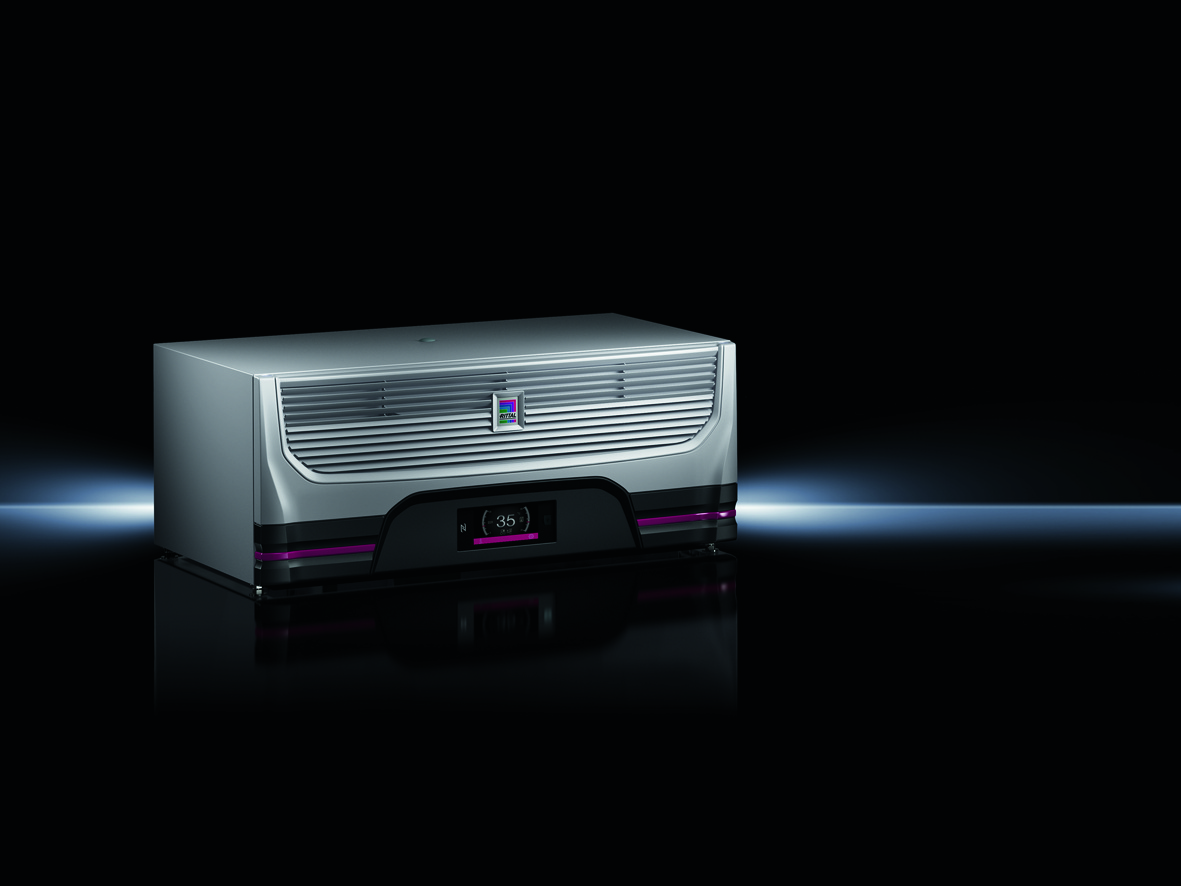

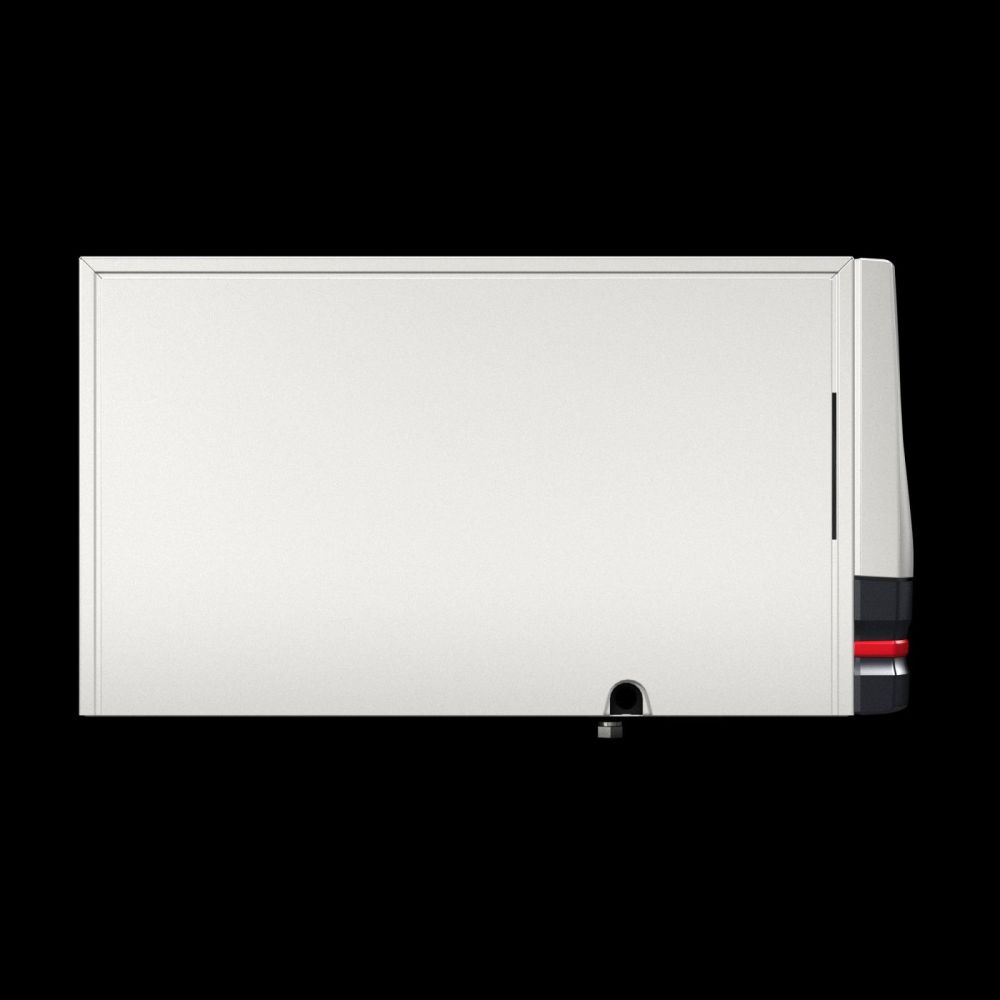

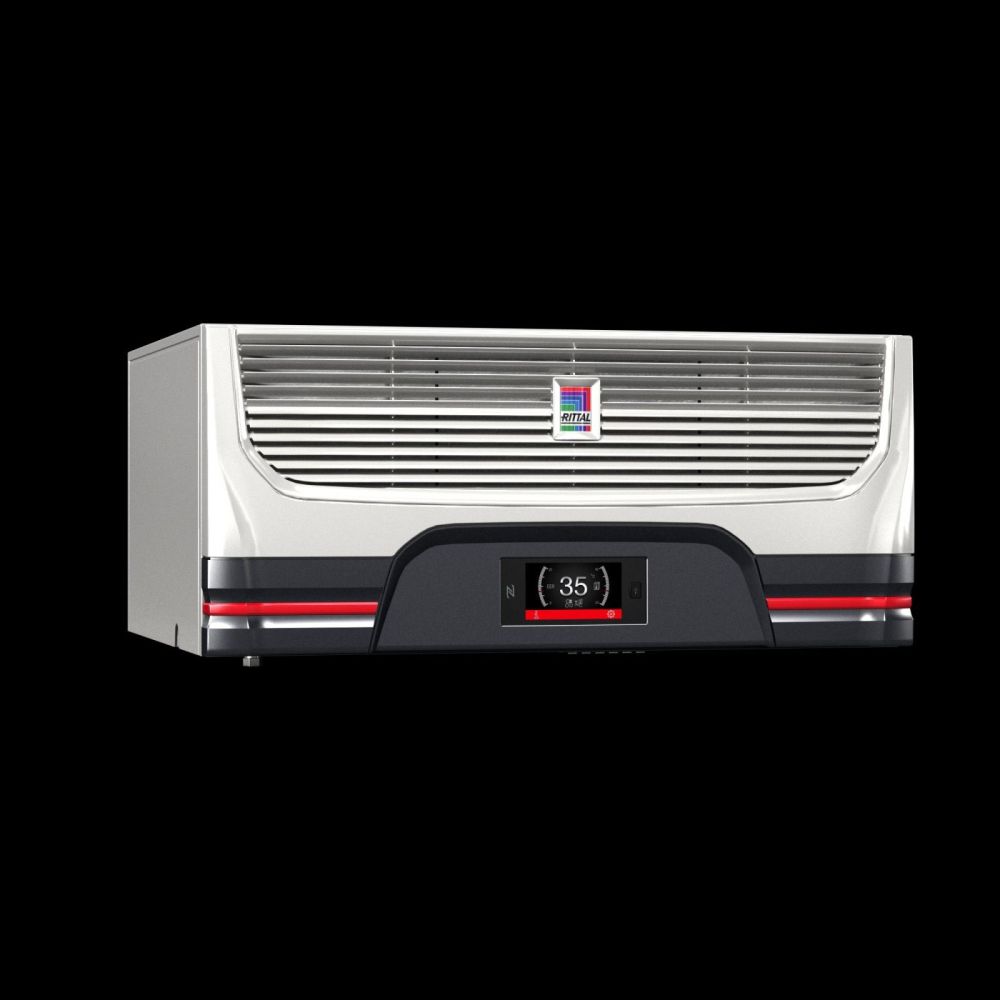

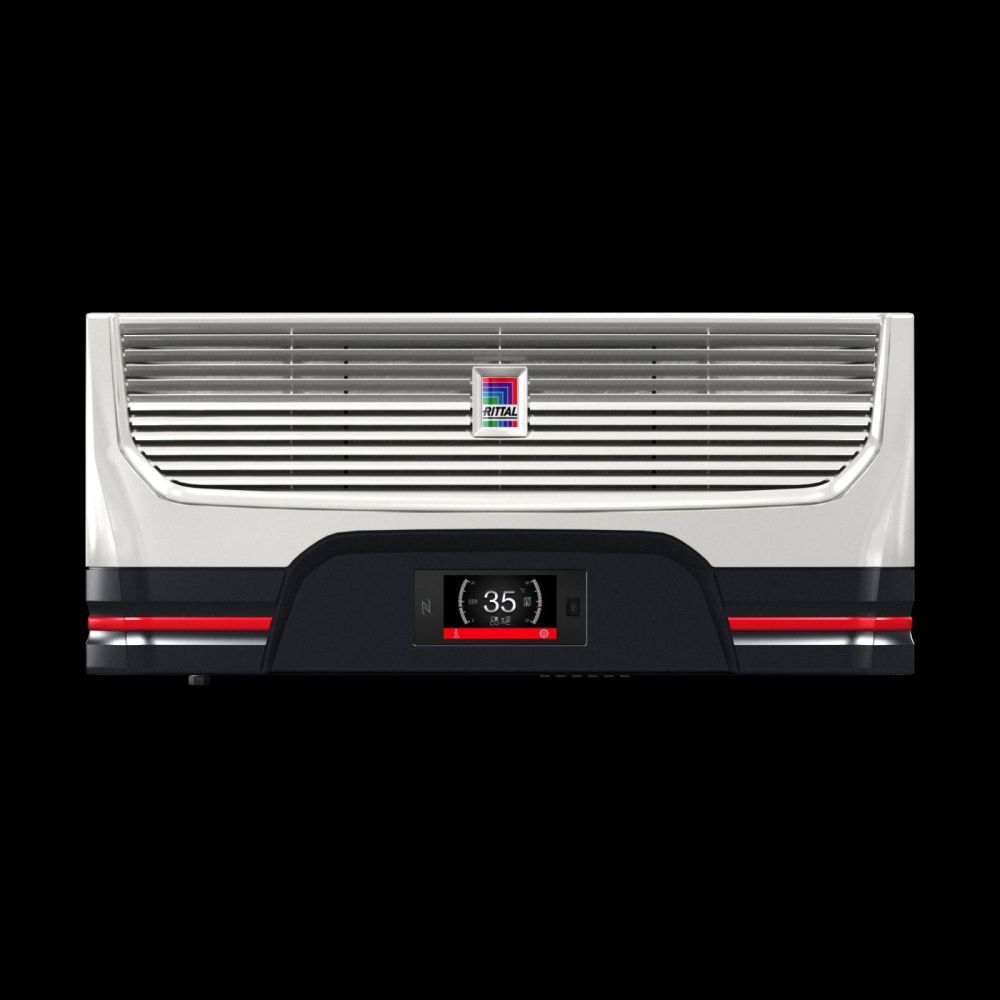

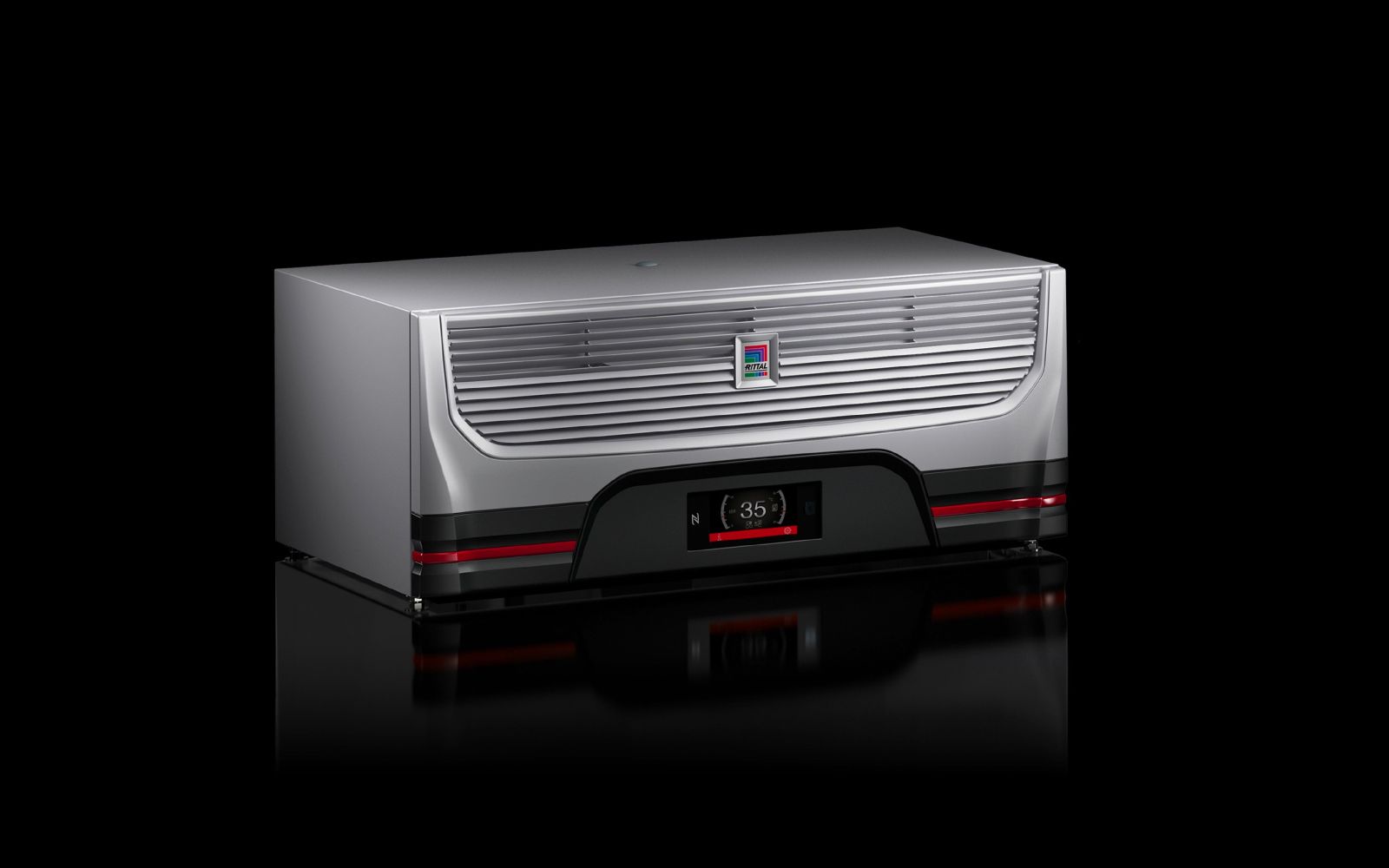

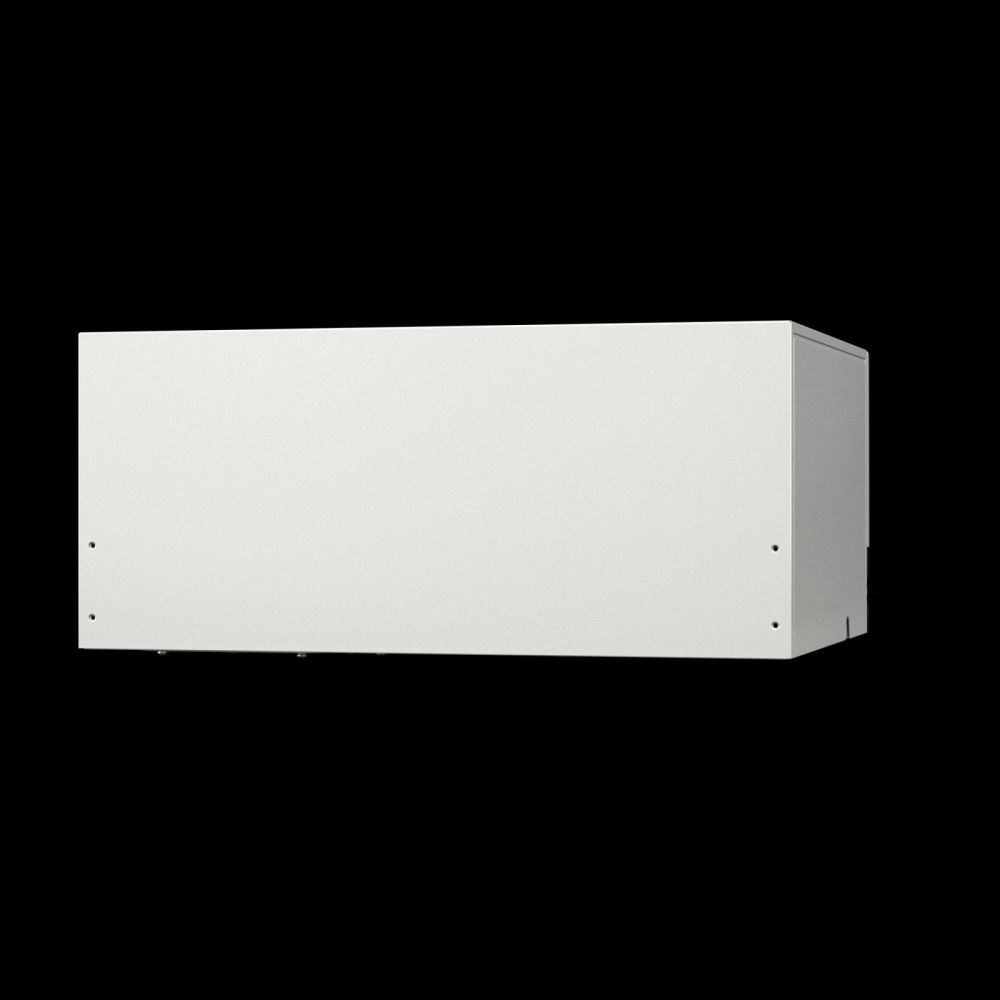

Rittal roof-mounted cooling unit Blue e+ total cooling capacity 1.30
|
2.156,25 EUR |
|
|
( 2.565,94 EUR incl. VAT ) ≈ £1,804.78 | ≈ $2,369.72 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >5 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1597974 |
| Mfg Part No: | 3185730 |
| UPC/EAN: | 4028177927155 |
| Weight: | 56.25 kg |
| Type: | SK 3185730 |
Product information for Rittal 3185730:
Applications
This cooling unit is designed for use in industrial environments where a constant internal temperature in the enclosure is required. It is suitable for applications in automation technology, manufacturing industry, and power supply. The operating temperature range is between -20 °C and 55 °C, with the refrigerant circuit operating actively between 3 °C and 55 °C. The Heat Pipe technology enables component-friendly cooling, extending the service life of electronic components within the enclosure.
Functions and Equipment in Detail
The unit features an e+ controller, pre-set at the factory to a temperature of +35 °C. The temperature control adjustment range is between 20 °C and 50 °C. Temperature regulation is performed via a touch display interface, enabling intuitive operation. The electrical connection is made via a plug-in terminal strip, ensuring a simple and secure connection. The unit is pre-wired for connection and supplied with a pleated filter, mounting hardware, and a condensate hose (3 m).
Technology Explained Simply
The hybrid technology of the cooling unit combines variable-speed components with Heat Pipe technology, resulting in an average energy saving of 75 %. The Heat Pipe technology transfers heat more efficiently and reduces thermal stress on electronic components. The refrigerant R-513A is used in a quantity of 0.6 kg, with a Global Warming Potential (GWP) of 631. The CO₂ equivalent is 0.38 t. The IP 54 protection rating for both the external and internal circuits ensures protection against dust and splashing water, making the unit suitable for outdoor use.
Compatibility and Accessories
The cooling unit is designed for use with enclosures having minimum dimensions of 800 mm width and 600 mm depth. For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages, increasing machine availability and process reliability. Compatible accessories include lifting eyes, roof plate, door position switch, temperature sensor, pleated filter, and electric condensate evaporation.
Installation and Mounting
Mounting is performed on the roof of the enclosure. The unit is designed for installation on enclosures with minimum dimensions of 800 mm width and 600 mm depth. Fixing is done using the mounting hardware included in the delivery. The condensate hose (3 m) is also included in the delivery and enables drainage of condensate.
Operational Advantages
The variable-speed components and Heat Pipe technology result in significant energy savings. The component-friendly cooling extends the service life of electronic components within the enclosure. The intuitive operation via the touch display and intelligent interface simplify commissioning and maintenance. The multi-voltage capability of the unit enables worldwide use, as it can be operated at 110 V - 240 V, 1~, 50 Hz/60 Hz, as well as 380 V - 480 V, 3~, 50 Hz/60 Hz. Energy efficiency is confirmed by an EER value of 2.04 and a SEER value of 5.3, demonstrating the high efficiency of the unit.
| General | |
| Model | Roof structure |
| Material | steel sheet |
| Colour | RAL 7035 |
| Scope of delivery | Roof-mounted cooling unit Blue e+, pleated filter, pre-wired, including mounting material, condensate hose (3 m) |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 1.3 kW, cooling capacity L35 L35/60 Hz: 1.3 kW, cooling capacity L35 L50/50 Hz: 0.6 kW, cooling capacity L35 L50/60 Hz: 0.6 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz, 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | Installation only possible on control cabinets with minimum dimensions (W x D) 800 x 600 mm; operation without a pleated filter is not permitted; by downloading the software, a contract is established between the partner and Rittal for the free use of the software according to these license terms. |
| Rated power | 0,75 kW |
| Air performance (free blowing) | External circuit: 750 m³/h, internal circuit: 700 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity factor L35 L35 (EER) 50 Hz: 2.04, Cooling capacity factor L35 L35 (EER) 60 Hz: 2.04 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 5,3 |
| Width | 700 mm |
| Height | 308 mm |
| Depth | 560 mm |
| Degree of protection IP according to EN 60 529 | External circuit IP 54 with pleated filter, internal circuit IP 54 with pleated filter |
| Refrigerant/cooling medium | Refrigerant: R-513A, quantity: 0.6 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.38 t |
| Electrical connection type | Plug-in terminal block |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...55 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.67 kW, rated power L35 L35/60 Hz: 0.67 kW, rated power L35 L50/50 Hz: 0.57 kW, rated power L35 L50/60 Hz: 0.57 kW |
| Permissible operating pressure (p max.) | 24 bar |
| PCF/VE (Cradle-to-Gate) | 625,52 |
