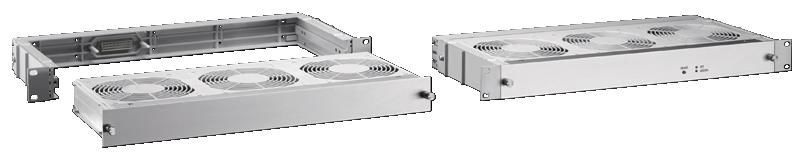

Rittal 3352500 SK Vario rack-mounted fan, for 482.6 mm (48,3 cm ( 19 inch )), 480 m³/h, 115-230 V, 1~, 50/60 Hz, 24 V (DC), WHD: 482.6x44x200 mm
|
-8% 548,55 EUR 595,30 EUR |
|
|
( 652,77 EUR incl. VAT ) ≈ £470.66 | ≈ $635.77 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 764277 |
|---|---|
| Mfg Part No: | 3352500 |
| UPC/EAN: | 4028177041660 |
| Weight: | 0.123 kg |
Product information for Rittal 3352500:
Terminal strip and assembly parts
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177041660
Customs tariff number: 84145100
eCl@ss 5.1: 27180705
eCl@ss 7.0: 27180716
ETIM 6.0: EC000320
Air throughput (unimpeded air flow): 480 m³/h
Rated operating voltage: 115 V - 230 V, 1~, 50 Hz/60 Hz
24 V (DC)
Dimensions: Width: 482.6 mm / 48,3 cm ( 19 inch )
Height: 44 mm
Depth: 200 mm
Distance between axes of fans: 105 mm
Temperature range: Operation (environment): -10°C...+55°C
Rated current (max.): At 50 Hz: 0.85 A
At 60 Hz: 0.85 A
Pre-fuse: Miniature circuit-breaker/fuse: 6 A
Noise level: At 50 Hz: 51 dB(A)
Number of fans: 3
Weight/pack: 2.04 kg
Type: SK 3352500
