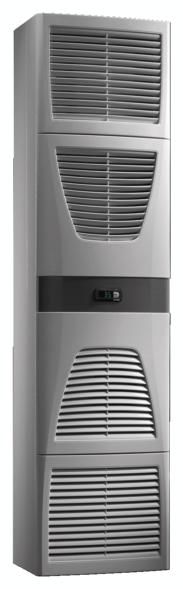

Rittal 3329540 SK Blue e cooling unit, Wall-mounted, 2.55 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 400x1580x295 mm
|
2.652,73 EUR 2.762,47 EUR |
|
|
( 3.156,75 EUR incl. VAT ) ≈ £2,278.70 | ≈ $3,040.03 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |
| In Stock: 3 pieces | |
| Lieske Part No.: | 866022 |
|---|---|
| Mfg Part No: | 3329540 |
| UPC/EAN: | 4028177323124 |
| Weight: | 70 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3329540:
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177323124
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.55 kW
L 35 L 35 at 60 Hz: 2.75 kW
L 35 L 50 at 50 Hz: 1.95 kW
L 35 L 50 at 60 Hz: 2 kW
Air throughput (unimpeded air flow): External circuit: 1200 m³/h
Internal circuit: 1200 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 400 mm
Height: 1580 mm
Depth: 295 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 950 g
Power consumption Pel: L 35 L 35 at 50 Hz: 1.2 kW
L 35 L 35 at 60 Hz: 1.4 kW
L 35 L 50 at 50 Hz: 1.45 kW
L 35 L 50 at 60 Hz: 1.75 kW
Rated current (max.): At 50 Hz: 3.7 A
At 60 Hz: 3.8 A
Start-up current max.: At 50 Hz: 6.8 A
At 60 Hz: 7.6 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.11
Weight/pack: 70 kg
Type: SK 3329540
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177323124
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.55 kW
L 35 L 35 at 60 Hz: 2.75 kW
L 35 L 50 at 50 Hz: 1.95 kW
L 35 L 50 at 60 Hz: 2 kW
Air throughput (unimpeded air flow): External circuit: 1200 m³/h
Internal circuit: 1200 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 400 mm
Height: 1580 mm
Depth: 295 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 950 g
Power consumption Pel: L 35 L 35 at 50 Hz: 1.2 kW
L 35 L 35 at 60 Hz: 1.4 kW
L 35 L 50 at 50 Hz: 1.45 kW
L 35 L 50 at 60 Hz: 1.75 kW
Rated current (max.): At 50 Hz: 3.7 A
At 60 Hz: 3.8 A
Start-up current max.: At 50 Hz: 6.8 A
At 60 Hz: 7.6 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.11
Weight/pack: 70 kg
Type: SK 3329540
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 3329540 SK Blue e cooling unit, Wall-mounted, 2.55 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 400x1580x295 mm?
The article Rittal 3329540 SK Blue e cooling unit, Wall-mounted, 2.55 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 400x1580x295 mm is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3329540 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3329540 SK Blue e cooling unit, Wall-mounted, 2.55 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 400x1580x295 mm always at the best possible price. We can give you a discount of 2% on Rittal 3329540 SK Blue e cooling unit, Wall-mounted, 2.55 kW, 400/460 V, 3~, 50/60 Hz, Sheet steel, WHD: 400x1580x295 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
