Rittal 3328640 RTT Blue e cooling unit stainless steel wall 2000 W Comfortr

Your rating:
Average rating
product review for Rittal 3328640 RTT Blue e cooling unit stainless steel wall 2000 W Comfortr
( 4.3 / 5 ) 3 ratings

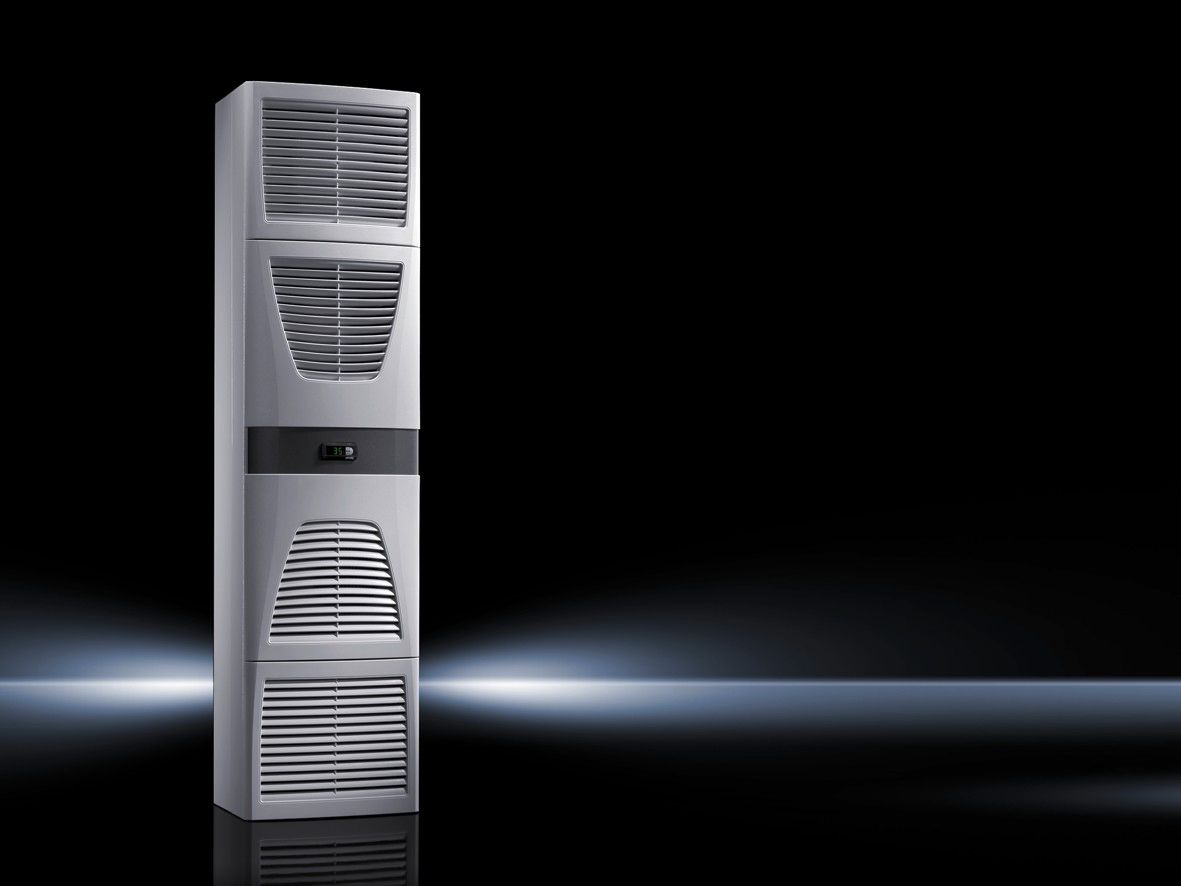

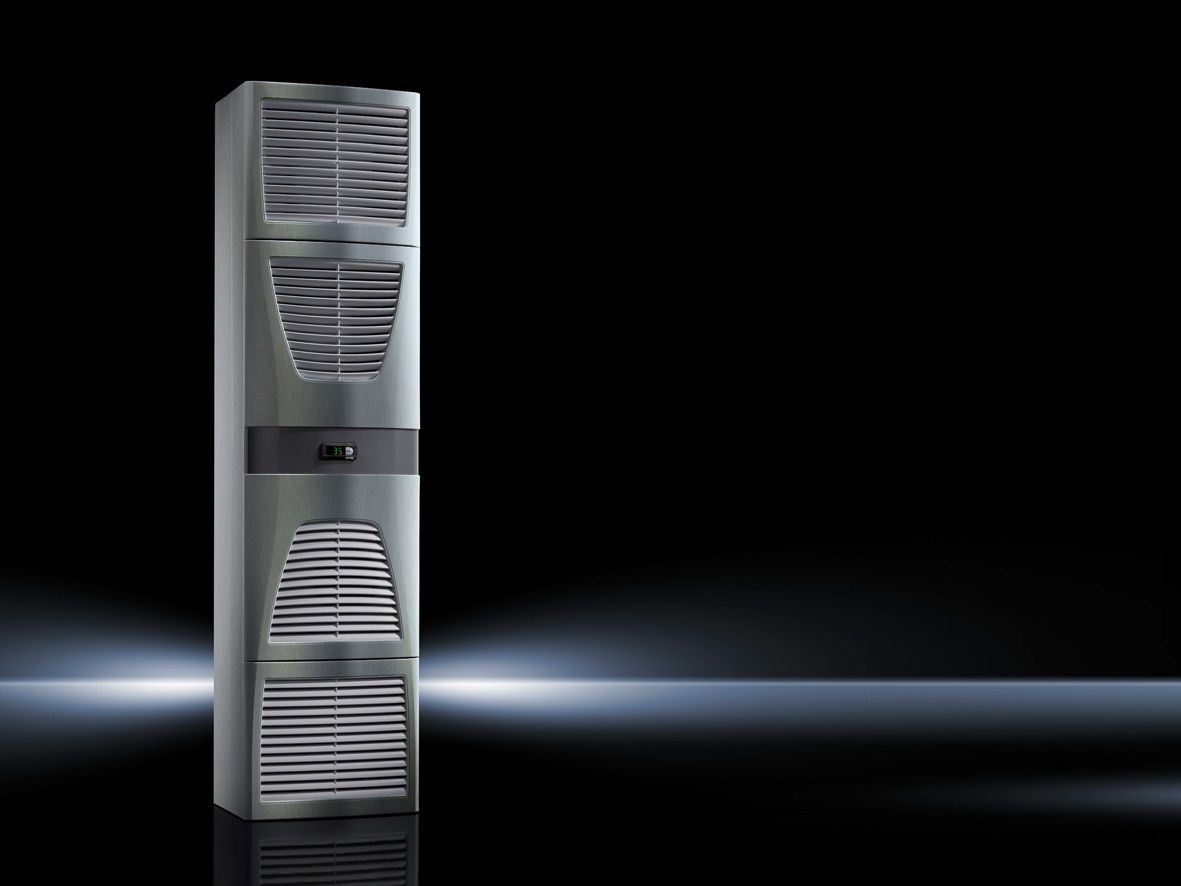

Rittal 3328640
This image may differ from the desired article.
Rittal 3328640Rittal 3328640Rittal 3328640
3.284,22 EUR 3.420,09 EUR
( 3.908,22 EUR incl. VAT )
≈ £2,748.89  |  ≈ $3,609.36
Made to order · Delivery time approx. 5 workdaysinfo_outline
1x Rittal 3328640 RTT Blue e cooling unit stainless steel wall 2000 W Comfortr
Datasheet:file_download Download
Lieske Part No.:2094928
Mfg Part No: 3328640
UPC/EAN: 4028177379824
Weight:69 kg
Type:SK 3328640

Product information for Rittal 3328640:

The Rittal SK 3328640 is a wall-mounted cooling unit of the Blue e series, specifically designed for climate control of enclosures and industrial housings. It features a cooling capacity of up to 2.25 kW at 60 Hz and is designed for operating voltages of 400 V, 3~, 50 Hz as well as 460 V, 3~, 60 Hz. The unit is made of stainless steel 1.4301 (AISI 304) and is available in the colour RAL 9007, ensuring high corrosion resistance and long service life in industrial environments. Dimensions are 400 mm (width) × 1,580 mm (height) × 295 mm (depth), making it ideal for installation in standard enclosures.

Applications
This cooling unit is suitable for use in industrial applications, such as in automation technology, manufacturing industry or machine building. It ensures that the internal temperature within the enclosure remains within the specified range of 20 °C to 55 °C, thus protecting sensitive electronic components from overheating. The operating temperature range of the unit is between 10 °C and 55 °C, enabling flexible use in various environments.

Functions and Equipment in Detail
The unit features an integrated electric condensate evaporation system, which automatically evaporates the generated condensate, eliminating the need for external drainage via a hose. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and facilitating cleaning. Temperature control is performed via an e-Comfortcontroller, factory-set to +35 °C with an adjustable range from 20 °C to 55 °C. The unit is pre-wired for connection with a plug-in terminal strip, simplifying installation. The delivery includes a drilling template and mounting hardware.

Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 2.05 kW at 50 Hz and L35 operation, and 2.25 kW at 60 Hz. The air performance is 900 m³/h for both the external and internal circuits, ensuring efficient air circulation within the enclosure. Energy efficiency is described by the Energy efficiency ratio (EER), which is 2.25 at 50 Hz and 1.95 at 60 Hz. The unit uses refrigerant R-513A with a Global Warming Potential (GWP) of 631 and a quantity of 0.95 kg. The permissible operating pressure is 28 bar, and the pre-fuse is implemented as a motor protection switch with a rated value of 6.3 to 10 A.

Compatibility and Accessories
The cooling unit can be networked via an IoT Interface using a Blue e IoT Adapter, enabling remote monitoring and control. Compatible accessories include, among others, a condensate hose (12 x 2 mm, length 10 m), an air deflector for SK 3328/3329, a master/slave cable for SK-Bus systems, metal filters, a filter mat, and a door position switch. These components can be used to extend functionality or adapt to specific requirements.

Mounting and Installation
Mounting is performed on the wall of the enclosure. The drilling template and mounting hardware included in the delivery simplify installation. The unit is designed for indoor use, with the external circuit having a protection rating of IP 34 and the internal circuit IP 34. The NEMA protection rating corresponds to UL Type 12, providing protection against dust and splashing water.

Operational Advantages
The integrated electric condensate evaporation reduces maintenance effort, as no external drainage connection is required. The high energy efficiency (EER 2.25 at 50 Hz) reduces power consumption. The robust stainless steel construction ensures long service life and high reliability in demanding environments. The networkable control via the IoT Interface enables central monitoring and remote maintenance, which is particularly beneficial in large-scale installations.

Protection Rating and Operating Conditions
The unit is designed for operation in environments with temperatures ranging from 10 °C to 55 °C. Storage temperature can range from -40 °C to 70 °C. The protection rating IP 34 (external circuit) and IP 34 (internal circuit) according to EN 60 529, as well as UL Type 12 according to NEMA, ensure reliable operation even under dirty or humid conditions. The maximum air performance of 900 m³/h per circuit ensures effective cooling of the enclosure interior.

General
ModelWall surface mounted
MaterialStainless steel 1.4301 (AISI 304)
ColourRAL 9007
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 2.05 kW, cooling capacity L35 L35/60 Hz: 2.25 kW, cooling capacity L35 L50/50 Hz: 1.35 kW, cooling capacity L35 L50/60 Hz: 1.5 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
Rated current max.At 50 Hz: 2.2 A, at 60 Hz: 2.4 A
Inrush current (max.)At 50 Hz: 4.8 A, At 60 Hz: 5.5 A
Air performance (free blowing)External circuit: 900 m³/h, Internal circuit: 900 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance factor L35 L35 (EER) 50 Hz: 2.25, Cooling performance factor L35 L35 (EER) 60 Hz: 1.95
Width400 mm
Height1.580 mm
Depth295 mm
Degree of protection IP according to EN 60 529External circuit: IP 34, internal circuit: IP 54
NEMA degree of protectionUL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.95 kg, Global Warming Potential (GWP): 631, CO₂ Equivalent (CO₂e): 0.6 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range10 °C...55 °C
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...55 °C
Rated power PelRated power L35 L35/50 Hz: 0.92 kW, rated power L35 L35/60 Hz: 1.15 kW, rated power L35 L50/50 Hz: 1.15 kW, rated power L35 L50/60 Hz: 1.3 kW
Permissible operating pressure (p max.)28 bar
FuseMotor protection switch: 6.3...10 A
