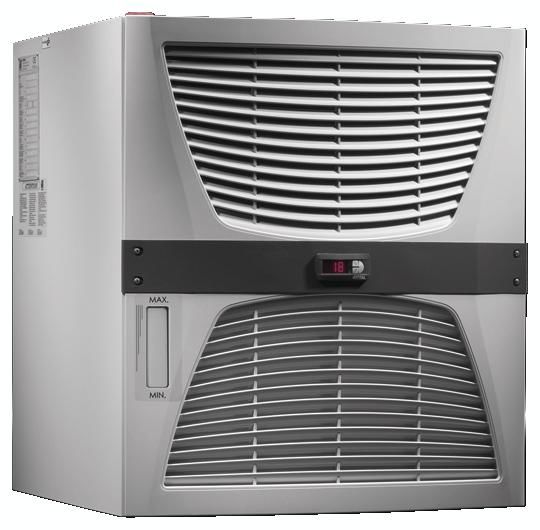

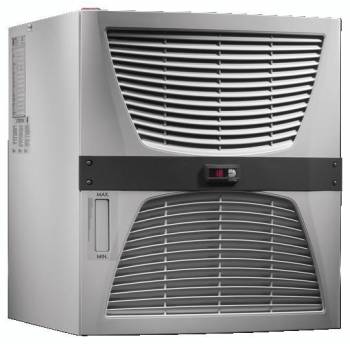

Rittal 3318610 SK TopTherm chiller, Stand alone, 1/1.1 kW, 230 V, 1~, 50/60 Hz, WHD: 600x400x430 mm, with integral tank
|
-5% 2.852,35 EUR 3.015,31 EUR |
|
|
( 3.394,30 EUR incl. VAT ) ≈ £2,447.32 | ≈ $3,305.87 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 356943 |
|---|---|
| Mfg Part No: | 3318610 |
| UPC/EAN: | 4028177351141 |
| Weight: | 0.048 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3318610:
Design: Compact, modular layout of the refrigeration components
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351141
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 0.8 kW
At TW = 10°C/TU = 32°C and 60 Hz: 0.9 kW
At TW = 18°C/TU = 32°C and 50 Hz: 1 kW
At TW = 18°C/TU = 32°C and 60 Hz: 1.1 kW
Air throughput (unimpeded air flow): At 50 Hz: 900 m³/h
At 60 Hz: 900 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 600 mm
Height: 400 mm
Depth: 430 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 0.63 kW
At 60 Hz: 0.78 kW
Rated current (max.): At 50 Hz: 4.2 A
At 60 Hz: 4.1 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 2.5 l
Material: PP plastic
Weight/pack: 48 kg
Type: SK 3318610
Nano-coated condenser
Pump to convey the medium
Precise temperature control, based on microprocessor technology
Collective fault signal with floating contact
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 44 (electrics)
Supply includes: Complete unit ready for connection
Multilingual documentation including functional diagram and wiring plans
Note: For 3334.660, two metal filters are required
Packs of: 1 pc(s).
EAN: 4028177351141
Customs tariff number: 84186900
eCl@ss 5.1: 27180713
eCl@ss 7.0: 27180713
ETIM 6.0: EC002516
Total cooling output: At TW = 10°C/TU = 32°C and 50 Hz: 0.8 kW
At TW = 10°C/TU = 32°C and 60 Hz: 0.9 kW
At TW = 18°C/TU = 32°C and 50 Hz: 1 kW
At TW = 18°C/TU = 32°C and 60 Hz: 1.1 kW
Air throughput (unimpeded air flow): At 50 Hz: 900 m³/h
At 60 Hz: 900 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 600 mm
Height: 400 mm
Depth: 430 mm
Temperature control: Microcontroller control (factory setting +20°C)
Temperature range: Operation (environment): +10°C...+43°C
Liquid media: +10°C...+30°C
Refrigerant/cooling medium: Refrigerant: R134a
Power consumption Pel: At 50 Hz: 0.63 kW
At 60 Hz: 0.78 kW
Rated current (max.): At 50 Hz: 4.2 A
At 60 Hz: 4.1 A
Water circuit: Open
Water connections: ½" internal thread
Number of cooling circuits: 1
Tank: Contents: 2.5 l
Material: PP plastic
Weight/pack: 48 kg
Type: SK 3318610
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
