Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com

Your rating:
Average rating
product review for Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com
( 4.7 / 5 ) 3 ratings

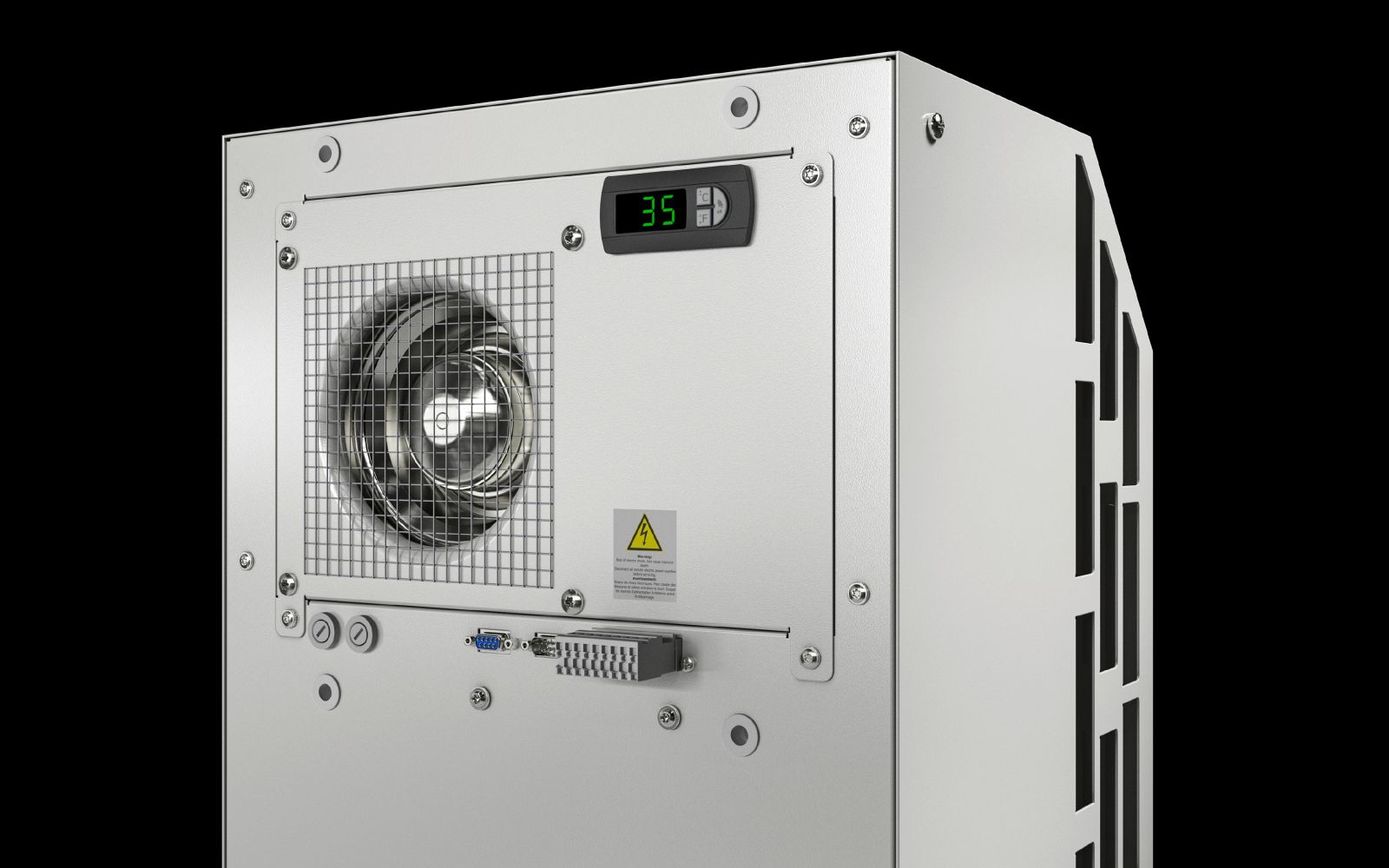

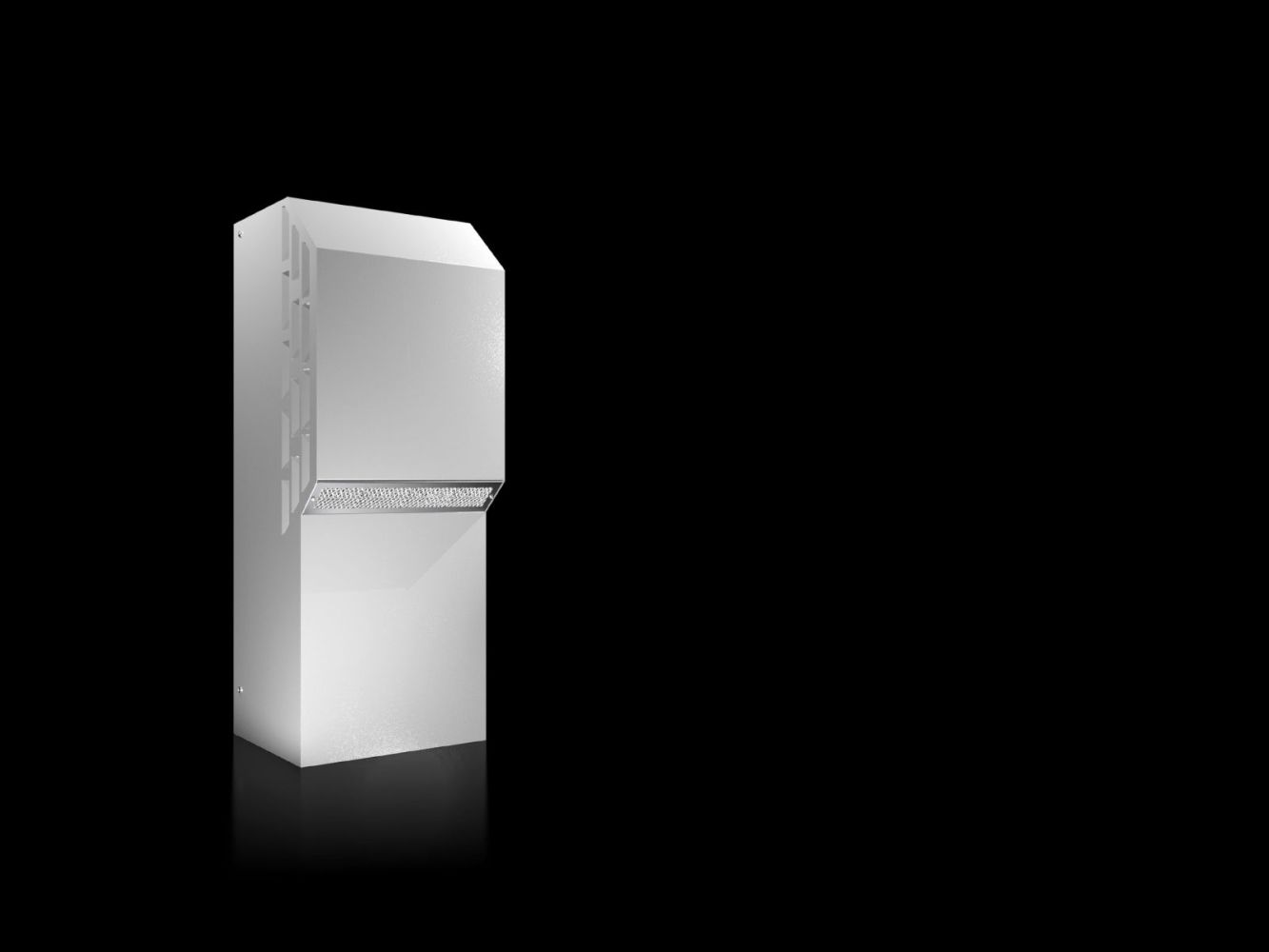

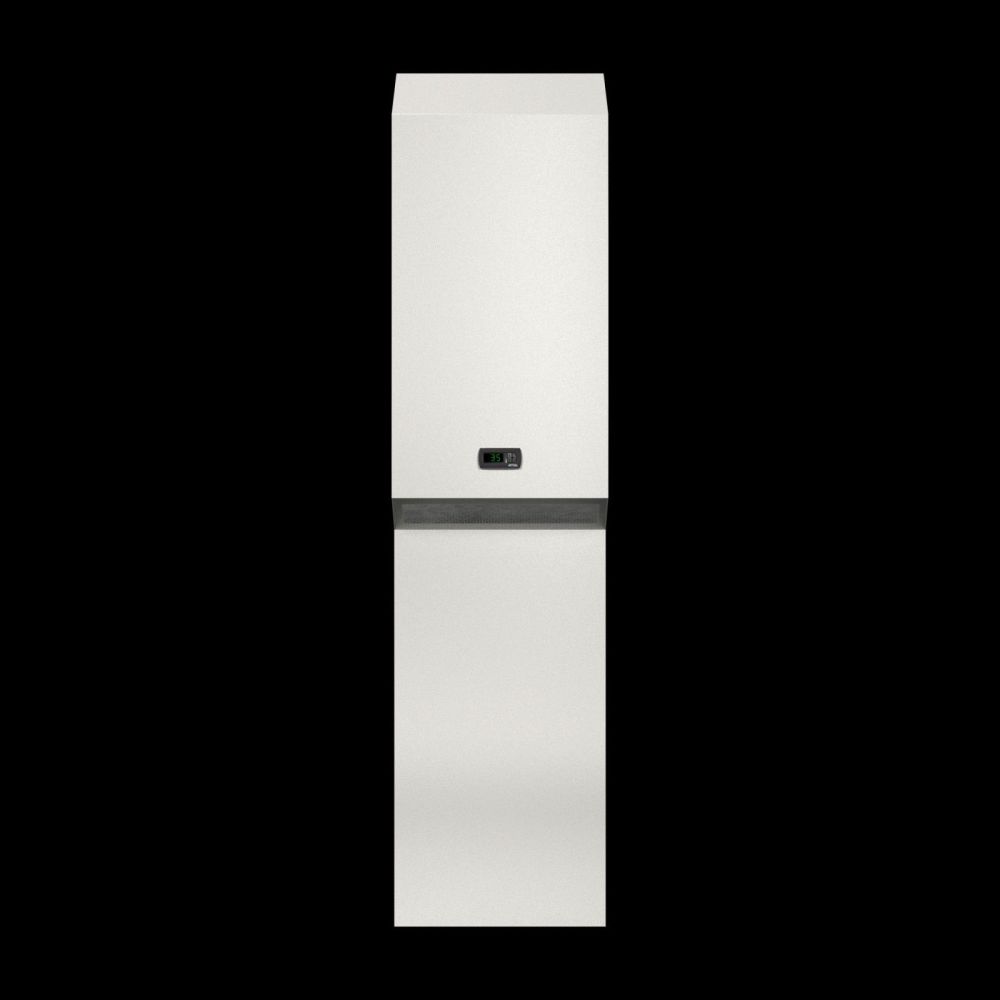

Rittal 3305548
This image may differ from the desired article.
Rittal 3305548Rittal 3305548Rittal 3305548Rittal 3305548Rittal 3305548
2.656,50 EUR
( 3.161,23 EUR incl. VAT )
≈ £2,223.49  |  ≈ $2,919.49
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: 3 pieces
1x Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com
Datasheet:file_download Download
Lieske Part No.:1908514
Mfg Part No: 3305548
UPC/EAN: 4028177943742
Weight:64.75 kg
Type:SK 3305548

Product information for Rittal 3305548:

The Rittal SK 3305548 is a wall-mounted cooling unit of the Blue e series, specifically designed for climate control of enclosures and industrial housings. It is suitable for use in environments where reliable temperature regulation is required, particularly in outdoor applications. The unit is manufactured from sheet steel and is available in the colour RAL 7035. The protection rating UL Type 3R/4/12 ensures high mechanical and weather-resistant safety, making it suitable for outdoor use. The integrated electrical condensate evaporation ensures that condensate water is automatically evaporated during operation, reducing maintenance and increasing operational safety.

Applications include industrial plants, automation technology, control enclosures, and applications in the field of energy and process automation. The cooling unit is particularly suitable for enclosures operated in harsh environments, such as in manufacturing, machine building, or process engineering. The temperature control is performed via an e-Comfort controller, which is factory-set to +35 °C and offers an adjustable range from 20 °C to 50 °C. This allows precise adaptation to specific operating conditions.

Functions and equipment in detail include a condenser with hydrophobic RiNano coating, which optimises heat dissipation and reduces susceptibility to contamination. The unit is pre-wired with a plug-in terminal strip, simplifying installation. The delivery includes a drilling template and mounting hardware to enable quick and secure installation. The integrated electrical condensate evaporation ensures a dry operating environment inside the enclosure, thereby increasing the lifespan of electronic components.

Technology explained simply shows that the unit operates with refrigerant R-513A, which has a Global Warming Potential (GWP) of 631. The total cooling capacity ranges between 1.1 kW and 1.61 kW depending on operating conditions, with a cooling capacity of 1.6 kW at 50 Hz and L35 operation. The rated operating voltage is 400 V, 3~, 50 Hz as well as 460 V, 3~, 60 Hz. The airflow rate is 950 m³/h in the outdoor circuit and 540 m³/h in the indoor circuit, ensuring efficient air circulation within the enclosure. The energy efficiency ratio (EER) is 2.0 at 50 Hz and 1.64 at 60 Hz, highlighting the energy efficiency of the unit. The operating temperature range extends from -20 °C to 50 °C, with the compressor activating at ambient temperatures above +10 °C. Between -20 °C and +10 °C, only the indoor fan operates.

Compatibility and accessories include the option to connect the unit to an IoT interface via a Blue e IoT adapter, enabling remote monitoring and control. Suitable accessories include, among others, SK air deflector for SK 3304/3305, door position switch, and transport eyes for safe transportation. The networking capability is particularly relevant for applications in Industry 4.0, where devices are to be integrated into higher-level control systems.

Mounting and installation is carried out on the wall of the enclosure or housing. The drilling template and mounting hardware facilitate installation. The unit is designed for use in enclosures with a minimum height of 1,020 mm. Dimensions are 405 mm (width) × 1,020 mm (height) × 358 mm (depth). The protection rating IP 34 for the outdoor circuit and IP 56 for the indoor circuit provide high protection against dust and water. The pre-fuse is implemented with a motor protection switch rated 6.3 to 10 A, ensuring electrical safety.

Operational advantages include high reliability, easy installation, and integrated condensate evaporation. The Blue e technology ensures energy-efficient cooling performance, with a cooling capacity of 1.6 kW at 50 Hz. The storage temperature range of -40 °C to 70 °C allows flexible storage. The unit is designed for use in harsh environments and offers high operational safety thanks to integrated protection functions. The electrical condensate evaporation reduces maintenance and prevents moisture build-up inside the enclosure.

The Rittal SK 3305548 is thus a powerful, reliable, and low-maintenance cooling unit for industrial enclosures, suitable for both indoor and outdoor applications. The combination of high efficiency, integrated condensate evaporation, and networkable technology makes it a suitable solution for modern automation systems.

General
ModelWall surface mounted
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 1.6 kW, cooling capacity L35 L35/60 Hz: 1.61 kW, cooling capacity L35 L50/50 Hz: 1.1 kW, cooling capacity L35 L50/60 Hz: 1.25 kW
Rated operating voltage400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz
Rated current max.At 50 Hz: 2.5 A, At 60 Hz: 2.8 A
Inrush current (max.)At 50 Hz: 12.2 A, At 60 Hz: 11.3 A
Air performance (free blowing)External circuit: 950 m³/h, internal circuit: 540 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity ratio L35 L35 (EER) 50 Hz: 2, Cooling capacity ratio L35 L35 (EER) 60 Hz: 1.64
Width405 mm
Height1.020 mm
Depth358 mm
Degree of protection IP according to EN 60 529External circuit IP 34, internal circuit IP 56
NEMA degree of protectionUL Type 3R, UL Type 4, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, Quantity: 0.61 kg, Global Warming Potential (GWP): 631, CO₂ Equivalent (CO₂e): 0.38 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range-20 °C...50 °C
Operation temperatureCompressor cooling mode from +10 °C ambient temperature. In the temperature range -20 °C to +10 °C, only the internal fan is active.
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.8 kW, Rated power L35 L35/60 Hz: 0.98 kW, Rated power L35 L50/50 Hz: 0.87 kW, Rated power L35 L50/60 Hz: 1.15 kW
Permissible operating pressure (p max.)28 bar
FuseMotor protection switch: 6.3...10 A


Please note...
This article has over-size and needs to be seperately taken care of. This is why we want to inform you, that the calculation of the delivery charges in the shopping cart will disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3305548, EAN: 4028177943742

Questions & answers

What is the delivery time of Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com?

The article Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com is currently in stock

According to our experience the article is ready for dispatch within 6 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3305548 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com always at the best possible price. We can give you a discount of 2% on Rittal 3305548 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1600 W Com if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
