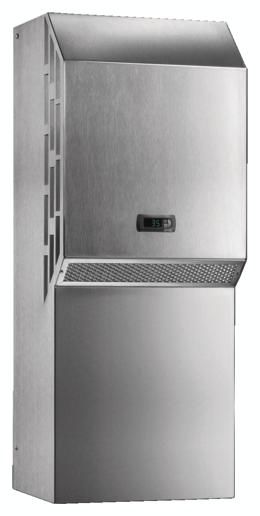

Rittal 3305544 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.6 kW, 400/460 V, 3~, 50/60 Hz, Stainless steel
|
3.548,53 EUR 3.695,34 EUR |
|
|
( 4.222,75 EUR incl. VAT ) ≈ £3,044.64 | ≈ $4,112.75 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 808979 |
|---|---|
| Mfg Part No: | 3305544 |
| UPC/EAN: | 4028177384439 |
| Weight: | 0 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3305544:
Material: Stainless steel 1.4404 (AISI 316L)
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384439
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.61 kW
L 35 L 50 at 50 Hz: 1.33 kW
L 35 L 50 at 60 Hz: 1.35 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 405 mm
Height: 1020 mm
Depth: 358 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 600 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.9 kW
L 35 L 35 at 60 Hz: 1.08 kW
L 35 L 50 at 50 Hz: 1.06 kW
L 35 L 50 at 60 Hz: 1.25 kW
Rated current (max.): At 50 Hz: 2.6 A
At 60 Hz: 2.8 A
Start-up current max.: At 50 Hz: 12.2 A
At 60 Hz: 11.3 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 52 kg
Type: SK 3305544
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384439
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.61 kW
L 35 L 50 at 50 Hz: 1.33 kW
L 35 L 50 at 60 Hz: 1.35 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 405 mm
Height: 1020 mm
Depth: 358 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 600 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.9 kW
L 35 L 35 at 60 Hz: 1.08 kW
L 35 L 50 at 50 Hz: 1.06 kW
L 35 L 50 at 60 Hz: 1.25 kW
Rated current (max.): At 50 Hz: 2.6 A
At 60 Hz: 2.8 A
Start-up current max.: At 50 Hz: 12.2 A
At 60 Hz: 11.3 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 52 kg
Type: SK 3305544
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
