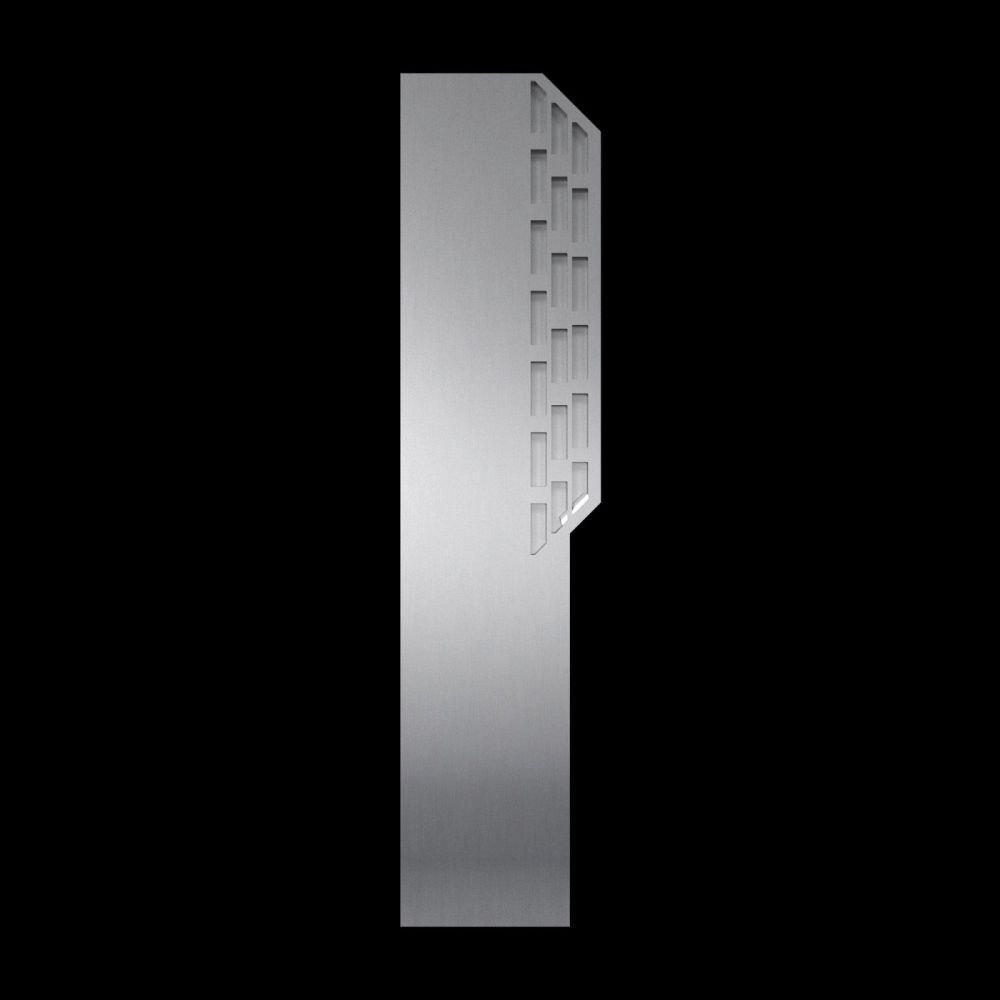

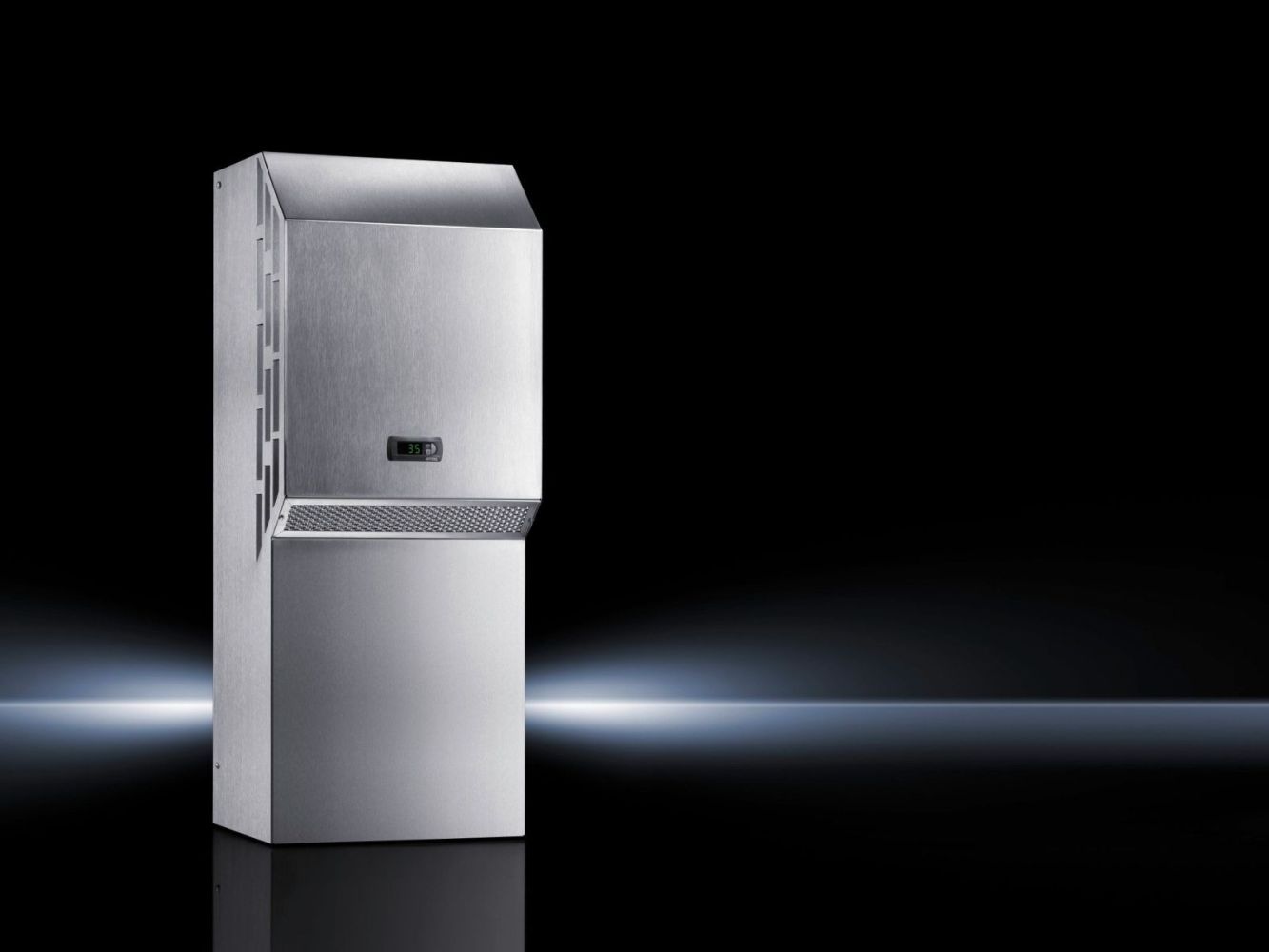

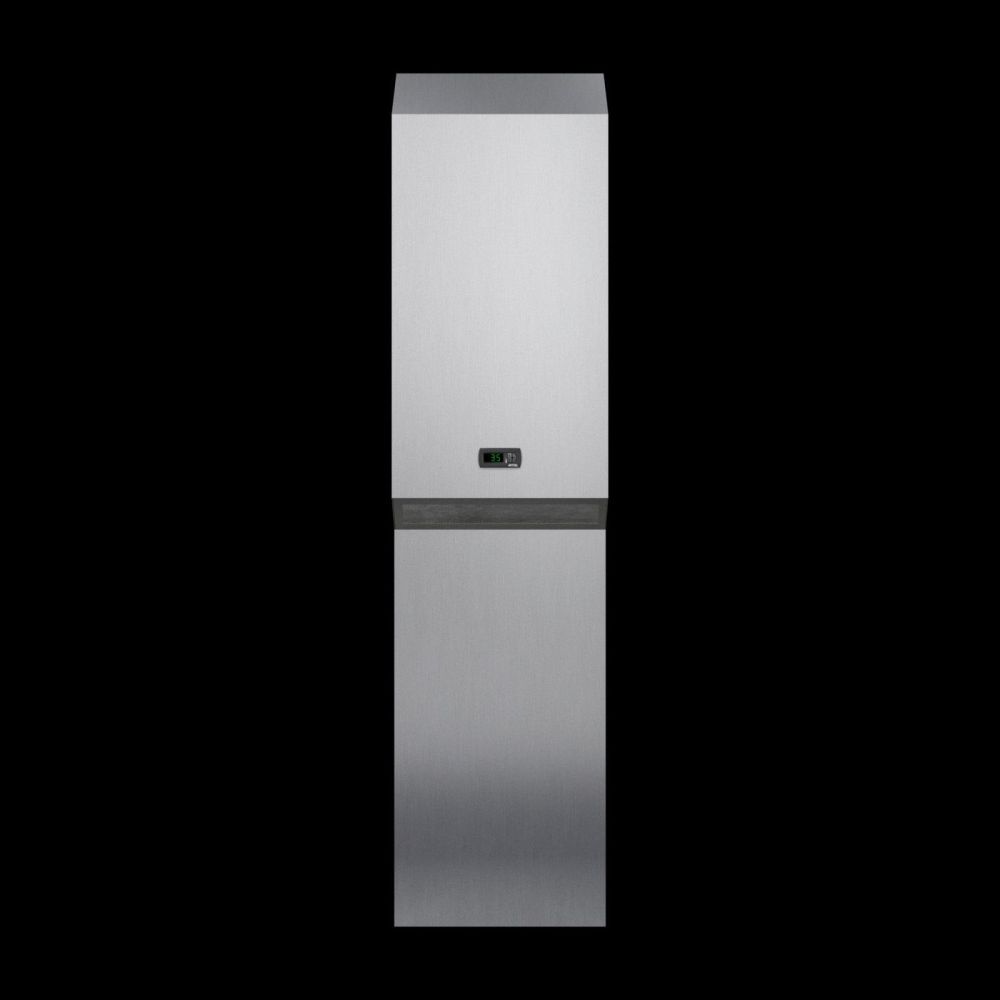

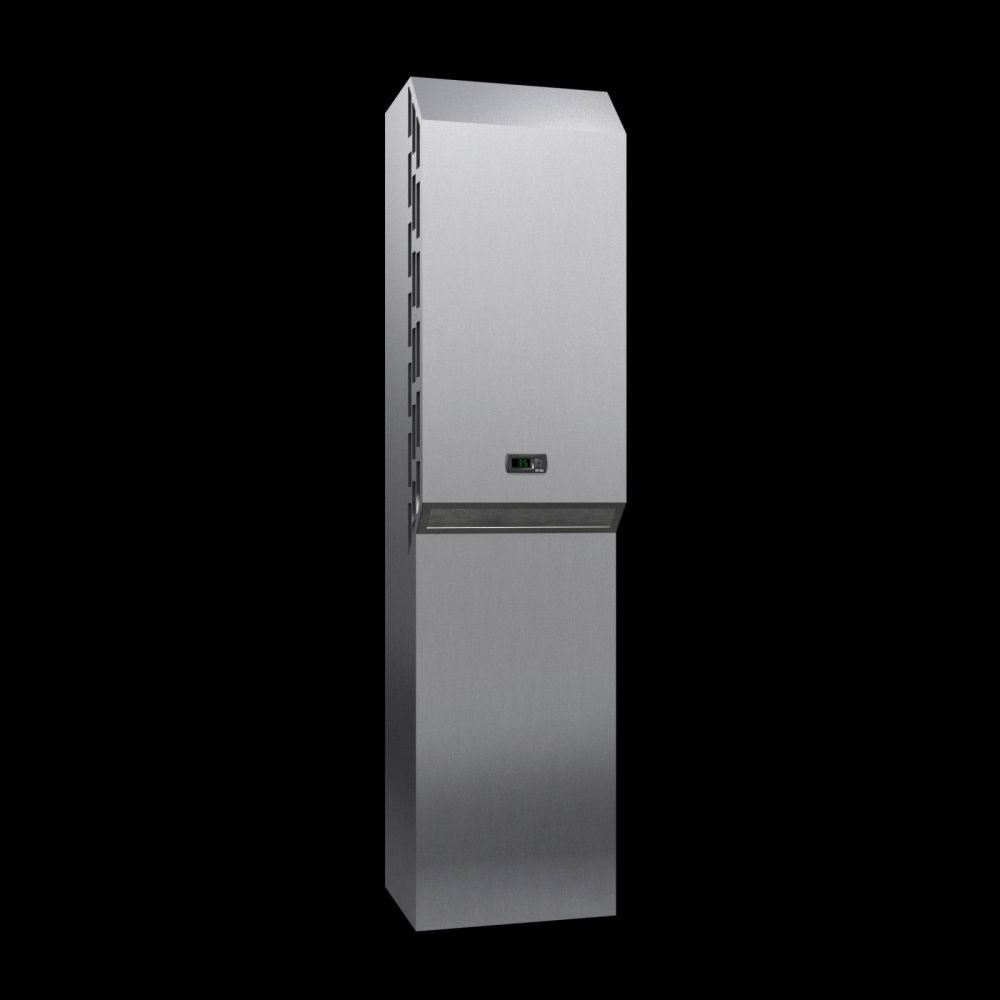

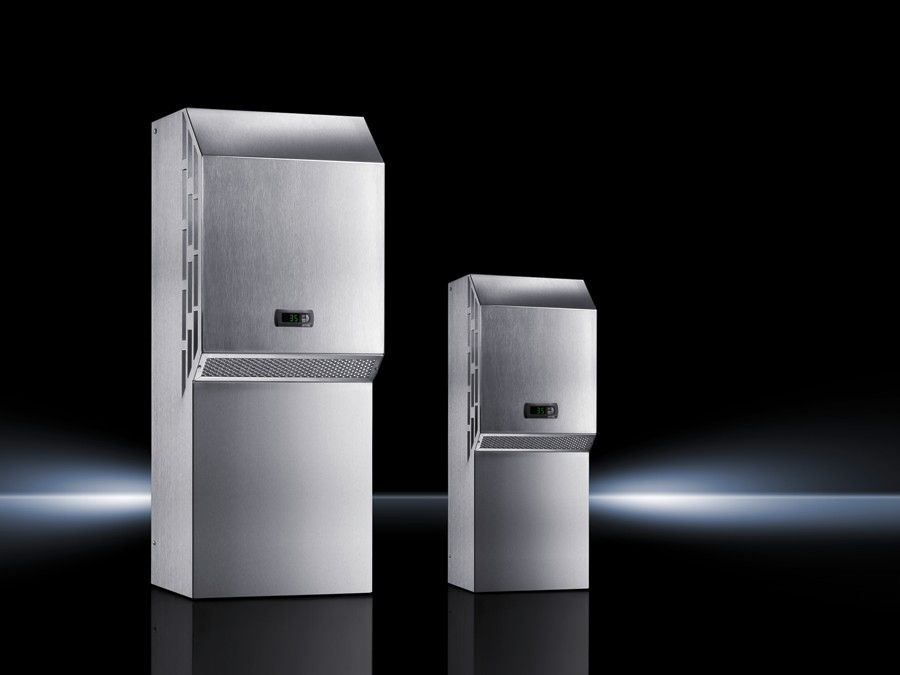

Rittal 3305544 RTT Blue e cooling unit wall-mounted NEMA4 X 1500 W Comfort
|
3.668,50 EUR |
|
|
( 4.365,51 EUR incl. VAT ) ≈ £3,070.53 | ≈ $4,031.68 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 808979 |
| Mfg Part No: | 3305544 |
| UPC/EAN: | 4028177384439 |
| Weight: | 63 kg |
| Type: | SK 3305544 |
Product information for Rittal 3305544:
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384439
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.61 kW
L 35 L 50 at 50 Hz: 1.33 kW
L 35 L 50 at 60 Hz: 1.35 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz
460 V, 3~, 60 Hz
Dimensions: Width: 405 mm
Height: 1020 mm
Depth: 358 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 600 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.9 kW
L 35 L 35 at 60 Hz: 1.08 kW
L 35 L 50 at 50 Hz: 1.06 kW
L 35 L 50 at 60 Hz: 1.25 kW
Rated current (max.): At 50 Hz: 2.6 A
At 60 Hz: 2.8 A
Start-up current max.: At 50 Hz: 12.2 A
At 60 Hz: 11.3 A
Pre-fuse: Motor circuit-breaker: 6.3 A...10 A A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 52 kg
| General | |
| Model | Wall surface mounted |
| Material | Stainless steel 1.4404 (AISI 316L) |
| Colour | RAL 7001 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 1.6 kW, cooling capacity L35 L35/60 Hz: 1.61 kW, cooling capacity L35 L50/50 Hz: 1.1 kW, cooling capacity L35 L50/60 Hz: 1.25 kW |
| Rated operating voltage | 400 V, 3~, 50 Hz, 460 V, 3~, 60 Hz |
| Rated current max. | At 50 Hz: 2.5 A, At 60 Hz: 2.8 A |
| Inrush current (max.) | At 50 Hz: 12.2 A, At 60 Hz: 11.3 A |
| Air performance (free blowing) | External circuit: 950 m³/h, internal circuit: 540 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity ratio L35 L35 (EER) 50 Hz: 2, Cooling capacity ratio L35 L35 (EER) 60 Hz: 1.64 |
| Width | 405 mm |
| Height | 1.020 mm |
| Depth | 358 mm |
| Degree of protection IP according to EN 60 529 | External circuit IP 34, internal circuit IP 55 |
| NEMA degree of protection | NEMA 4X |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 0.61 kg, Global Warming Potential (GWP): 631, CO₂ Equivalent (CO₂e): 0.38 t |
| Temperature control | e-Comfortcontroller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.8 kW, Rated power L35 L35/60 Hz: 0.98 kW, Rated power L35 L50/50 Hz: 0.87 kW, Rated power L35 L50/60 Hz: 1.15 kW |
| Permissible operating pressure (p max.) | 28 bar |
| Fuse | Motor protection switch: 6.3...10 A |
