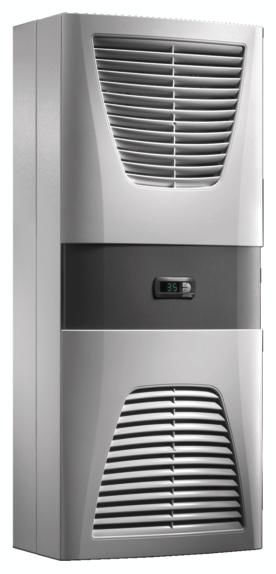

Rittal 3305500 SK Blue e cooling unit, Wall-mounted, 1.6 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 400x950x260 mm

Your rating:
Average rating
Rating for Rittal 3305500 SK Blue e cooling unit, Wall-mounted, 1.6 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 400x950x260 mm
( 4.5 / 5 ) 170 ratings
Rittal 3305500
This image may differ from the desired article.
-7% 2.167,78 EUR 2.319,52 EUR
( 2.579,66 EUR incl. VAT )
2025-09-13Delivery time from supplier's stock (ca.) 2 workdaysinfo_outline
In Stock: 1 pieces
1x Rittal 3305500 SK Blue e cooling unit, Wall-mounted, 1.6 kW, 230 V, 1~, 50/60 Hz, Sheet steel, WHD: 400x950x260 mm
Lieske Part No.:733728
Mfg Part No: 3305500
UPC/EAN: 4028177322998
Weight:42.75 kg
Graduated prices net
From piecesPrice per pieces
22.102,75 EUR
42.037,71 EUR
61.972,68 EUR
81.907,65 EUR

Product information for Rittal 3305500:

Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177322998
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855

Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 1.6 kW
L 35 L 35 at 60 Hz: 1.76 kW
L 35 L 50 at 50 Hz: 1.25 kW
L 35 L 50 at 60 Hz: 1.37 kW
Air throughput (unimpeded air flow): External circuit: 900 m³/h
Internal circuit: 800 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 400 mm
Height: 950 mm
Depth: 260 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 500 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.87 kW
L 35 L 35 at 60 Hz: 0.98 kW
L 35 L 50 at 50 Hz: 1.03 kW
L 35 L 50 at 60 Hz: 1.15 kW
Rated current (max.): At 50 Hz: 5.5 A
At 60 Hz: 5.8 A
Start-up current max.: At 50 Hz: 12 A
At 60 Hz: 14 A
Pre-fuse: Miniature circuit-breaker/fuse: 16 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.83
Weight/pack: 41 kg
Type: SK 3305.500


Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
