Rittal 3304508 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com

Your rating:
Average rating
product review for Rittal 3304508 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com
( 4.8 / 5 ) 5 ratings

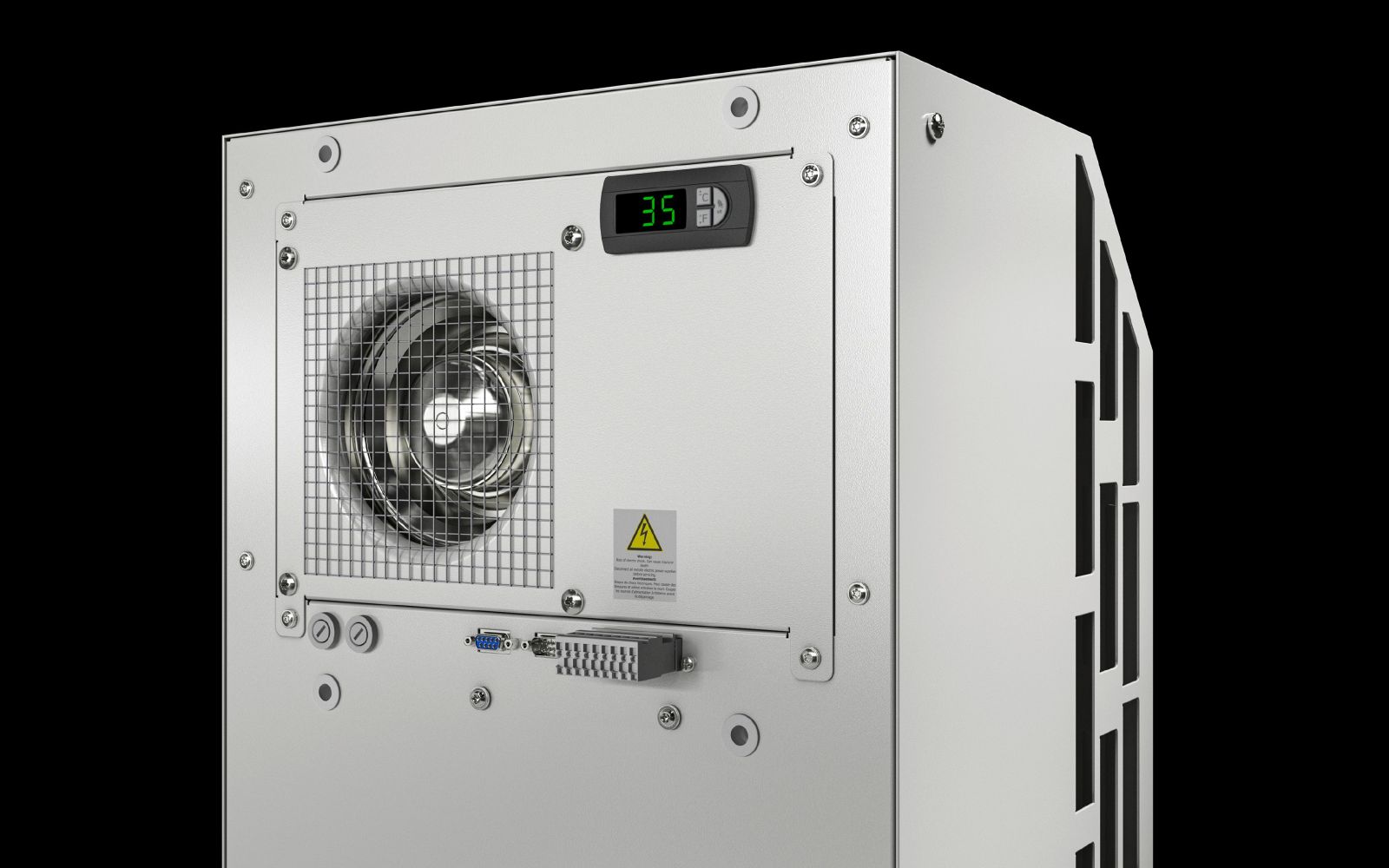

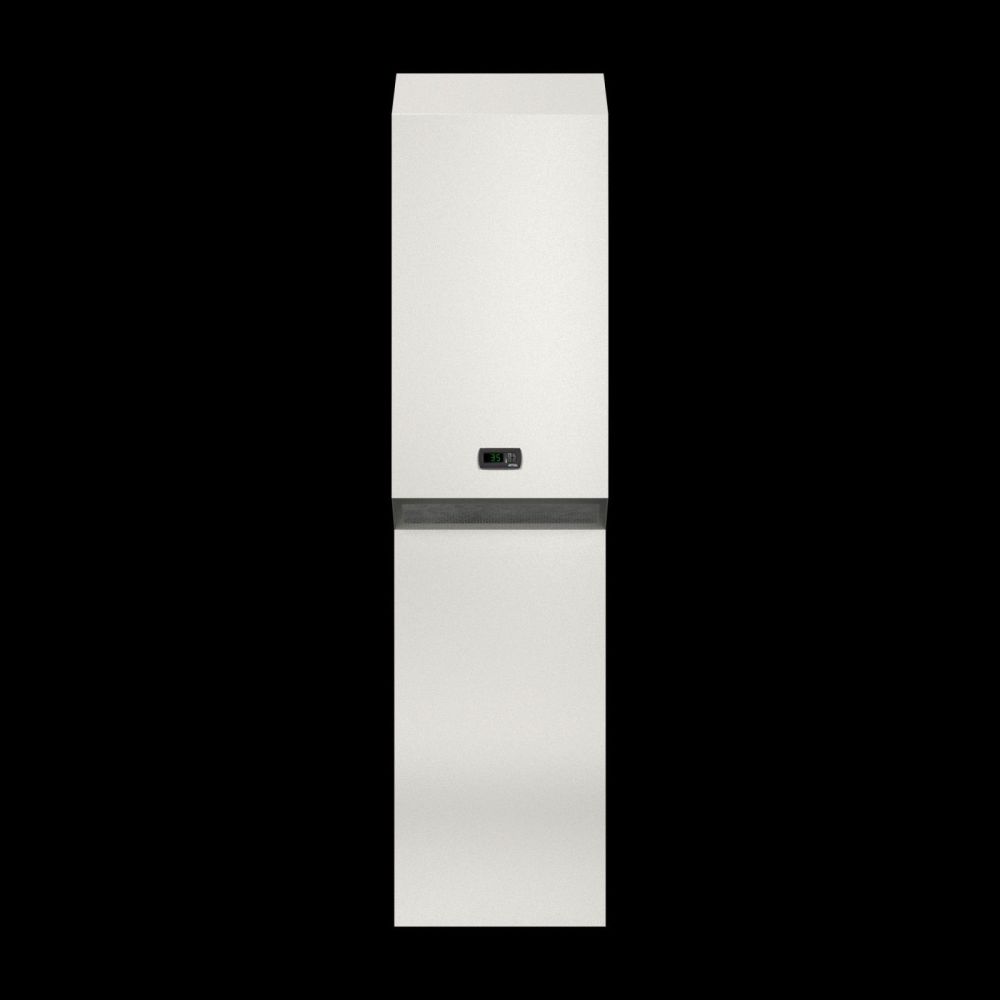

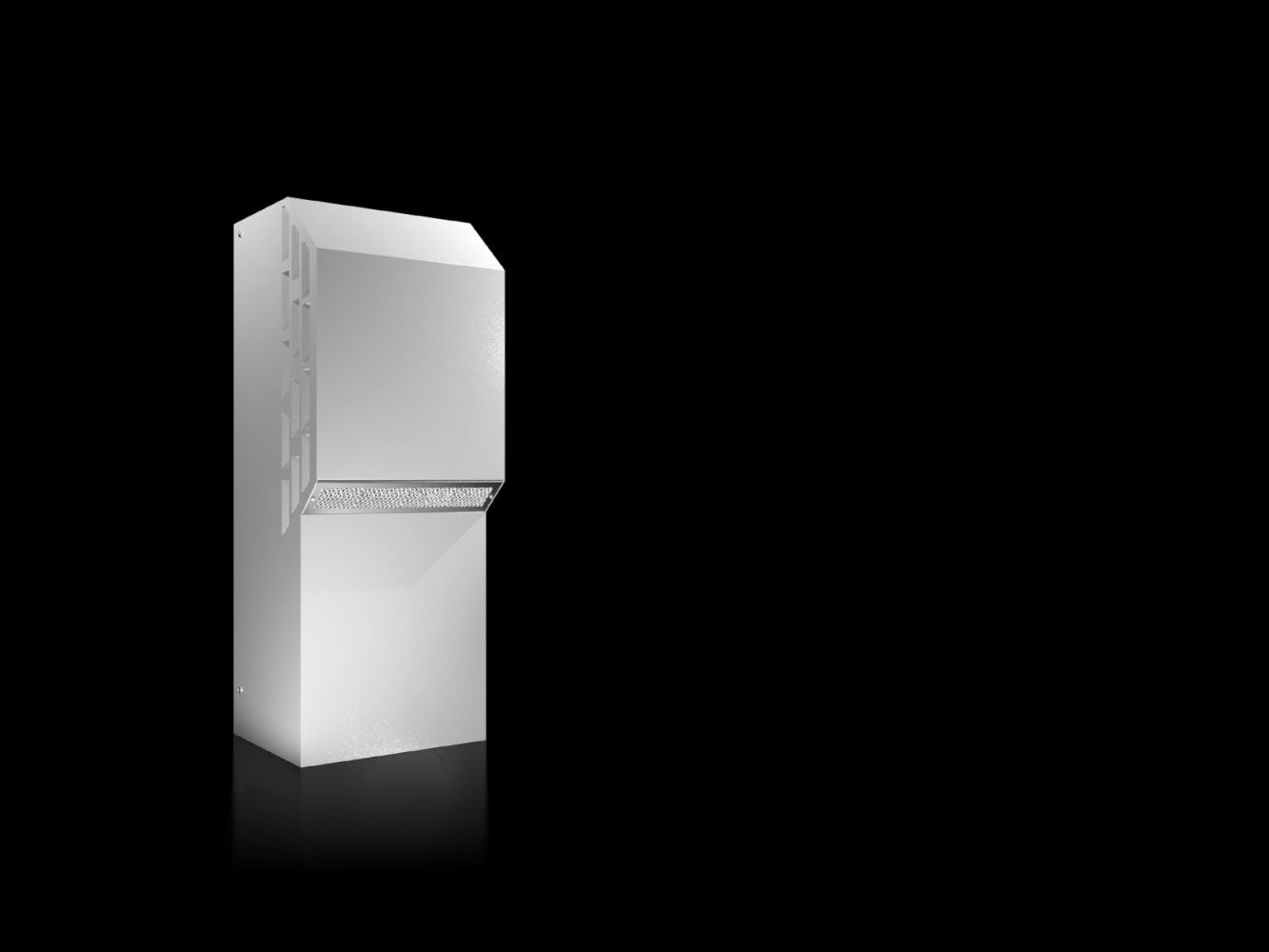

Rittal 3304508
This image may differ from the desired article.
Rittal 3304508Rittal 3304508Rittal 3304508Rittal 3304508Rittal 3304508
1.854,95 EUR
( 2.207,39 EUR incl. VAT )
≈ £1,552.59  |  ≈ $2,038.59
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >25 pieces
1x Rittal 3304508 RTT Blue e cooling unit wall-mounted NEMA 3R/4, 1100 W Com
Datasheet:file_download Download
Lieske Part No.:1597930
Mfg Part No: 3304508
UPC/EAN: 4028177943698
Weight:60 kg
Type:SK 3304508

Product information for Rittal 3304508:

The Rittal SK 3304508 is a wall-mounted cooling unit of the Blue e series, specifically designed for the climate control of enclosures and industrial housings. It features a total cooling capacity of 1.1 kW at 50 Hz and 1.25 kW at 60 Hz, with the cooling capacity decreasing to 0.91 kW (50 Hz) and 0.9 kW (60 Hz) at an ambient temperature of 50 °C (L50). The unit is designed for use in industrial environments, particularly for outdoor installation, and offers a rated operating voltage of 230 V, 1~, 50/60 Hz. The maximum rated current draw is 4.1 A at 50 Hz and 5.1 A at 60 Hz, with a starting current reaching up to 12 A (50 Hz) or 14 A (60 Hz). The air performance is 805 m³/h in the outdoor circuit and 600 m³/h in the indoor circuit, ensuring efficient air circulation within the enclosure. Energy efficiency is described by the Energy efficiency ratio (EER) of 1.67 (50 Hz) and 1.52 (60 Hz) under L35 operation. The unit is made of sheet steel and finished in RAL 7035.

Applications
This cooling unit is suitable for use in industrial installations, particularly in enclosures subjected to high thermal loads. It is designed for outdoor installation and meets the protection class UL Type 3R/4/12, indicating high resistance to dust, splashing water, and other environmental influences. The operating temperature range extends from -20 °C to +50 °C, with the compressor cooling mode activated at ambient temperatures above +10 °C. Between -20 °C and +10 °C, only the indoor fan operates, enabling cooling without compressor operation. The storage temperature range is -40 °C to +70 °C, allowing storage under extreme conditions.

Functions and Equipment in Detail
The unit features an integrated e-Comfort controller, factory-set to +35 °C and covering a temperature range of 20 °C to 50 °C. Temperature control is automatic, ensuring a constant internal temperature within the enclosure. A key component of the equipment is the integrated electric condensate evaporation system, standard on cooling units with cooling capacities of 1000 W and above. This prevents condensate formation within the enclosure and reduces maintenance requirements. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and reducing contamination. The unit is pre-wired with a plug-in connection terminal strip and supplied with a drilling template and mounting hardware, simplifying installation.

Technology Explained Simply
The cooling unit operates with refrigerant R-513A, containing 0.325 kg with a Global Warming Potential (GWP) of 631. The CO₂ equivalent is 0.21 t. Cooling capacity is generated by a compressor, activated when ambient temperature is sufficient. Air is cooled in the outdoor circuit via the condenser and circulated into the enclosure via the indoor circuit. Protection class IP 34 for the outdoor circuit and IP 34 for the indoor circuit ensure high protection against dust and water. The maximum operating pressure is 28 bar, ensuring safety under high pressure loads. The pre-fuse is equipped with a 10 A fuse holder/fuse to ensure electrical safety.

Compatibility and Accessories
The cooling unit is equipped with Blue e technology, enabling networking via the IoT interface. This is possible through the Blue e IoT adapter, available for cooling units with 500 W cooling capacity and an e-Comfort controller. Additional accessories such as the SK air deflector for SK 3304/3305, SK Master/Slave cables for SK-bus systems, or door position switches can be used to enhance functionality and integration into existing systems. The use of lifting eyes or support rollers (e.g. TS support roller, VX support roller) facilitates transportation and installation of the unit.

Installation and Mounting
Mounting is done on the wall of the enclosure or surrounding structure. The unit is supplied with a drilling template and mounting hardware, simplifying installation. Electrical connection is made via the plug-in connection terminal strip, which is pre-wired. The ready-to-connect design reduces installation time and minimizes error sources. Dimensions are 405 mm (width) × 1020 mm (height) × 358 mm (depth), allowing placement in standardized enclosures. Weight specifications (net weight 55 kg, gross weight 60 kg) are relevant for planning installation and transport logistics.

Operational Advantages
The Rittal SK 3304508 offers high energy efficiency, particularly at 50 Hz operation with an EER of 1.67. The integrated electric condensate evaporation system reduces maintenance requirements and prevents condensate formation. The high protection class UL Type 3R/4/12 enables safe outdoor use. Networking capability via the IoT interface enables remote monitoring and control, optimizing operational supervision and maintenance. The factory setting of the e-Comfort controller to +35 °C ensures reliable temperature control without additional adjustments. The robust construction from sheet steel in RAL 7035 ensures long service life and high mechanical stability.

General
ModelWall surface mounted
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondenser with hydrophobic RiNano coating, pre-wired (pluggable terminal block), drilling template, mounting material, integrated electrical condensate evaporation
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 1.1 kW, Cooling capacity L35 L35/60 Hz: 1.25 kW, Cooling capacity L35 L50/50 Hz: 0.91 kW, Cooling capacity L35 L50/60 Hz: 0.9 kW
Rated operating voltage230 V, 1~, 50 Hz/60 Hz
Rated current max.At 50 Hz: 4.1 A, At 60 Hz: 5.1 A
Inrush current (max.)At 50 Hz: 12 A, At 60 Hz: 14 A
Air performance (free blowing)External circuit: 805 m³/h, internal circuit: 600 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity factor L35 L35 (EER) 50 Hz: 1.67, Cooling capacity factor L35 L35 (EER) 60 Hz: 1.52
Width405 mm
Height1.020 mm
Depth358 mm
Degree of protection IP according to EN 60 529External circuit IP 34, internal circuit IP 56
NEMA degree of protectionUL Type 3R, UL Type 4, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 0.325 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.21 t
Temperature controle-Comfortcontroller (factory setting +35 °C)
Operating temperature range-20 °C...50 °C
Operation temperatureCompressor cooling mode from +10 °C ambient temperature. In the temperature range -20 °C to +10 °C, only the internal fan is active.
Storage temperature range-40 °C...70 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.66 kW, Rated power L35 L35/60 Hz: 0.82 kW, Rated power L35 L50/50 Hz: 0.77 kW, Rated power L35 L50/60 Hz: 0.89 kW
Permissible operating pressure (p max.)28 bar
FuseCircuit breaker/fuse: 10 A
