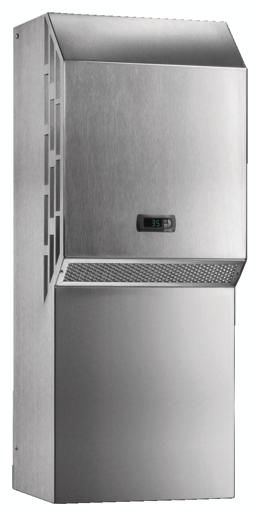

Rittal 3304504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel
|
-5% 3.346,50 EUR 3.515,99 EUR |
|
|
( 3.982,34 EUR incl. VAT ) ≈ £2,874.64 | ≈ $3,835.09 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 929358 |
|---|---|
| Mfg Part No: | 3304504 |
| UPC/EAN: | 4028177384293 |
| Weight: | 0 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3304504:
SK cooling device Blue e, wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, stainless steel, WHD: 405 x 1020 x 358 mm
Product description
Description: Energy-efficient Blue e wall-mounted cooling devices with standard integrated e- Comfort controller, RiNano coating on the condenser and electrical condensate evaporation. NEMA 4X protection rating.
Benefits: Can be networked with the IoT interface via Blue e IoT adapter
Material: Stainless steel 1.4404 (AISI 316L)
Protection class IP according to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Protection class NEMA: with standard filter: NEMA 4X
Scope of delivery: Nano-coated condenser
Wired ready for connection (pluggable connection terminal strip )
Drilling template
Fastening material
Integrated electrical condensate evaporation
Variant: Wall mounting
Total cooling capacity according to DIN EN 14511: L 35 L 35 at 50 Hz: 1.1 kW
L 35 L 35 at 60 Hz: 1.25 kW
L 35 L 50 at 50 Hz: 0.91 kW
L 35 L 50 at 60 Hz: 0.9 kW
Air output (free-blowing): External circuit: 805 m³/h
Internal circuit: 600 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 405 mm
Height : 1020 mm
Depth: 358 mm
Temperature control: e-Comfort controller (factory setting +35 °C)
Temperature range: Operation (ambient): +10 °C...+55 °C
Setting range: +20 °C...+50 ° C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 325 g
Global Warming Potential (GWP): 1430
CO2 equivalent (CO2e): 0.46 t
Rated power Pel: L 35 L 35 at 50 Hz: 0.64 kW
L 35 L 35 at 60 Hz: 0.68 kW
L 35 L 50 at 50 Hz: 0.71 kW
L 35 L 50 at 60 Hz: 0.81 kW
Rated current max.: At 50 Hz: 3.9 A
At 60 Hz: 4.3 A
Starting current (max.): At 50 Hz: 12 A
At 60 Hz: 14 A
Automatic circuit breaker/fuse: 10 A
Permissible operating pressure (p max.): 28 bar
Packaging unit: 1 piece
Weight/PU: 49 kg
EAN: 4028177384293
Customs tariff number : 84158200
ETIM 6.0: EC000855
ETIM 5.0: EC000855
eCl@ss 8.0/8.1: 27180704
eCl@ss 7.0/7.1: 27180704 eCl@
ss 6.0/6.1: 27180704
eCl@ss 5.1/5 .1.4: 27180704
Type: SK 3304504
Product description
Description: Energy-efficient Blue e wall-mounted cooling devices with standard integrated e- Comfort controller, RiNano coating on the condenser and electrical condensate evaporation. NEMA 4X protection rating.
Benefits: Can be networked with the IoT interface via Blue e IoT adapter
Material: Stainless steel 1.4404 (AISI 316L)
Protection class IP according to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Protection class NEMA: with standard filter: NEMA 4X
Scope of delivery: Nano-coated condenser
Wired ready for connection (pluggable connection terminal strip )
Drilling template
Fastening material
Integrated electrical condensate evaporation
Variant: Wall mounting
Total cooling capacity according to DIN EN 14511: L 35 L 35 at 50 Hz: 1.1 kW
L 35 L 35 at 60 Hz: 1.25 kW
L 35 L 50 at 50 Hz: 0.91 kW
L 35 L 50 at 60 Hz: 0.9 kW
Air output (free-blowing): External circuit: 805 m³/h
Internal circuit: 600 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 405 mm
Height : 1020 mm
Depth: 358 mm
Temperature control: e-Comfort controller (factory setting +35 °C)
Temperature range: Operation (ambient): +10 °C...+55 °C
Setting range: +20 °C...+50 ° C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 325 g
Global Warming Potential (GWP): 1430
CO2 equivalent (CO2e): 0.46 t
Rated power Pel: L 35 L 35 at 50 Hz: 0.64 kW
L 35 L 35 at 60 Hz: 0.68 kW
L 35 L 50 at 50 Hz: 0.71 kW
L 35 L 50 at 60 Hz: 0.81 kW
Rated current max.: At 50 Hz: 3.9 A
At 60 Hz: 4.3 A
Starting current (max.): At 50 Hz: 12 A
At 60 Hz: 14 A
Automatic circuit breaker/fuse: 10 A
Permissible operating pressure (p max.): 28 bar
Packaging unit: 1 piece
Weight/PU: 49 kg
EAN: 4028177384293
Customs tariff number : 84158200
ETIM 6.0: EC000855
ETIM 5.0: EC000855
eCl@ss 8.0/8.1: 27180704
eCl@ss 7.0/7.1: 27180704 eCl@
ss 6.0/6.1: 27180704
eCl@ss 5.1/5 .1.4: 27180704
Type: SK 3304504
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 3304504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel?
The article Rittal 3304504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3304504 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3304504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel always at the best possible price. We can give you a discount of 2% on Rittal 3304504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 1.1 kW, 230 V, 1~, 50/60 Hz, Stainless steel if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
