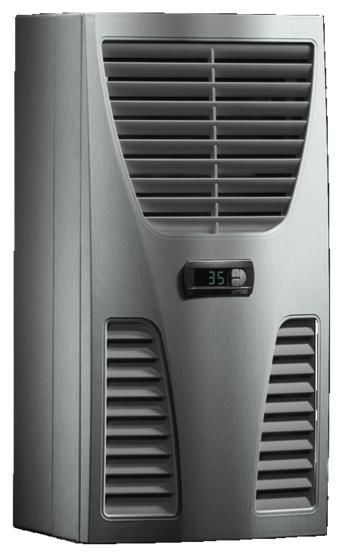

Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm
|
-7% 2.086,66 EUR 2.232,72 EUR |
|||||||||||
|
( 2.483,13 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 808967 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3303600 | ||||||||||
| UPC/EAN: | 4028177379640 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3303600:
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Nano-coated condenser
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177379640
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.55 kW
L 35 L 35 at 60 Hz: 0.66 kW
L 35 L 50 at 50 Hz: 0.33 kW
L 35 L 50 at 60 Hz: 0.4 kW
Air throughput (unimpeded air flow): External circuit: 315 m³/h
Internal circuit: 265 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 280 mm
Height: 550 mm
Depth: 210 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+55°C
Setting range: +20°C...+55°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 170 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.39 kW
L 35 L 35 at 60 Hz: 0.41 kW
L 35 L 50 at 50 Hz: 0.45 kW
L 35 L 50 at 60 Hz: 0.42 kW
Rated current (max.): At 50 Hz: 2.6 A
At 60 Hz: 2.6 A
Start-up current max.: At 50 Hz: 5.1 A
At 60 Hz: 6.4 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.4
Weight/pack: 17 kg
Type: SK 3303.600
Questions & answers
What is the delivery time of Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm?
The article Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3303600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm always at the best possible price. We can give you a discount of 2% on Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Rittal 3303600 SK Blue e cooling unit, Wall-mounted, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 280x550x210 mm we can offer you a price of 2.055,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
