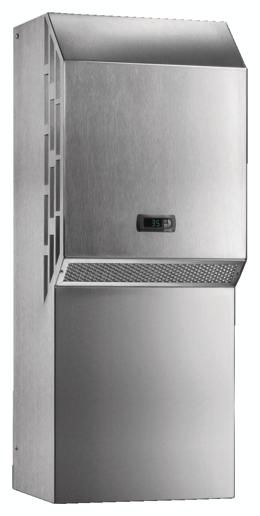

Rittal 3303514 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 0.66 kW, 115 V, 1~, 60 Hz, Stainless steel
|
-5% 2.866,95 EUR 3.012,82 EUR |
|
|
( 3.411,67 EUR incl. VAT ) ≈ £2,462.71 | ≈ $3,285.52 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 808966 |
|---|---|
| Mfg Part No: | 3303514 |
| UPC/EAN: | 4028177384279 |
| Weight: | 0 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3303514:
Material: Stainless steel 1.4404 (AISI 316L)
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Note on Model No.: without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384279
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 60 Hz: 0.66 kW
L 35 L 50 at 60 Hz: 0.4 kW
Air throughput (unimpeded air flow): External circuit: 345 m³/h
Internal circuit: 280 m³/h
Rated operating voltage: 115 V, 1~, 60 Hz
Dimensions: Width: 285 mm
Height: 620 mm
Depth: 298 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 170 g
Power consumption Pel: L 35 L 35 at 60 Hz: 0.47 kW
L 35 L 50 at 60 Hz: 0.5 kW
Rated current (max.): At 60 Hz: 5.7 A
Start-up current max.: At 60 Hz: 11.5 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.31
Weight/pack: 25 kg
Type: SK 3303514
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Note on Model No.: without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384279
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 60 Hz: 0.66 kW
L 35 L 50 at 60 Hz: 0.4 kW
Air throughput (unimpeded air flow): External circuit: 345 m³/h
Internal circuit: 280 m³/h
Rated operating voltage: 115 V, 1~, 60 Hz
Dimensions: Width: 285 mm
Height: 620 mm
Depth: 298 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 170 g
Power consumption Pel: L 35 L 35 at 60 Hz: 0.47 kW
L 35 L 50 at 60 Hz: 0.5 kW
Rated current (max.): At 60 Hz: 5.7 A
Start-up current max.: At 60 Hz: 11.5 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.31
Weight/pack: 25 kg
Type: SK 3303514
