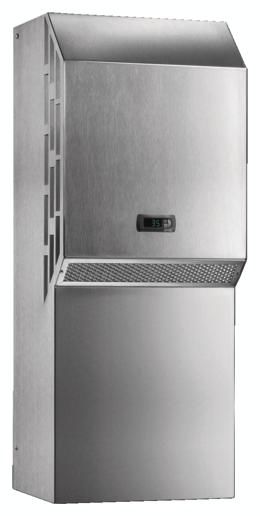

Rittal 3303504 SK Blue e cooling unit, Wall-mounted, NEMA 4X, 0.55 kW, 230 V, 1~, 50/60 Hz, Stainless steel, WHD: 285x620x298 mm
|
-7% 2.946,53 EUR 3.152,79 EUR |
|||||||||||
|
( 3.506,37 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 750660 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3303504 | ||||||||||
| UPC/EAN: | 4028177384255 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3303504:
Protection category NEMA: NEMA 4X
Supply includes: Nano-coated condenser
Integral electric condensate evaporation
Fully wired ready for connection (plug-in terminal strip)
Drilling template
Assembly parts
Note: 3303.XXX without integral condensate evaporation
Note on Model No.: without integral condensate evaporation
Packs of: 1 pc(s).
EAN: 4028177384255
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 0.55 kW
L 35 L 35 at 60 Hz: 0.66 kW
L 35 L 50 at 50 Hz: 0.33 kW
L 35 L 50 at 60 Hz: 0.4 kW
Air throughput (unimpeded air flow): External circuit: 315 m³/h
Internal circuit: 265 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 285 mm
Height: 620 mm
Depth: 298 mm
Temperature control: e-Comfort controller (factory setting +35°C)
Temperature range: Operation (environment): +10°C...+50°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 170 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.36 kW
L 35 L 35 at 60 Hz: 0.38 kW
L 35 L 50 at 50 Hz: 0.42 kW
L 35 L 50 at 60 Hz: 0.39 kW
Rated current (max.): At 50 Hz: 2.6 A
At 60 Hz: 2.6 A
Start-up current max.: At 50 Hz: 5.1 A
At 60 Hz: 6.4 A
Pre-fuse: Miniature circuit-breaker/fuse: 10 A
Permissible operating pressure (p. max.): 28 bar
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1.4
Weight/pack: 25 kg
Type: SK 3303.504
