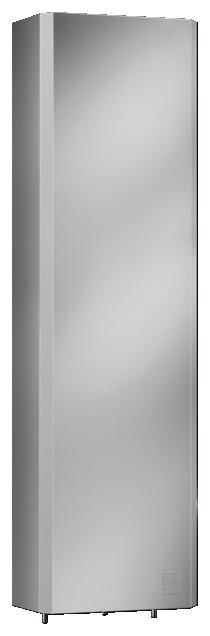

Rittal 3216480 SK Air/water heat exchanger, Wall-mounted, 4.5/7 kW, 400/480 V, 3~, 50/60 Hz, WHD: 450x1800x300 mm, Thermostat-controlled magnetic valve
|
-7% 3.078,82 EUR 3.294,33 EUR |
|||||||||||
|
( 3.663,80 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 357872 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3216480 | ||||||||||
| UPC/EAN: | 4028177458642 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3216480:
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Sealing and assembly parts
Note: Use 3-pole miniature circuit-breaker
Note on Model No.: Extended delivery times.
Packs of: 1 pc(s).
EAN: 4028177458642
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 500 l/h: 7 kW
L 35 W 20 at 500 l/h: 4.5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 3630 m³/h
Internal circuit at 60 Hz: 4670 m³/h
Rated operating voltage: 400 V, 3~, 50 Hz/60 Hz
480 V, 3~, 60 Hz
Dimensions: Width: 450 mm
Height: 1800 mm
Depth: 300 mm
Temperature control: Thermostat-controlled magnetic valve
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Duty cycle: 100 %
Rated current (max.): At 50 Hz: 1.4 A
At 60 Hz: 1.6 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Permissible operating pressure (p. max.): 1 bar - 10 bar
Temperature monitoring: Internal thermostat, with change-over contact, switching load 16 A, setting range +20°C ... +60°C (factory setting +35°C)
Weight/pack: 79 kg
Type: SK 3216.480
