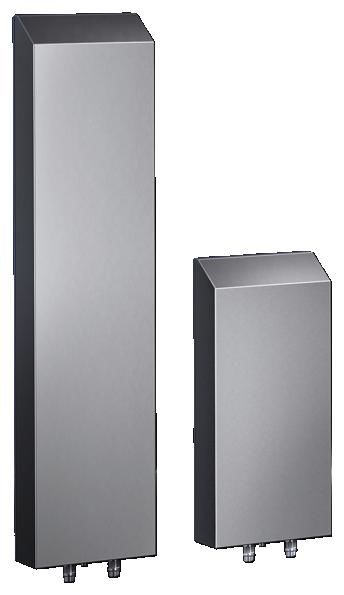

Rittal SK 3215700 air/water heat exchanger HD for wall mounting
|
-7% 1.413,98 EUR 1.512,96 EUR |
|
|
( 1.682,64 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 1130320 |
|---|---|
| Mfg Part No: | 3215700 |
| UPC/EAN: | 4028177806405 |
| Weight: | 0 kg |
Product information for Rittal 3215700:
Product description
Description: Air/water heat exchanger for hygienically sensitive Production areas in the food and beverage industry – the optimal addition to the Rittal Hygienic Design program. The easy-to-clean design reduces the risk of contamination and ensures food safety.
Benefits: Clean-friendly and hygienic design.
A roof pitch of 30° prevents objects from being placed on the ground and allows liquids to drain away quickly.
All-round external, replaceable silicone seal prevents dirt from forming between the housing and the air/water heat exchanger.
Material: Housing: Stainless steel 1.4301 (AISI 304)
Surface: Housing: line grinding, grain 400, roughness < 0.8 µm
Protection class IP according to IEC 60 529: IP 56/59
Protection class NEMA: with standard filter: NEMA 4X
Scope of delivery: Wired ready for connection
Drilling template
Sealed - and fastening material
Note: In order to achieve protection class IP 56/69 according to IEC 60 529, the ingress of leakage air through the condensate drain opening must be completely prevented.
Total cooling capacity: L 35 W 10 at 200 l/h: 1 kW
L 35 W 10 at 400 l/h: 1.2 kW
Air output (free-blowing): Internal circuit at 50 Hz: 680 m³/h
Internal circuit at 60 Hz: 735 m³/ h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 215 mm
Height: 982 mm
Depth: 100 mm
Temperature control: Thermostatically controlled solenoid valve
Temperature range: Operation (ambient): +1 °C...+70 ° C
Setting range: +20 °C...+60 °C
Water flow: +1 °C...+30 °C
Duty cycle: 100%
Rated power Pel: At 50 Hz: 77 W
At 60 Hz: 104 W
Rated current max.: At 50 Hz: 0.38 A
At 60 Hz: 0.47 A
Automatic circuit breaker/fuse: 4 A
Permissible operating pressure (p max.): 1 bar - 10 bar
Temperature monitoring: Device-internal thermostat, with changeover contact, switching capacity 16 A, setting range +20 °C ... +60 °C (factory setting +35 °C)
Water connections: G ?" AG
Packaging unit: 1 piece
Weight/PU: 14 kg
EAN: 4028177806405
Customs tariff number: 84158300
ETIM 6.0: EC002515
ETIM 5.0: EC002515
eCl@ss 8.0/8.1: 27180712
eCl@ss 7.0/7.1: 27180712
eCl@ss 6.0/6.1: 27180712
eCl@ss 5.1/5.1.4: 27180712
Type: SK 3215700
