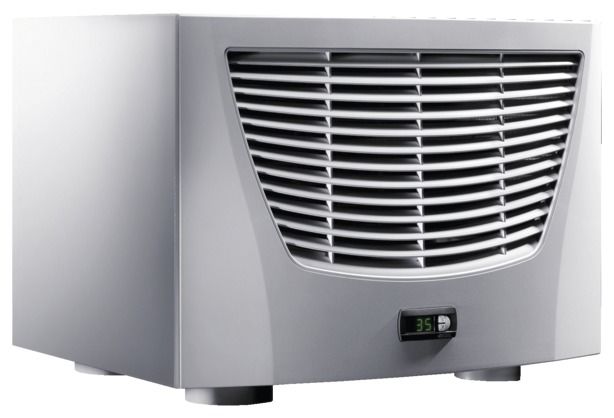

Rittal 3209100 SK Air/water heat exchanger, Roof-mounted, 2.5 kW, 230 V, 1~, 50/60 Hz, WHD: 597x417x475 mm, Basic controller
|
-7% 1.038,34 EUR 1.111,02 EUR |
|||||||||||
|
( 1.235,62 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 403154 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 3209100 | ||||||||||
| UPC/EAN: | 4028177429819 | ||||||||||
| Weight: | 0 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Rittal 3209100:
Colour: RAL 7035
Protection category IP to IEC 60 529: IP 55
Note: IP 55 available on request
Supply includes: Fully wired ready for connection (plug-in terminal strip)
Drilling template
Sealing mat
Assembly parts
Packs of: 1 pc(s).
EAN: 4028177429819
Customs tariff number: 84158300
eCl@ss 5.1: 27180712
eCl@ss 7.0: 27180712
ETIM 6.0: EC002515
Total cooling output: L 35 W 10 at 400 l/h: 2.5 kW
Air throughput (unimpeded air flow): Internal circuit at 50 Hz: 925 m³/h
Internal circuit at 60 Hz: 1030 m³/h
Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 597 mm
Height: 417 mm
Depth: 475 mm
Temperature control: Basic controller (factory setting +35°C)
Temperature range: Operation (environment): +1°C...+70°C
Setting range: +20°C...+55°C
Water inlet: +1°C...+30°C
Refrigerant/cooling medium: Cooling medium: Water (see Internet for specifications)
Type of electrical connection: Plug-in terminal strip
Duty cycle: 100 %
Power consumption Pel: At 50 Hz: 95 W
At 60 Hz: 110 W
Rated current (max.): At 50 Hz: 0.4 A
At 60 Hz: 0.48 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Permissible operating pressure (p. max.): 1 bar - 10 bar
Water connections: ½" connector sleeve
G ?" external thread
Weight/pack: 23.5 kg
Type: SK 3209.100
