Rittal 3201970 Ring core transformer for air/water heat exchanger,

Your rating:
Average rating
product review for Rittal 3201970 Ring core transformer for air/water heat exchanger,
( 4.3 / 5 ) 6 ratings
Rittal 3201970
This image may differ from the desired article.
Rittal 3201970Rittal 3201970
172,62 EUR
( 205,42 EUR incl. VAT )
≈ £144.48  |  ≈ $189.71
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces

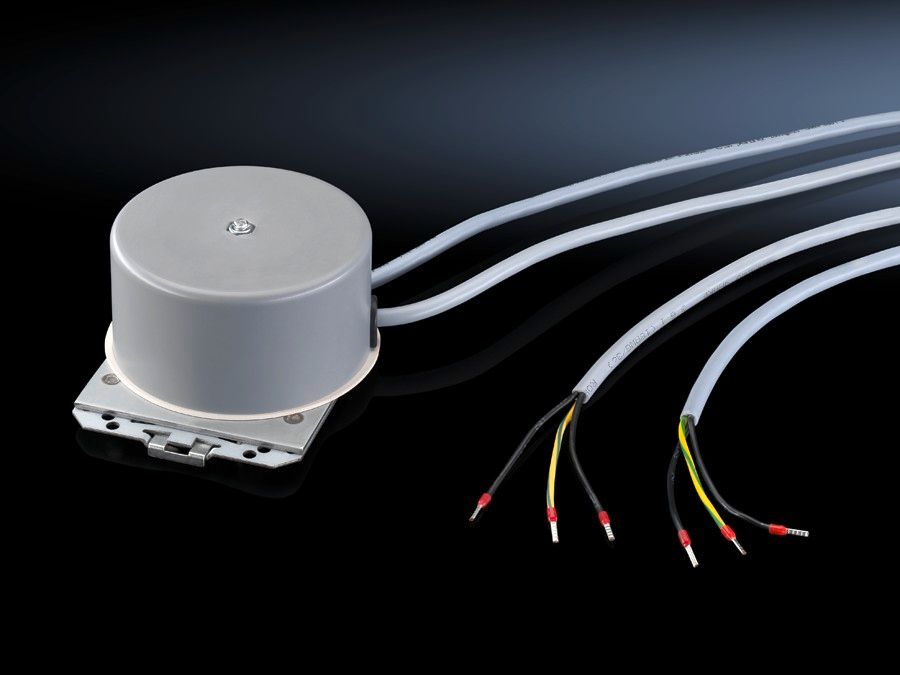

1x Rittal 3201970 Ring core transformer for air/water heat exchanger,
Datasheet:file_download Download
Lieske Part No.:1591270
Mfg Part No: 3201970
UPC/EAN: 4028177690233
Weight:3.56 kg
Type:SK 3201970

Product information for Rittal 3201970:

The Rittal SK 3201970 is a ring core transformer for voltage supply of wall-mounted air/water heat exchangers in 230 V configuration. It serves as a current transformer to adapt the operating voltage from 115 V (primary side) to 230 V (secondary side) and is specifically designed for use in industrial enclosures. The primary application is in climate control technology, where it provides the required voltage for heat exchangers used for cooling or heating enclosures.

Applications

The transformer is designed for use in industrial environments, particularly in enclosures where wall-mounted air/water heat exchangers are installed. These heat exchangers require a 230 V voltage, while the primary supply voltage is often 115 V. The SK 3201970 thus enables direct integration into existing 115 V networks without requiring additional converters or external power supplies. It is compatible with heat exchanger models 3363.X0X, 3364.X0X, 3214.100, 3214.700, 3215.100, and 3215.700.

Functions and Equipment in Detail

The transformer has a rated power of 110 VA and is designed for a voltage tolerance of ±10 %, ensuring stable power supply even with slight fluctuations in mains voltage. The primary connection cable has a length of 3500 mm, while the secondary connection cable is 1500 mm. These lengths allow flexible positioning within the enclosure and simplify wiring. The rated operating voltage is 115 V (primary, 1~, 50 Hz/60 Hz) and 230 V (secondary, 1~, 50 Hz/60 Hz).

Technology Explained Simply

A ring core transformer is characterized by a compact design and high efficiency. The core is ring-shaped, enabling low magnetic leakage, which results in low losses and high energy transfer. Mounting is done on a 35 mm support rail according to EN 50 022, allowing standardized installation in enclosures. The clip-on mounting on TS 35 support rails ensures secure and quick installation without additional tools. Dimensions are 105 mm (width), 123 mm (height), and 55 mm (depth), making the transformer suitable for use in confined enclosure spaces.

Compatibility and Accessories

The transformer is specifically developed for use with the mentioned heat exchanger models. It is not intended for other devices or applications requiring different voltages or power ratings. Compatibility is defined by the specific part numbers (3363.X0X, 3364.X0X, 3214.100, 3214.700, 3215.100, 3215.700).

Mounting and Installation

Mounting is done directly onto the 35 mm support rail EN 50 022. The included mounting hardware enables secure and quick installation. Connections are pre-wired with the specified cables, simplifying wiring within the enclosure. Installation requires no special tools, as the clip-on function on TS 35 support rails is standardized.

Operational Advantages

The transformer provides reliable and efficient voltage adaptation, which is crucial for the continuous operation of heat exchangers in enclosures. Its low height and compact form enable space-saving installation. High voltage tolerance ensures stable operation even with irregular mains voltages. Pre-wired cable connections reduce installation time and minimize wiring errors. Use in combination with the specified heat exchangers ensures optimal performance and compatibility.

Scope of Delivery

The scope of delivery includes the ring core transformer and the required mounting hardware for installation on the support rail.

General
Technical dataPower 110 VA, voltage tolerance ± 10 %, primary connection 3500 mm long, secondary connection 1500 mm long, mounting on 35 mm mounting rail EN 50 022
Scope of deliveryRing core transformer, mounting material
Suitable for part no.3363.X0X, 3364.X0X, 3214.100, 3214.700, 3215.100, 3215.700
Width105 mm
Height123 mm
Depth55 mm
Rated operating voltage115 V (primary), 1~, 50 Hz/60 Hz, 230 V (secondary), 1~, 50 Hz/60 Hz
Mountable on TS 35 mounting railsJa


Product data sheet
Datasheet for Rittal 3201970, EAN: 4028177690233

Questions & answers

What is the delivery time of Rittal 3201970 Ring core transformer for air/water heat exchanger, ?

The article Rittal 3201970 Ring core transformer for air/water heat exchanger, is currently in stock

According to our experience the article is ready for dispatch within 12 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3201970 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Rittal 3201970 Ring core transformer for air/water heat exchanger, always at the best possible price. We can give you a discount of 2% on Rittal 3201970 Ring core transformer for air/water heat exchanger, if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
