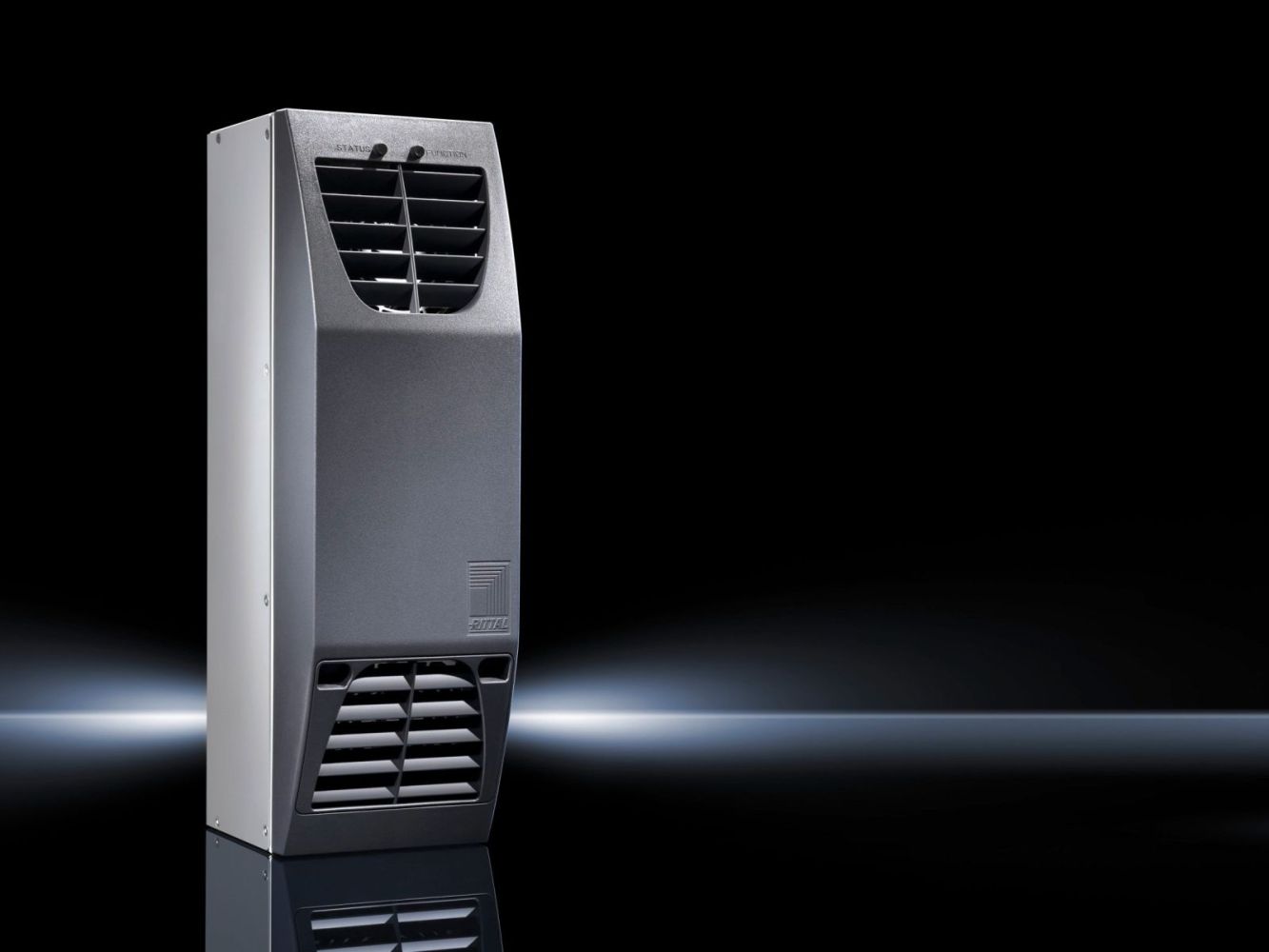

Rittal 3201200 Thermoelectric Cooler 80 W, 110–240 V, with integrated control unit
|
848,23 EUR |
|
|
( 1.009,39 EUR incl. VAT ) ≈ £709.97 | ≈ $932.20 plus delivery charges: 55,00 € |
|
| Delivery time from supplier's stock (ca.) 8 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 414146 |
| Mfg Part No: | 3201200 |
| UPC/EAN: | 4028177598614 |
| Weight: | 4.38 kg |
| Type: | SK 3201200 |
Product information for Rittal 3201200:
Colour: Colour of cover: RAL 7024
Protection category IP to IEC 60 529: External circuit IP 34
Internal circuit IP 34
Supply includes: Thermoelectric climate control unit
Fully wired ready for connection (plug-in terminal strip)
Mounting accessories
Parameterisation software
Packs of: 1 pc(s).
EAN: 4028177598614
Customs tariff number: 84158300
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 100 W
L 35 L 35 at 60 Hz: 100 W
Thermal output: 100 W
Air throughput (unimpeded air flow): External circuit: 50 m³/h
Internal circuit: 50 m³/h
Rated operating voltage: 100 V - 240 V, 1~, 50 Hz/60 Hz
Dimensions: Width: 125 mm
Height: 400 mm
Depth: 155 mm
Installation depth: 100 mm
Temperature range: Operation (environment): -30°C...+55°C
Setting range: Cooling: +5°C...+55°C
Heating: -10°C...+20°C
Type of electrical connection: Plug-in spring connection terminal
Rated current (max.): 1.9 A
Start-up current max.: 6.4 A
Pre-fuse: Miniature circuit-breaker/fuse: 4 A
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 1
Power pack integrated: yes
Weight/pack: 3 kg
| General | |
| Material | Device: aluminium, anodized |
| Basic colour | RAL 7015 |
| Colour | Cover: RAL 7015 |
| Scope of delivery | thermoelectric climate unit, pre-wired (pluggable terminal block), mounting accessories, filter mat, USB cable A/B, drilling template |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 80 W, cooling capacity L35 L35/60 Hz: 80 W |
| Total cooling capacity L35 L30 | Cooling capacity L35 L30/50 Hz: 100 W, Cooling capacity L35 L30/60 Hz: 100 W |
| Rated operating voltage | 100 V - 240 V, 1~, 50 Hz/60 Hz |
| Rated current max. | 1,9 A |
| Locked-rotor current (LRA) | 6,4 A |
| Air performance (free blowing) | External circuit: 45 m³/h, internal circuit: 45 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling capacity factor L35 L35 (EER) 50 Hz: 0.8 |
| Heating power | 80 W |
| Model | Wall surface mounted |
| Width | 125 mm |
| Height | 400 mm |
| Depth | 155 mm |
| Degree of protection IP according to EN 60 529 | External circuit: IP 34, internal circuit: IP 54 |
| Electrical connection type | Plug-in spring terminal |
| Temperature control | PID control (factory setting: cooling +35 °C / heating +5 °C) |
| Operating temperature range | -30 °C...55 °C |
| Cooling adjustment range | 5 °C...55 °C |
| Heating adjustment range | -10 °C...20 °C |
| Fuse | Circuit breaker/fuse: 4 A |
| Integrated power adaptor | |
