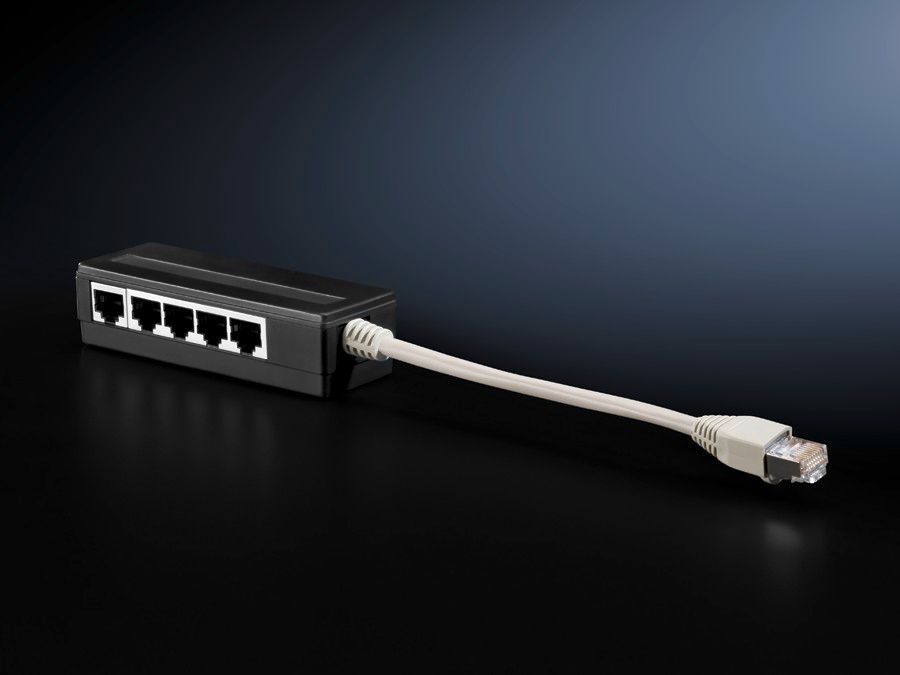

Rittal 3201070 Master/Slave adapter for 3201.200/.300

Your rating:
Average rating
product review for Rittal 3201070 Master/Slave adapter for 3201.200/.300
( 4.5 / 5 ) 2 ratings
Rittal 3201070
This image may differ from the desired article.
Rittal 3201070Rittal 3201070
80,73 EUR
( 96,07 EUR incl. VAT )
≈ £67.57  |  ≈ $88.72
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 12 workdaysinfo_outline
In Stock: >10 pieces
1x Rittal 3201070 Master/Slave adapter for 3201.200/.300
Datasheet:file_download Download
Lieske Part No.:467483
Mfg Part No: 3201070
UPC/EAN: 4028177598690
Weight:0.094 kg
Type:SK 3201070

Product information for Rittal 3201070:

The Rittal SK 3201070 is a Master/Slave adapter, specifically developed for use with Thermoelectric Coolers of article numbers 3201.200 and 3201.300. It enables communication between multiple climate control units within an enclosure system to ensure coordinated and efficient climate control. The adapter allows connection of up to five Thermoelectric Coolers, with one device acting as the Master and up to four additional units connected as Slave devices. This is particularly advantageous in complex bayed enclosure systems, where central control of climate control units ensures uniform temperature behavior.

Applications

The adapter is used in industrial enclosure installations where multiple Thermoelectric Coolers must work in coordination. It is suitable for applications requiring central control of climate control units to minimize thermal stress and ensure operational reliability of installed electronics. The application typically occurs in systems with multiple enclosures arranged side by side, where climate control units communicate via a common control bus.

Functions and Equipment in Detail

The SK 3201070 enables communication between Thermoelectric Coolers via a Master/Slave architecture. The Master controller manages and coordinates the operating states of the Slave devices. This ensures that all connected cooling units operate synchronously and maintain uniform temperature within the enclosure. The adapter is supplied together with a connection cable that establishes the link between the devices. The connection is made via a standardized interface designed for the Rittal Thermoelectric Cooler series.

Technology Explained Simply

The Master/Slave adapter uses serial communication, allowing multiple cooling units to be connected via a common bus. The Master controller sends control commands to the Slave devices, which then execute them. Communication takes place via the included connection cable, establishing the electrical link between the devices. The technology is designed to integrate seamlessly into existing enclosure systems without requiring additional hardware or software modifications.

Compatibility and Accessories

The adapter is specifically designed for Thermoelectric Coolers with article numbers 3201.200 and 3201.300. It is not suitable for other cooling units or manufacturers. These cables can optionally be used for communication with a monitoring system to monitor the operating status of the climate control units.

Installation and Mounting

Installation of the adapter is performed by connecting it to the appropriate interfaces of the Thermoelectric Coolers. The adapter is installed on one of the cooling units designated as the Master. The other cooling units are connected as Slave devices to the Master via the included connection cable. Wiring is carried out according to the technical instructions in the Rittal product documentation. No additional tools or special mounting procedures are required. The connection is mechanically stable and electrically secure to ensure reliable communication.

Operational Advantages

Using the Master/Slave adapter enables centralized control of climate control units, increasing the efficiency and reliability of enclosure climate control. The coordinated operation of cooling units ensures a uniform temperature profile within the enclosure, extending the service life of installed electronics. The simple installation and compatibility with Rittal Thermoelectric Coolers reduce system integration effort. Communication via the Master/Slave architecture allows flexible system scaling, as up to four additional cooling units can be connected.

Scope of Delivery

The scope of delivery includes the Master/Slave adapter and a connection cable. The packaging unit is 1 piece.

General
Scope of deliveryAdapter, connection cable
Suitable for part no.3201.200, 3201.300


Product data sheet
Datasheet for Rittal 3201070, EAN: 4028177598690
