Rittal 3189940 Blue e+ wall-mounted cooling unit, 5800 W, sheet metal

Your rating:
Average rating
product review for Rittal 3189940 Blue e+ wall-mounted cooling unit, 5800 W, sheet metal
( 4.5 / 5 ) 45 ratings

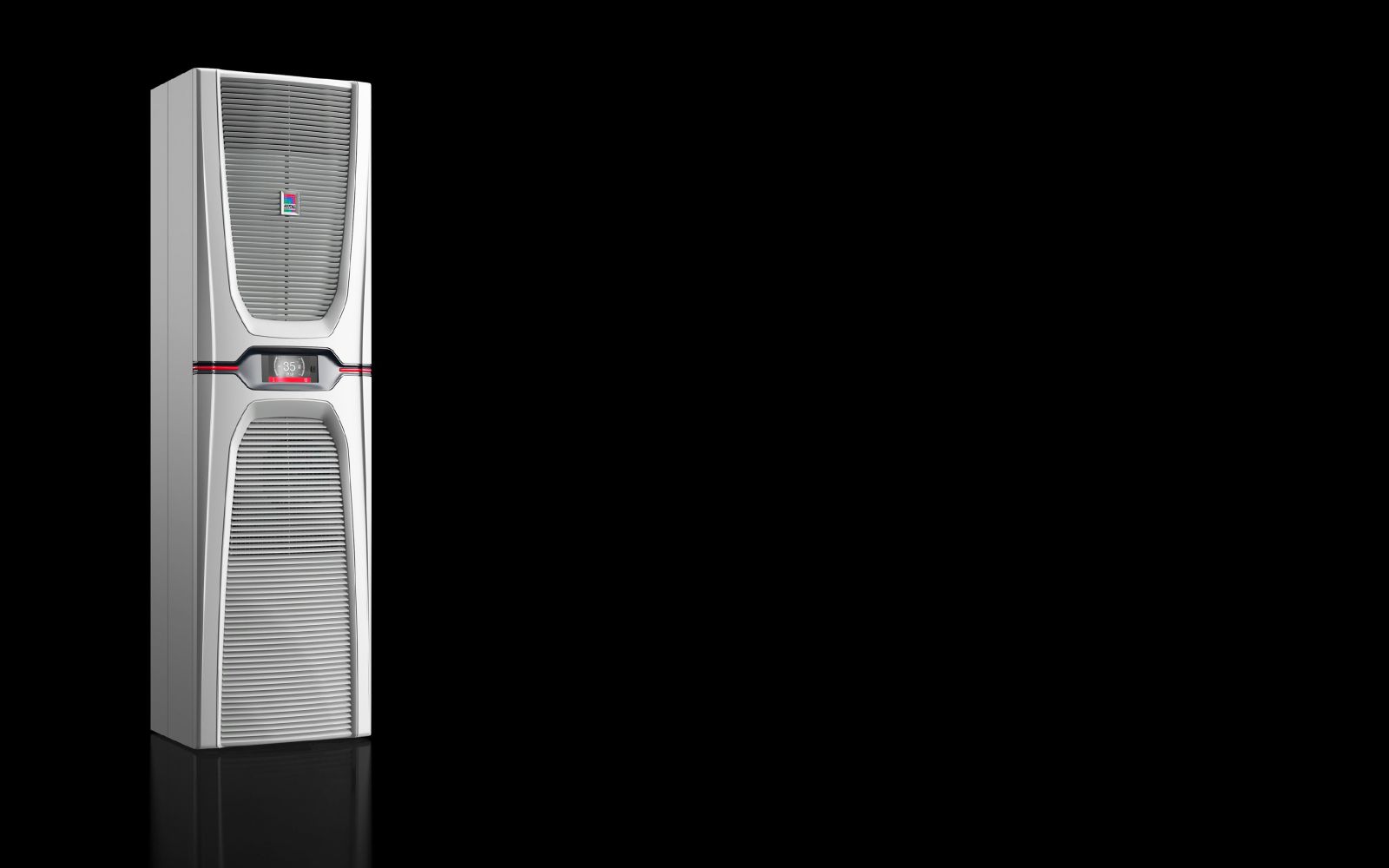

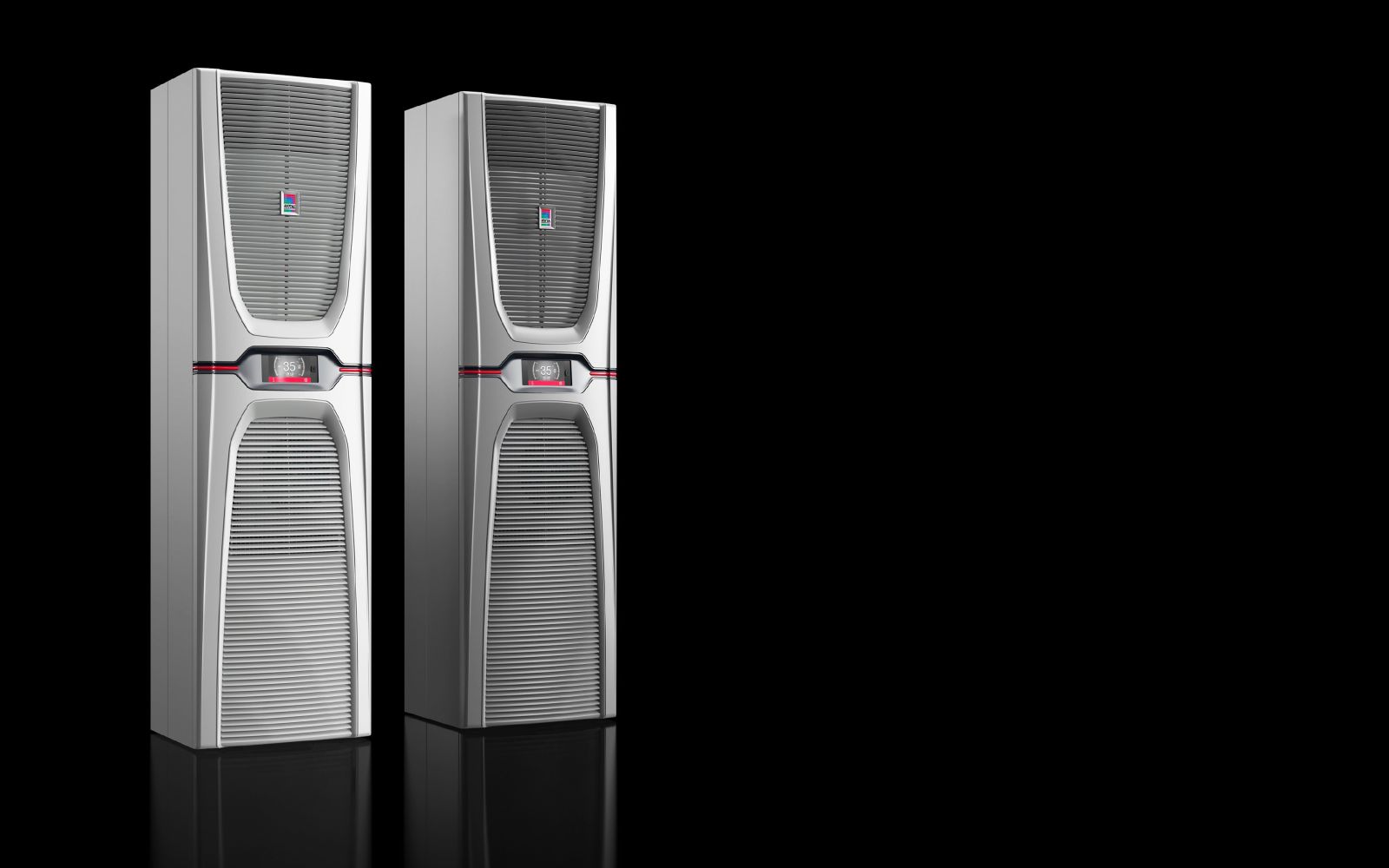

Rittal 3189940
This image may differ from the desired article.
Rittal 3189940Rittal 3189940Rittal 3189940
4.700,86 EUR
( 5.594,02 EUR incl. VAT )
≈ £3,934.62  |  ≈ $5,166.25
plus delivery charges: 55,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >100 pieces
1x Rittal 3189940 Blue e+ wall-mounted cooling unit, 5800 W, sheet metal
Datasheet:file_download Download
Lieske Part No.:1013663
Mfg Part No: 3189940
UPC/EAN: 4028177708075
Weight:0.123 kg
Type:SK 3189940

Product information for Rittal 3189940:

The Rittal SK 3189940 is a wall-mounted cooling unit of the Blue e+ series, designed for climate control of enclosures in semi-outdoor environments. It features a total cooling capacity of 5.5 kW at an operating voltage of 380 V to 480 V, 3~, 50 Hz/60 Hz. The unit is made of sheet steel and available in RAL 7035. Dimensions are 450 mm (width) × 1,600 mm (height) × 393 mm (depth), requiring a mounting cutout of 433 mm (width) × 1,579 mm (height). The cooling unit is not suitable for full enclosure installation.

Applications
This unit is designed for use in industrial environments, particularly in enclosures installed in semi-outdoor areas. Operating temperature ranges are between -20 °C and 60 °C, with the refrigerant circuit operating actively from 3 °C to 60 °C and the Heat Pipe from -20 °C to 45 °C. Storage temperature ranges extend from -40 °C to 70 °C. Temperature control is managed via an e+ controller, factory-set to +35 °C, with an adjustable range from 20 °C to 50 °C.

Functions and Equipment in Detail
The cooling unit features a condenser with hydrophobic RiNano coating, making the surface water-repellent and increasing component lifespan. Integrated electric condensate evaporation ensures efficient removal of condensation. The unit is pre-wired with a plug-in terminal strip and includes mounting hardware. Airflow performance is 2,300 m³/h for both external and internal circuits. Rated power is 2.35 kW, nominal power is 2.2 kW. The refrigerant charge is 1.8 kg R-513A with a Global Warming Potential (GWP) of 631 and a CO₂ equivalent of 1.14 t.

Technology Explained Simply
Cooling capacity is measured according to DIN EN 14511. At an ambient temperature of 35 °C (L35), cooling capacity is 5.5 kW at 50 Hz and 60 Hz. At 50 °C (L50), cooling capacity is 3.95 kW at 50 Hz and 60 Hz. Energy efficiency is indicated by an Energy Efficiency Ratio (EER) of 2.5 at 50 Hz and 60 Hz, and a Seasonal Energy Efficiency Ratio (SEER) of 5.6. Variable-speed components and Heat Pipe technology enable an average energy saving of 75 %. The internal circuit protection rating is IP 55 according to EN 60 529, meaning dust-tight and splash-proof. The NEMA protection rating corresponds to UL Type 12 and UL Type 3R, suitable for industrial environments.

Compatibility and Accessories
For remote monitoring and networking of Blue e+ cooling units, the IoT Interface with part number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages. Accessories include, among others, the SK condensate hose 12 x 2 mm (length 10 m), cover for the connection box (part number 3355.210), metal filters and filter mats for the specified SK models, and an air deflector for SK 3188. / 3189.xxx.

Installation and Mounting
The unit is designed for wall mounting and requires a mounting cutout of 433 mm (width) × 1,579 mm (height). Mounting is done using the included mounting hardware. The unit is pre-wired, simplifying installation. Operating voltage is between 380 V and 480 V, 3~, 50 Hz/60 Hz, with a tolerance of -10 % (342 V) at 380 V and +6 % (509 V) at 480 V. Appropriate overvoltage protection is required: for operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV; for operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV.

Operational Advantages
Variable-speed components and Heat Pipe technology provide gentle component cooling, extending the lifespan of components in both the enclosure and the cooling unit. Integrated electric condensate evaporation reduces maintenance effort. Intuitive operation is provided via the e+ controller. Multi-voltage capability enables worldwide use. Remote monitoring via the IoT Interface increases machine availability and process reliability. Refrigerant R-513A has a lower Global Warming Potential compared to older refrigerants.

General
ModelWall surface mounted
Market-relevant product changesThe cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories.
Materialsteel sheet
ColourRAL 7035
Scope of deliveryCondensate trap with hydrophobic RiNano coating, Integrated electric condensate evaporation, Including mounting material, Pre-wired for connection (pluggable terminal block)
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 5.5 kW, Cooling capacity L35 L35/60 Hz: 5.5 kW, Cooling capacity L35 L50/50 Hz: 3.95 kW, Cooling capacity L35 L50/60 Hz: 3.95 kW
Rated operating voltage380 V - 480 V, 3~, 50 Hz/60 Hz
NoteBy downloading the software, a contract is established between the contracting party and Rittal for the free use of the software according to these license terms. Only suitable for semi-outdoor use (see instruction manual). For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV.
Note on part numberTolerance: 380 V -10 % (342 V) and 480 V +6 % (509 V), full installation not possible
Rated power2,35 kW
Air performance (free blowing)External circuit: 2,300 m³/h, Internal circuit: 2,300 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling capacity ratio L35 L35 (EER) 50 Hz: 2.5, cooling capacity ratio L35 L35 (EER) 60 Hz: 2.5
Seasonal energy efficiency ratio (SEER) 50/60 Hz5,6
Width450 mm
Height1.600 mm
Depth393 mm
Required mounting cutoutCutout width: 433 mm, cutout height: 1,579 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 12, UL Type 3R
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 1.8 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 1.14 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 2.2 kW, Rated power L35 L35/60 Hz: 2.2 kW, Rated power L35 L50/50 Hz: 2.2 kW, Rated power L35 L50/60 Hz: 2.2 kW
Permissible operating pressure (p max.)24 bar
PCF/VE (Cradle-to-Gate)1.168,6


Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect. Though, there will be corresponding surcharges after you send us your order.
Product data sheet
Datasheet for Rittal 3189940, EAN: 4028177708075
