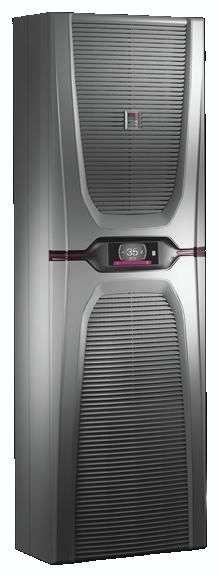

Rittal 3187930 SK Blue e+ cooling unit, Wall-mounted, 2.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450x1600x294 mm
|
3.042,90 EUR 3.065,13 EUR |
|
|
( 3.621,05 EUR incl. VAT ) ≈ £2,610.81 | ≈ $3,526.72 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| In Stock: 1 pieces | |
| Lieske Part No.: | 622229 |
|---|---|
| Mfg Part No: | 3187930 |
| UPC/EAN: | 4028177708068 |
| Weight: | 72.2 kg |
Further Rack-Climatization from RittalFurther products in category Rack-Climatization
All products of Rittal
Product information for Rittal 3187930:
Benefits: 75% energy saved due to speed-regulated components and heat pipe technology
Suitable for international use due to a unique multi-voltage capability
Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
Intuitive operation due to touch display and intelligent interfaces
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: Internal circuit IP 55
Supply includes: Assembly parts
Packs of: 1 pc(s).
EAN: 4028177708068
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.6 kW
L 35 L 35 at 60 Hz: 2.6 kW
L 35 L 50 at 50 Hz: 1.82 kW
L 35 L 50 at 60 Hz: 1.82 kW
Air throughput (unimpeded air flow): External circuit: 1250 m³/h
Internal circuit: 1250 m³/h
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Dimensions: Width: 450 mm
Height: 1600 mm
Depth: 294 mm
Temperature control: e+ controller (factory setting +35°C)
Temperature range: Bearing: -40°C...+70°C
Operation (environment): -20°C...+60°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1150 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.99 kW
L 35 L 35 at 60 Hz: 0.99 kW
L 35 L 50 at 50 Hz: 0.94 kW
L 35 L 50 at 60 Hz: 0.94 kW
Rated output: 1.05 kW
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.63
6.2
Weight/pack: 55.2 kg
Type: SK 3187930
Suitable for international use due to a unique multi-voltage capability
Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling
Intuitive operation due to touch display and intelligent interfaces
Material: Sheet steel
Colour: RAL 7035
Protection category IP to IEC 60 529: Internal circuit IP 55
Supply includes: Assembly parts
Packs of: 1 pc(s).
EAN: 4028177708068
Customs tariff number: 84158200
eCl@ss 5.1: 27180704
eCl@ss 7.0: 27180704
ETIM 6.0: EC000855
Total cooling output to DIN EN 14511: L 35 L 35 at 50 Hz: 2.6 kW
L 35 L 35 at 60 Hz: 2.6 kW
L 35 L 50 at 50 Hz: 1.82 kW
L 35 L 50 at 60 Hz: 1.82 kW
Air throughput (unimpeded air flow): External circuit: 1250 m³/h
Internal circuit: 1250 m³/h
Rated operating voltage: 110 V - 240 V, 1~, 50 Hz/60 Hz
380 V - 480 V, 3~, 50 Hz/60 Hz
Dimensions: Width: 450 mm
Height: 1600 mm
Depth: 294 mm
Temperature control: e+ controller (factory setting +35°C)
Temperature range: Bearing: -40°C...+70°C
Operation (environment): -20°C...+60°C
Setting range: +20°C...+50°C
Refrigerant/cooling medium: Refrigerant: R134a
Quantity: 1150 g
Power consumption Pel: L 35 L 35 at 50 Hz: 0.99 kW
L 35 L 35 at 60 Hz: 0.99 kW
L 35 L 50 at 50 Hz: 0.94 kW
L 35 L 50 at 60 Hz: 0.94 kW
Rated output: 1.05 kW
Energy efficiency ratio (EER) 50 Hz L35 L35 to DIN EN 14511: 2.63
6.2
Weight/pack: 55.2 kg
Type: SK 3187930
Please note...
This article has over-weight and though needs to be transported by a forwarding agency. Please mind, that the calculation of the delivery charges in the shopping cart disregard this aspect.
Though, there will be corresponding surcharges after you send us your order.
Questions & answers
What is the delivery time of Rittal 3187930 SK Blue e+ cooling unit, Wall-mounted, 2.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450x1600x294 mm?
The article Rittal 3187930 SK Blue e+ cooling unit, Wall-mounted, 2.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450x1600x294 mm is currently in stock
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 3187930 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 3187930 SK Blue e+ cooling unit, Wall-mounted, 2.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450x1600x294 mm always at the best possible price. We can give you a discount of 2% on Rittal 3187930 SK Blue e+ cooling unit, Wall-mounted, 2.6 kW, 110-240 V, 1~, 380-480 V, 3~, 50-60 Hz, Sheet steel, WHD: 450x1600x294 mm if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
