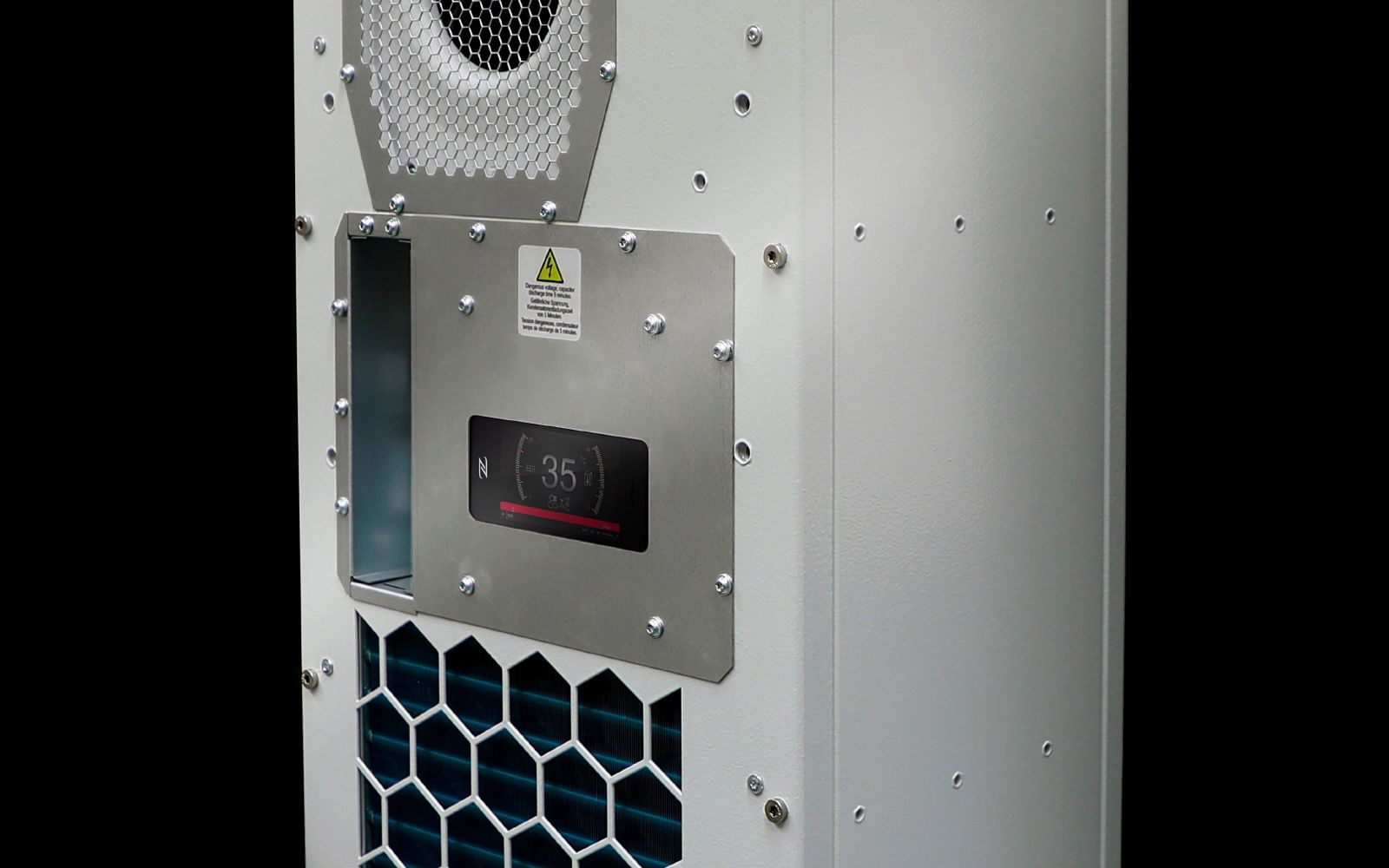

Rittal 3186330 Blue e+ wall-mounted cooling unit Outdoor, 2000 W
|
4.143,45 EUR |
|
|
( 4.930,71 EUR incl. VAT ) ≈ £3,468.07 | ≈ $4,553.65 plus delivery charges |
|
| Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline | |
| In Stock: >10 pieces | |
| Datasheet: | file_download Download |
|---|---|
| Lieske Part No.: | 1101768 |
| Mfg Part No: | 3186330 |
| UPC/EAN: | 4028177967335 |
| Weight: | 74 kg |
| Type: | SK 3186330 |
Product information for Rittal 3186330:
Applications
This cooling unit is designed for demanding environments requiring high protection ratings and a wide operating temperature range. It is suitable for use with Toptec enclosures with a minimum width of 800 mm and a minimum height of 1,800 mm. The operating temperature range is from -30 °C to 60 °C, with the refrigerant circuit operating actively between 3 °C and 60 °C and the heat pipe operating between -30 °C and 45 °C. Protection rating IP 56 (with mounting frame) or IP 56 (without mounting frame), as well as NEMA protection rating UL Type 12/3R/4 (with mounting frame) or UL Type 12/3R (without mounting frame), ensure high protection against dust, splashing water, and other environmental influences. Storage is possible in the range of -40 °C to 70 °C.
Functions and Equipment in Detail
The unit features an integrated e+ controller, factory-set to an internal temperature of +35 °C. The adjustable range is between 20 °C and 50 °C. The integrated electrical condensate evaporation ensures efficient dehumidification, eliminating the need for an external drain. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and reducing contamination. The unit is pre-wired with a plug-in terminal block and supplied with a mounting frame and fastening materials to enable universal mounting on various enclosure types.
Technology Explained Simply
The cooling capacity is measured according to DIN EN 14511 and amounts to 2.0 kW under L35 conditions (external temperature 35 °C, internal temperature 25 °C) at 50 Hz and 60 Hz. Under L50 conditions (external temperature 50 °C, internal temperature 25 °C), the cooling capacity is 1.29 kW. Energy efficiency is described by the Energy Efficiency Ratio (EER) of 2.86 at 50 Hz and 60 Hz, indicating efficient performance. Air flow rate is 1,250 m³/h in both external and internal circuits. The refrigerant is R-513A with a quantity of 1.07 kg, a Global Warming Potential (GWP) of 631, and a CO₂ equivalent of 0.68 t. The rated power is 0.85 kW, with nominal power Pel at 0.7 kW (L35/50 Hz and L35/60 Hz) or 0.68 kW (L50/50 Hz and L50/60 Hz). The sound pressure level is 70 dB(A), representing an acoustically acceptable operating noise level.
Compatibility and Accessories
The cooling unit is compatible with Toptec enclosures and fits article numbers 9782.828 and 9783.888. Accessories include, among others, a thermostat for internal temperature control, a condensate hose (12 x 2 mm, length 10 m), a cover for the connection box (article number 3355.210), a hygrostat, a door position switch, a temperature sensor for Blue e+ cooling units, and a support roller (TS and VX). For remote monitoring and networking of Blue e+ units, the IoT Interface (article number 3124.300) can be used to monitor device data, statuses, and system messages.
Installation and Mounting
Mounting is done using the included mounting frame, enabling universal fastening to outdoor enclosures. Fastening materials are included in the delivery scope. Installation is available in three variants: surface-mounted, partial-insertion, or full-insertion. The pre-wired connection with a plug-in terminal block simplifies electrical connection.
Operational Advantages
Thanks to speed-controlled components and heat pipe technology, an average energy saving of 75 % is achieved. The component-friendly cooling extends the service life of components in the enclosure and the cooling unit itself. Intuitive operation is provided by the e+ controller, which can also be used for remote monitoring. The integrated condensate evaporation reduces maintenance effort, as no external drain is required. The high protection rating IP 56 and UL Type 12/3R/4 allow use in harsh environments, with an operating temperature range of -30 °C to 60 °C ensuring broad application versatility. The multi-voltage capability of the unit enables worldwide use.
| General | |
| Model | Wall mounting, Outdoor |
| Market-relevant product changes | The cover for the connection box to protect the electrical connection on the cooling unit is no longer included in the scope of delivery from the beginning of 2024. The covers 3355.200 and 3355.210 can be ordered optionally as accessories. |
| Material | Aluminium AlMg3 |
| Surface protection | Powder-coated, UV-resistant pure polyester |
| Colour | RAL 7035 |
| Scope of delivery | Refrigerant with hydrophobic RiNano coating, integrated electric condensate evaporation, pre-wired (pluggable terminal block), mounting frame for universal attachment to outdoor enclosures for surface mounting, panel mounting and flush mounting, incl. mounting material |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 2 kW, Cooling capacity L35 L35/60 Hz: 2 kW, Cooling capacity L35 L50/50 Hz: 1.29 kW, Cooling capacity L35 L50/60 Hz: 1.29 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz, 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Note | By downloading the software, a contract is established between the partner and Rittal for the free use of the software according to these license terms. For protection of Blue e+ cooling units, appropriate surge protection must be provided: - Operating voltage < 460 V (3~): Uc 275 V, Imax 40 kA, In 20 kA, Up 1.5 kV. - Operating voltage > 460 V (3~): Uc 385 V, Imax 40 kA, In 20 kA, Up 1.5 kV. |
| Note on part number | Tolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V) / 380 V -10 % (342 V) and 480 V +6 % (509 V) |
| Rated power | 0,85 kW |
| Rated power Pel | Rated power L35 L35/50 Hz: 0.7 kW, Rated power L35 L35/60 Hz: 0.7 kW, Rated power L35 L50/50 Hz: 0.68 kW, Rated power L35 L50/60 Hz: 0.68 kW |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Width | 465 mm |
| Height | 1.640 mm |
| Depth | 260 mm |
| Device dimensions including gasket frame and design hood | Width: 517 mm, Height: 1,692 mm, Depth: 260 mm |
| Mounting type | Universal installation (surface mounting, partial installation, full installation) |
| Degree of protection IP according to IEC 60 529 | With mounting frame: internal circuit IP 56, without mounting frame: internal circuit IP 54 |
| NEMA degree of protection | with mounting frame: UL Type 12/3R/4, without mounting frame: UL Type 12/3R |
| Air performance (free blowing) | External circuit: 1,250 m³/h, internal circuit: 1,250 m³/h |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 1.07 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.68 t |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance coefficient L35 L35 (EER) 50 Hz: 2.86, cooling performance coefficient L35 L35 (EER) 60 Hz: 2.86 |
| Suitable for | Housing type: Toptec, width: ≥ 800 mm, height: ≥ 1,800 mm |
| Suitable for part no. | 9782.828, 9783.888 |
| Adjustment range | 20 °C...50 °C |
| Operating temperature range | -30 °C...60 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -30 °C...45 °C |
| Storage temperature range | -40 °C...70 °C |
| Permissible operating pressure (p max.) | 2.4 MPa |
| Sound pressure level | 70 dB(A) |
| PCF/VE (Cradle-to-Gate) | 1.051,14 |
