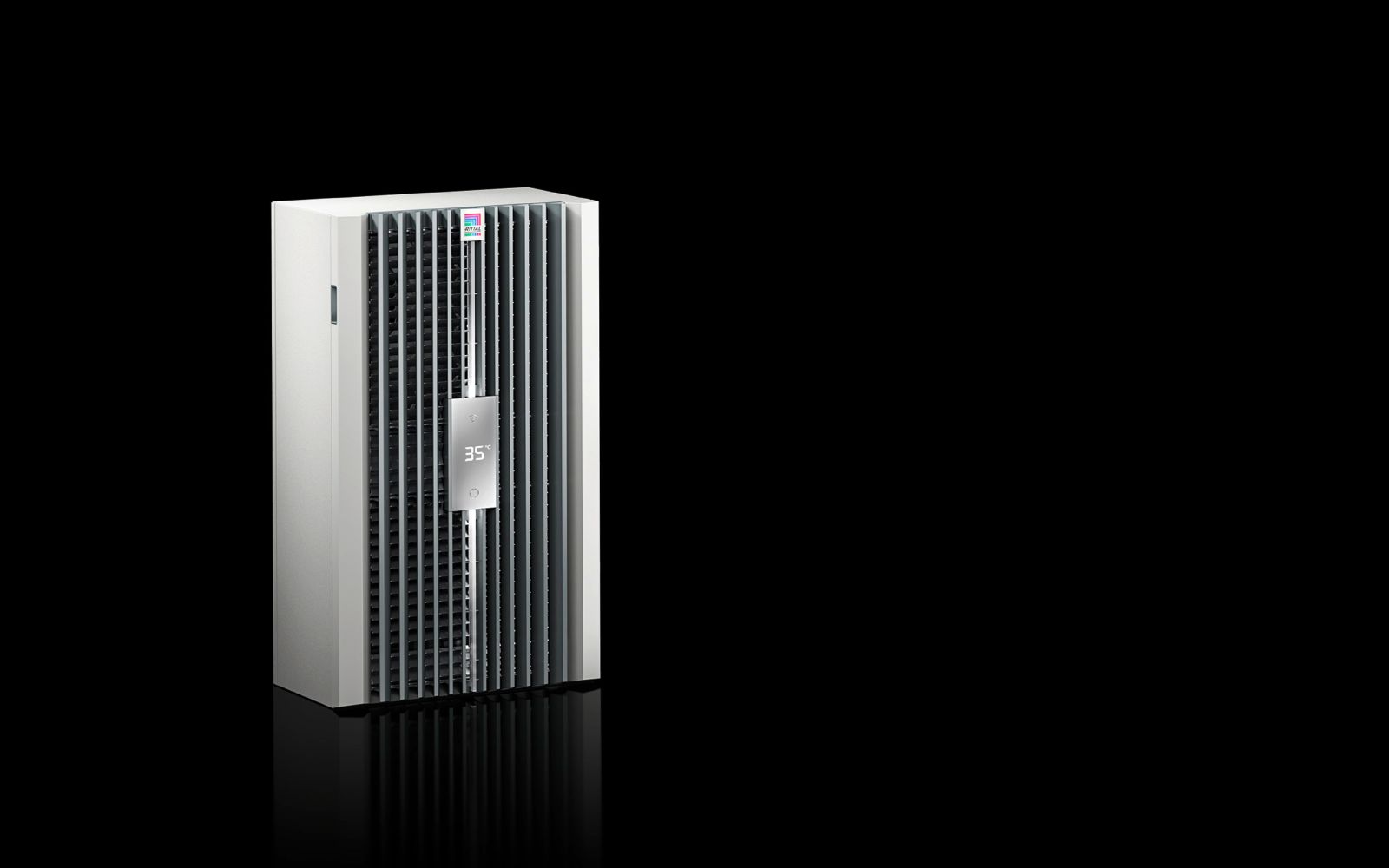

Rittal 3180800 Wall-mounted cooling unit Blue e+ S 0.3 kW – 1 kW
|
1.479,65 EUR 1.513,40 EUR |
|
|
( 1.760,78 EUR incl. VAT ) ≈ £1,238.47 | ≈ $1,626.14 plus delivery charges: 148,00 € |
|
| Delivery time from supplier's stock (ca.) 4 workdaysinfo_outline | |
| In Stock: >100 pieces | |
| Lieske Part No.: | 1104100 |
|---|---|
| Mfg Part No: | 3180800 |
| UPC/EAN: | 4028177966833 |
| Weight: | 16.95 kg |
| Type: | SK 3180800 |
Product information for Rittal 3180800:
Applications
This cooling unit is suitable for industrial applications requiring controlled temperature within enclosures. It is used in environments where the operating temperature ranges between -20 °C and 60 °C. Storage temperature can reach up to 70 °C. Cooling capacity is 0.78 kW at an ambient temperature of 35 °C (L35) and operating voltage of 50 Hz or 60 Hz. At an ambient temperature of 50 °C (L50), cooling capacity is 0.44 kW. Air flow in free air stream is 378 m³/h for both outdoor and indoor circuits. Energy efficiency is described by a coefficient of performance (EER) of 1.9 at 50 Hz and 60 Hz, indicating efficient cooling with moderate energy consumption.
Functions and Equipment in Detail
The unit features an e+ controller pre-set at the factory to +35 °C. The adjustable range is between 20 °C and 50 °C, allowing the enclosure temperature to be adapted to specific requirements. An integrated condensate evaporation system ensures that generated condensate is electrically evaporated, eliminating the need for drainage. The condenser is coated with a hydrophobic RiNano coating, which reduces water absorption and extends the unit’s lifespan. The unit is pre-wired for connection and includes a plug-in terminal strip, simplifying installation. The delivery includes the cooling unit, mounting materials, and integrated electrical condensate evaporation.
Technology Explained Simply
The cooling unit operates with refrigerant R-513A, which has low environmental impact. The quantity is 0.19 kg, with a Global Warming Potential (GWP) of 631 and CO₂ equivalent of 0.12 t. Operating voltage is 110 V to 240 V, 1~, with a tolerance of -10 % (99 V) at 110 V and +10 % (264 V) at 240 V. Rated power is 0.56 kW, with nominal power varying between 0.41 kW and 0.49 kW depending on operating conditions. Maximum operating pressure is 35 bar. The indoor circuit protection rating corresponds to IP 55 per EN 60 529, providing dust and splash water protection. The NEMA protection rating corresponds to UL Type 1 and UL Type 12, suitable for indoor use and lightly contaminated environments.
Compatibility and Accessories
For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Compatible accessories include, among others, a condensate hose (12 x 2 mm, length 10 m), a support roller for TS, SE, PC, a door position switch, metal filters for SK 3178.80x/3179.80x, a filter mat for cooling units, a temperature sensor for Blue e+ cooling units, and a VX support roller.
Mounting and Installation
Mounting is done on the wall of the enclosure, requiring a cutout of 280 mm (width) × 550 mm (height). The unit is pre-wired, so electrical connection is made via the plug-in terminal strip. Mounting materials are included in the delivery. Mounting instructions are described in the manual and must be followed.
Operational Advantages
The cooling unit offers high energy efficiency with an average saving of 75 % compared to conventional solutions, contributing to reduced CO₂ footprint. Global usability is enabled by multi-voltage capability and country-specific approvals. Convenient operation is provided via the Rittal Scan & Service App. The integrated electrical condensate evaporation reduces maintenance effort, as no drainage is required. The hydrophobic RiNano coating on the condenser increases the unit’s lifespan and reliability.
| General | |
| Model | Wall surface mounted |
| Material | steel sheet |
| Basic colour | RAL 7035 |
| Colour | Housing: RAL 7035, louver grille: RAL 7012 |
| Scope of delivery | Condenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation |
| Options | For remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages. |
| Total cooling capacity according to DIN EN 14511 | Cooling capacity L35 L35/50 Hz: 0.78 kW, cooling capacity L35 L35/60 Hz: 0.78 kW, cooling capacity L35 L50/50 Hz: 0.44 kW, cooling capacity L35 L50/60 Hz: 0.44 kW |
| Rated operating voltage | 110 V - 240 V, 1~, 50 Hz/60 Hz |
| Note | Please note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description) |
| Note on part number | Tolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V) |
| Rated power | 0,56 kW |
| Air performance (free blowing) | External circuit: 378 m³/h, internal circuit: 378 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Cooling performance ratio L35 L35 (EER) 50 Hz: 1.9, Cooling performance ratio L35 L35 (EER) 60 Hz: 1.9 |
| Width | 300 mm |
| Height | 570 mm |
| Depth | 250 mm |
| Required mounting cutout | Cutout width: 280 mm, cutout height: 550 mm |
| Degree of protection IP according to EN 60 529 | Internal circuit IP 55 |
| NEMA degree of protection | UL Type 1, UL Type 12 |
| Refrigerant/cooling medium | Refrigerant: R-513A, Quantity: 0.19 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.12 t |
| Temperature control | e+ Controller (factory setting +35 °C) |
| Operating temperature range | -20 °C...60 °C |
| Storage temperature range | -40 °C...70 °C |
| Operating temperature range refrigerant circuit (active) | 3 °C...60 °C |
| Operating temperature range heat pipe | -20 °C...45 °C |
| Adjustment range | 20 °C...50 °C |
| Rated power Pel | rated power L35 L35/50 Hz: 0.41 kW, rated power L35 L35/60 Hz: 0.41 kW, rated power L35 L50/50 Hz: 0.49 kW, rated power L35 L50/60 Hz: 0.49 kW |
| Permissible operating pressure (p max.) | 35 bar |
| PCF/VE (Cradle-to-Gate) | 265,52 |
