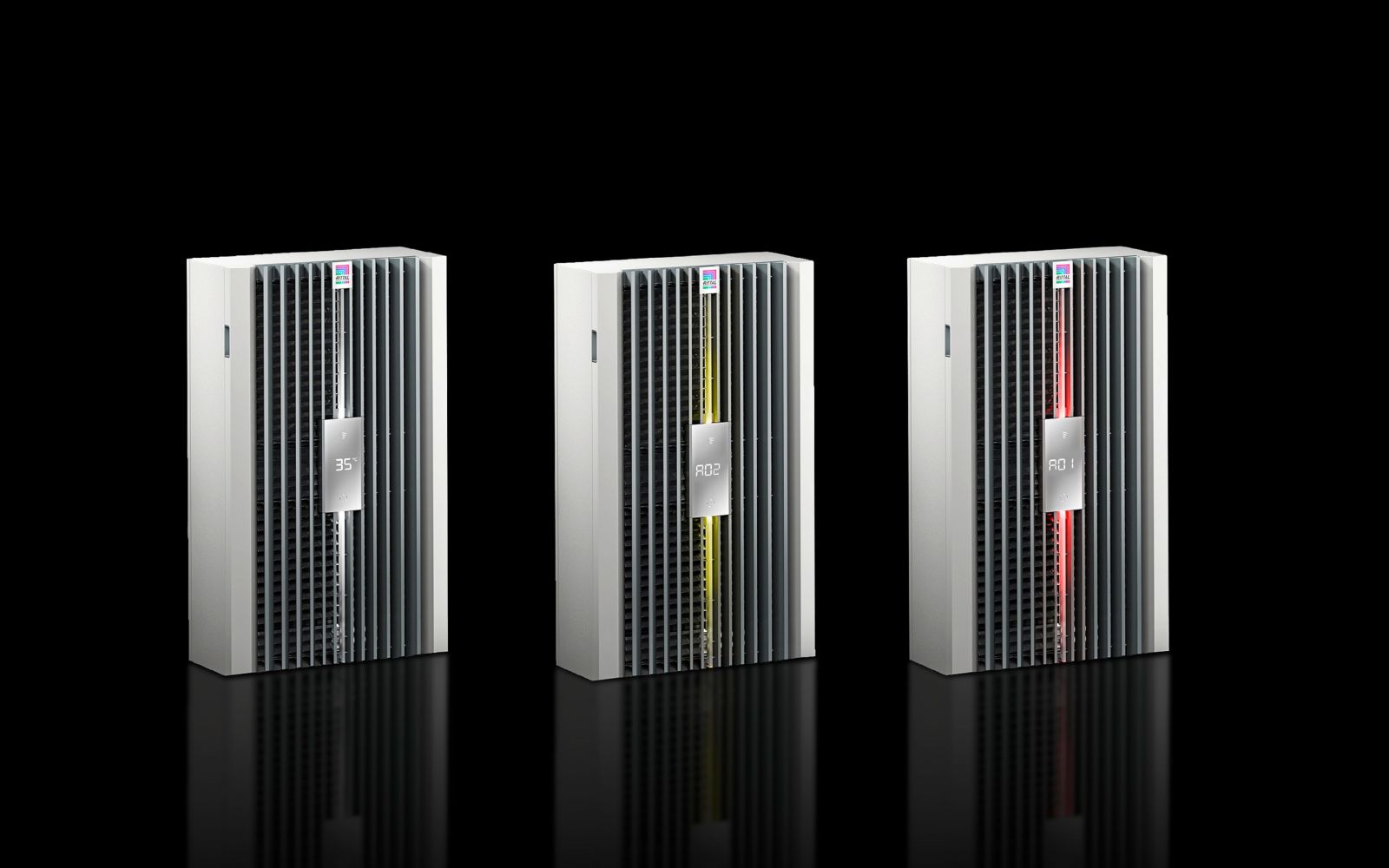

Rittal 3179800 Blue e+ S wall-mounted cooling unit, 500 W, with condensate tray

Your rating:
Average rating
product review for Rittal 3179800 Blue e+ S wall-mounted cooling unit, 500 W, with condensate tray
( 4.3 / 5 ) 3 ratings
Rittal 3179800
This image may differ from the desired article.
Rittal 3179800Rittal 3179800
-5% 1.558,25 EUR 1.637,81 EUR
( 1.854,32 EUR incl. VAT )
≈ £1,304.26  |  ≈ $1,712.52
plus delivery charges: 148,00 €
Delivery time from supplier's stock (ca.) 6 workdaysinfo_outline
In Stock: >50 pieces
1x Rittal 3179800 Blue e+ S wall-mounted cooling unit, 500 W, with condensate tray
Lieske Part No.:1101762
Mfg Part No: 3179800
UPC/EAN: 4028177949966
Weight:13.84 kg
Type:SK 3179800

Product information for Rittal 3179800:

The Rittal SK 3179800 is a wall-mounted cooling unit of the Blue e+ S series, specifically developed for climate control of enclosures and electronic devices in semi-outdoor environments. The unit features a total cooling capacity of up to 0.52 kW at an operating temperature of 35 °C (L35) and a frequency of 50 Hz or 60 Hz. It is designed for a rated operating voltage of 110 V to 240 V, 1~, 50 Hz/60 Hz, with voltage tolerance at 110 V -10 % (99 V) and 240 V +10 % (264 V). The cooling capacity is determined according to DIN EN 14511, with the nominal power Pel at 0.27 kW (L35/50 Hz and 60 Hz) and 0.32 kW (L50/50 Hz and 60 Hz). Energy efficiency is characterised by an energy efficiency ratio (EER) of 1.9 at 50 Hz and 60 Hz (L35 L35). The unit is made of sheet steel, with a base colour of RAL 7035 and the louver grille in RAL 7012. Dimensions are 300 mm (width) × 570 mm (height) × 199 mm (depth), requiring a mounting cutout of 280 mm (width) × 550 mm (height).

Applications

The cooling unit is intended for use in semi-outdoor environments, meaning it can be operated in protected outdoor areas, such as on buildings or in technical rooms with limited weather exposure. It is suitable for maintaining a stable internal temperature in enclosures containing electronic components. The operating temperature range is between -20 °C and 60 °C, with the refrigerant circuit operating actively from 3 °C to 60 °C and the heat pipe from -20 °C to 45 °C. Storage temperature ranges extend from -40 °C to 70 °C.

Functions and Equipment in Detail

The unit features an e+ controller, factory-set to +35 °C, enabling temperature control within a range of 20 °C to 50 °C. The integrated electrical condensate evaporation ensures that condensate is evaporated directly within the unit and does not need to be drained. The condenser is coated with a hydrophobic RiNano coating, improving heat transfer and reducing moisture adhesion. The unit is pre-wired for connection, includes a plug-in terminal strip, and comes with mounting hardware. Air performance is 366.6 m³/h in both the external and internal circuits.

Technology Explained Simply

The cooling unit uses refrigerant R-513A, with a quantity of 0.16 kg and a Global Warming Potential (GWP) of 631. The CO₂ equivalent is 0.1 t. The protection rating of the internal circuit corresponds to IP 55 according to EN 60 529, meaning it is dust-tight and protected against water jets. The NEMA protection rating is UL Type 1 and UL Type 12, suitable for enclosed devices in indoor environments and for devices protected against splashing water. The permissible operating pressure is 32 bar. Air is evenly distributed through the internal and external circuits to ensure efficient cooling.

Compatibility and Accessories

For remote monitoring and networking of Blue e+ generation cooling units, the IoT Interface with article number 3124.300 can be used. This enables monitoring of device data, statuses, and system messages to increase machine availability and process safety. Compatible accessories include a condensate hose (12 x 2 mm, length 10 m), a support roller for TS, SE, PC, a door position switch, metal filters for SK 3178.80x/3179.80x, a filter mat for cooling units, a temperature sensor for Blue e+ cooling units, a VX support roller (8618420), and the IoT Interface.

Mounting and Installation

Mounting is done on a wall, requiring a cutout of 280 mm (width) × 550 mm (height). The unit is supplied with mounting hardware and pre-wired for connection. Mounting instructions are included in the delivery. Installation must take place in a protected area, as the unit is only intended for semi-outdoor use.

Operational Advantages

The cooling unit offers high energy efficiency with an EER of 1.9 and contributes to reducing the CO₂ footprint. Global usability is enabled by multi-voltage capability and country-specific approvals. Convenient operation is provided via the Rittal Scan & Service App. The integrated condensate evaporation and the hydrophobic RiNano coating on the condenser reduce maintenance requirements and improve operational reliability. Remote monitoring via the IoT Interface enables proactive maintenance and increases system availability.

General
ModelWall surface mounted
Materialsteel sheet
Basic colourRAL 7035
ColourHousing: RAL 7035, louver grille: RAL 7012
Scope of deliveryCondenser with hydrophobic RiNano coating, incl. mounting material, pre-wired (pluggable terminal block), integrated electrical condensate evaporation
OptionsFor remote monitoring and networking of cooling units and chillers from the Blue e+ generation, use the IoT interface with article number 3124.300. Increase machine availability and process safety by remotely monitoring device data, statuses and system messages.
Total cooling capacity according to DIN EN 14511Cooling capacity L35 L35/50 Hz: 0.52 kW, Cooling capacity L35 L35/60 Hz: 0.52 kW, Cooling capacity L35 L50/50 Hz: 0.32 kW, Cooling capacity L35 L50/60 Hz: 0.32 kW
Rated operating voltage110 V - 240 V, 1~, 50 Hz/60 Hz
NotePlease note the mounting instructions., By downloading the software, a contract is established between the contracting party and Rittal regarding the free use of the software according to these license terms., Only suitable for semi-outdoor use (see instruction manual for description)
Note on part numberTolerance: 110 V -10 % (99 V) and 240 V +10 % (264 V)
Rated power0,36 kW
Air performance (free blowing)External circuit: 366.6 m³/h, internal circuit: 366.6 m³/h
Energy efficiency ratio (EER) 50/60 Hz L35 L35Cooling performance ratio L35 L35 (EER) 50 Hz: 1.9, Cooling performance ratio L35 L35 (EER) 60 Hz: 1.9
Width300 mm
Height570 mm
Depth199 mm
Required mounting cutoutCutout width: 280 mm, cutout height: 550 mm
Degree of protection IP according to EN 60 529Internal circuit IP 55
NEMA degree of protectionUL Type 1, UL Type 12
Refrigerant/cooling mediumRefrigerant: R-513A, quantity: 0.16 kg, Global Warming Potential (GWP): 631, CO₂ equivalent (CO₂e): 0.1 t
Temperature controle+ Controller (factory setting +35 °C)
Operating temperature range-20 °C...60 °C
Storage temperature range-40 °C...70 °C
Operating temperature range refrigerant circuit (active)3 °C...60 °C
Operating temperature range heat pipe-20 °C...45 °C
Adjustment range20 °C...50 °C
Rated power PelRated power L35 L35/50 Hz: 0.27 kW, rated power L35 L35/60 Hz: 0.27 kW, rated power L35 L50/50 Hz: 0.32 kW, rated power L35 L50/60 Hz: 0.32 kW
Permissible operating pressure (p max.)32 bar
PCF/VE (Cradle-to-Gate)229,14
