Rittal 2262605 EL Wall-mounted enclosures, 3-part, WHD: 600x612x473 mm, 12 U, with mounting plate, and mounting angles, static installation
|
548,96 EUR |
|
|
( 653,26 EUR incl. VAT ) ≈ £472.11 | ≈ $625.81 plus delivery charges |
|
| Made to order · Delivery time approx. 5 workdaysinfo_outline | |
| End-Of-Life: | 31. Jul 2026 |
|---|---|
| Lieske Part No.: | 814403 |
| Mfg Part No: | 2262605 |
| UPC/EAN: | 4028177324404 |
| Weight: | 39 kg |
Further System Accessories from RittalFurther products in category System Accessories
All products of Rittal
Product information for Rittal 2262605:

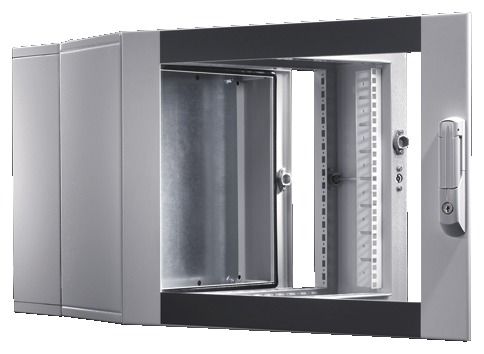

Wall-mounted enclosure with optimum accessibility due to hinged part.
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324404
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 549 mm
Mounting plate: Width: 485 mm
Height: 565 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 60 kg
Weight/pack: 42.7 kg
Type: EL 2262605
Material: Wall and hinged part: Sheet steel, 1.5 mm
Viewing window: Single-pane safety glass, 3 mm
Surface finish: Powder-coated
Colour: Wall and hinged part: RAL 7035
Glazed door: RAL 7035/7015 (slate grey)
Protection category IP to IEC 60 529: IP 55
Supply includes: Wall section
Hinged part with 25 mm pitch pattern of holes in the front and rear frame
Designer glazed door
Wall section: Gland plate, solid, top and bottom
Wall section: Mounting plate (supplied loose)
Hinged part with two 482.6 mm (48,3 cm ( 19 inch )) mounting angles
Mini-comfort handle
Security lock 3524 E
Packs of: 1 pc(s).
EAN: 4028177324404
Customs tariff number: 94032080
eCl@ss 5.1: 27180204
eCl@ss 7.0: 27180208
ETIM 6.0: EC002500
Design: with mounting plate and mounting angles, static installation
Dimensions: Width: 600 mm
Height: 612 mm
Units: 12 U
Depth: 473 mm
Depth hinged part: 316 mm
Installation depth: 420 mm
Clearances: Clearance width: 502 mm
Clearance height: 549 mm
Mounting plate: Width: 485 mm
Height: 565 mm
Wall section: Depth: 135 mm
Load capacity: Hinged part, static (max.): 60 kg
Weight/pack: 42.7 kg
Type: EL 2262605
