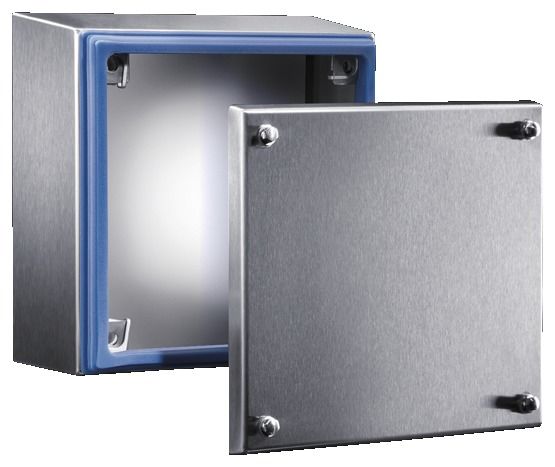

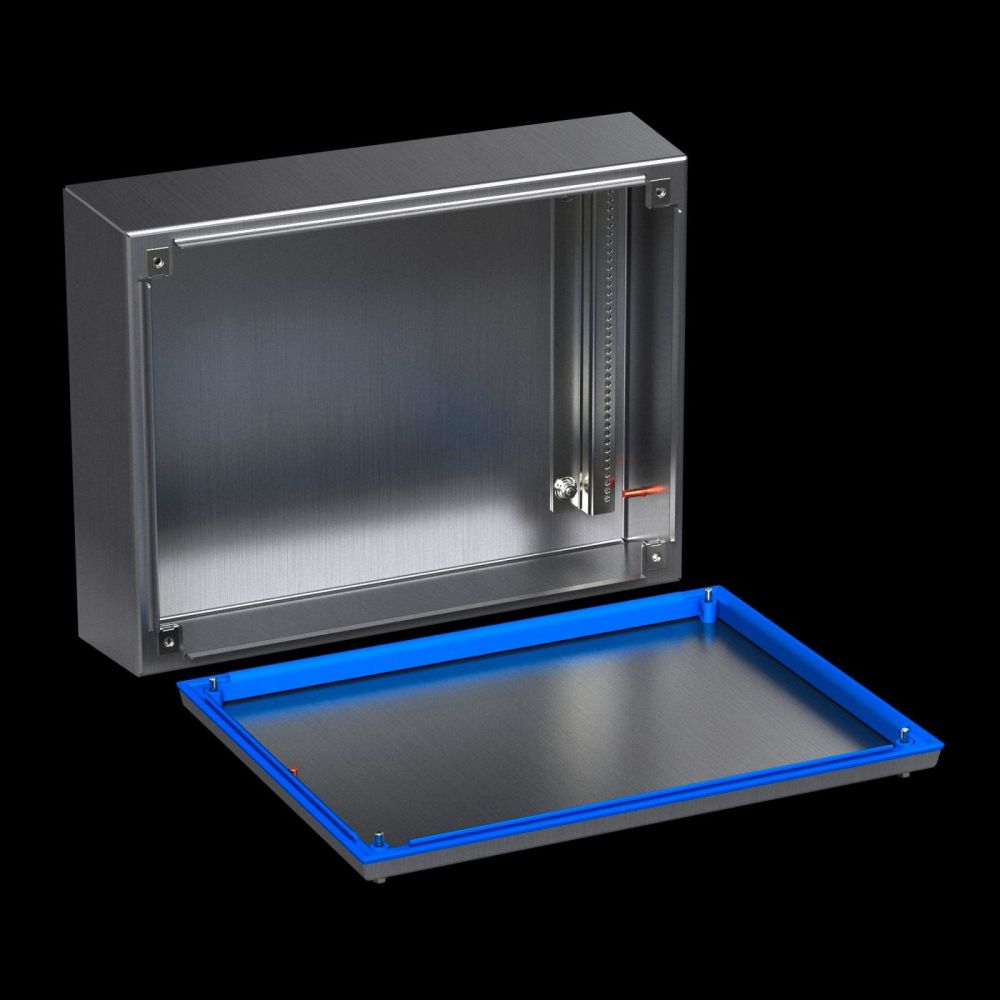

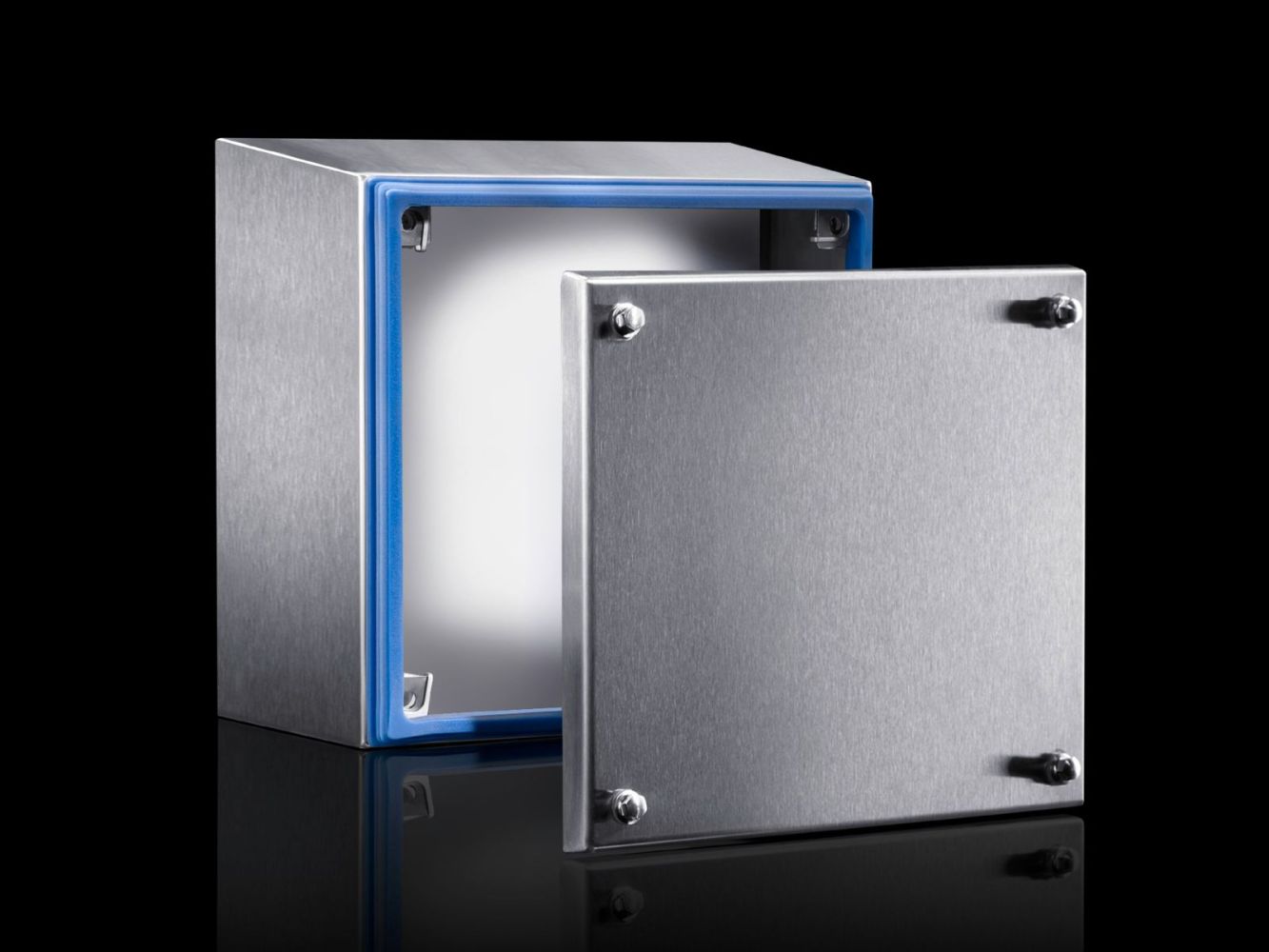

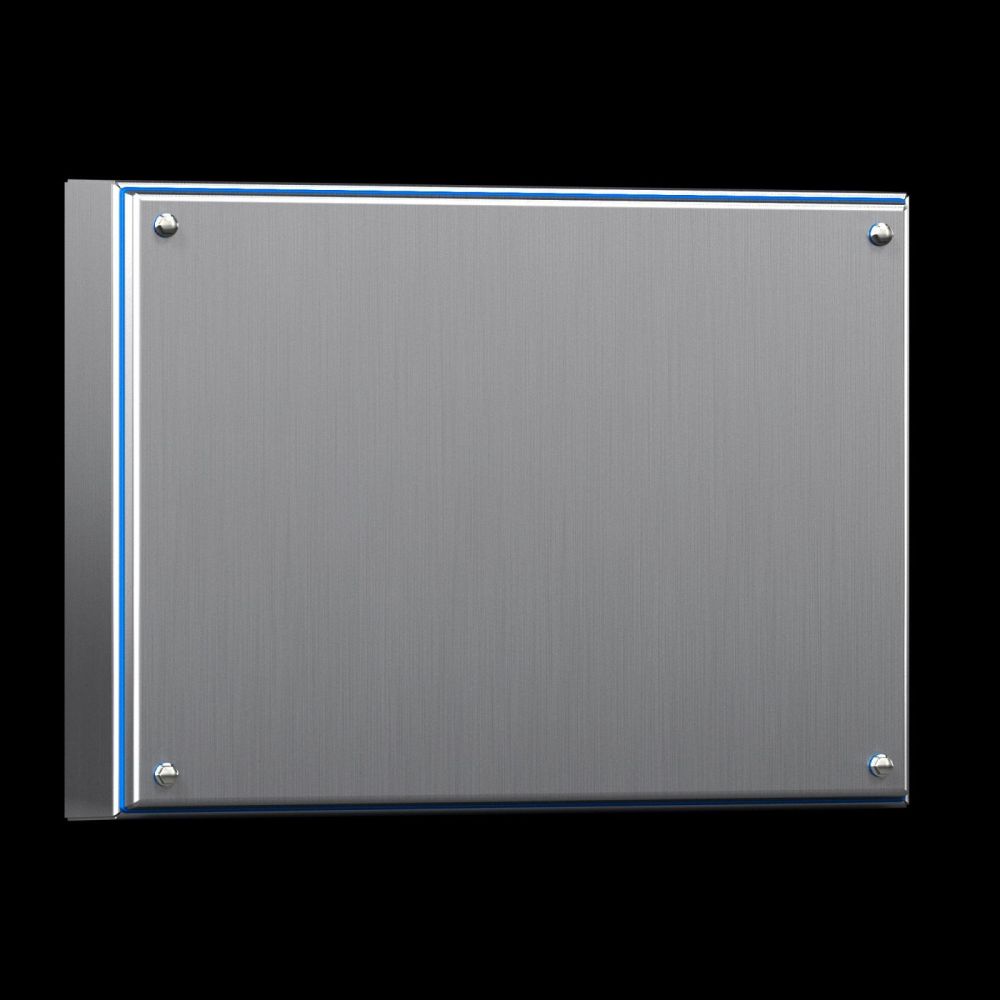

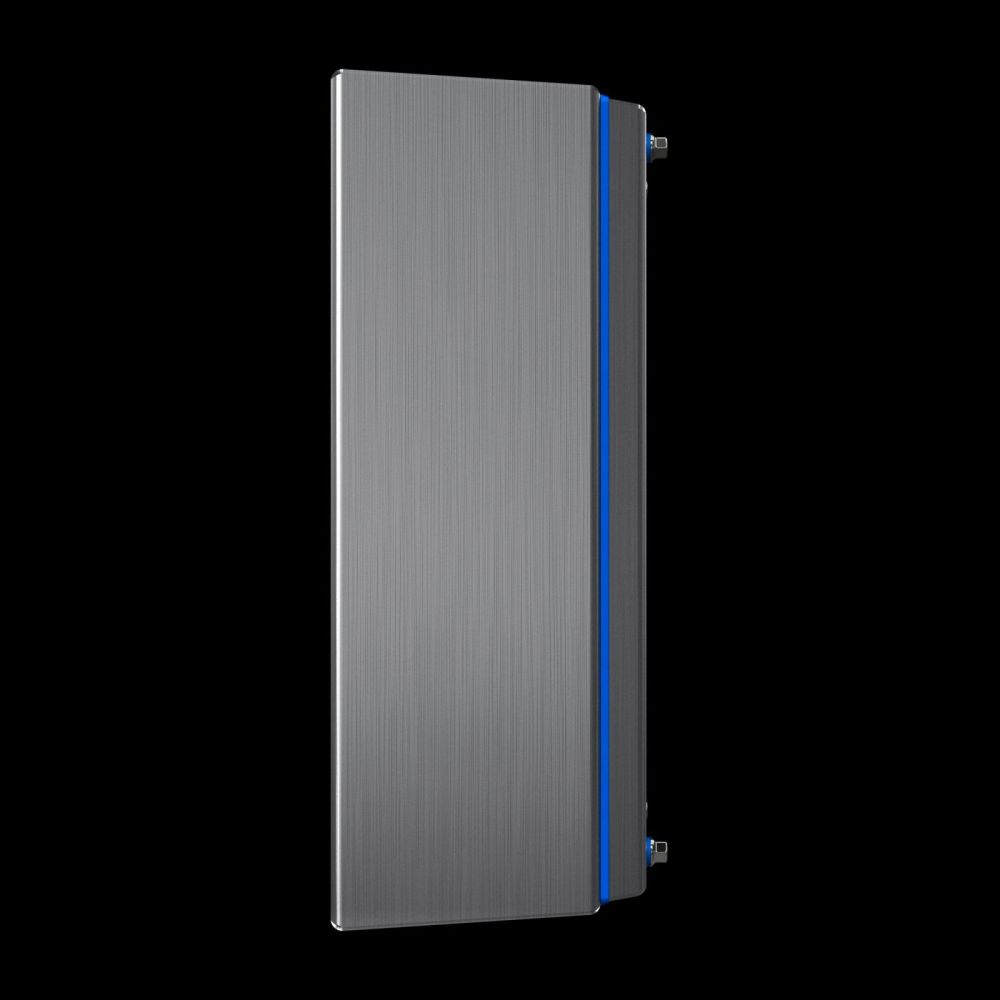

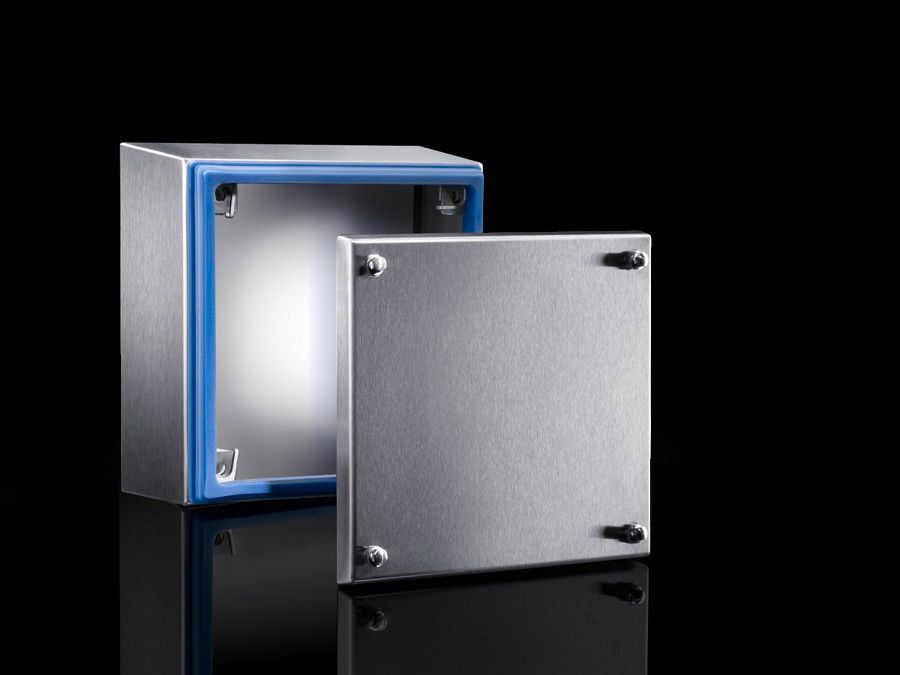

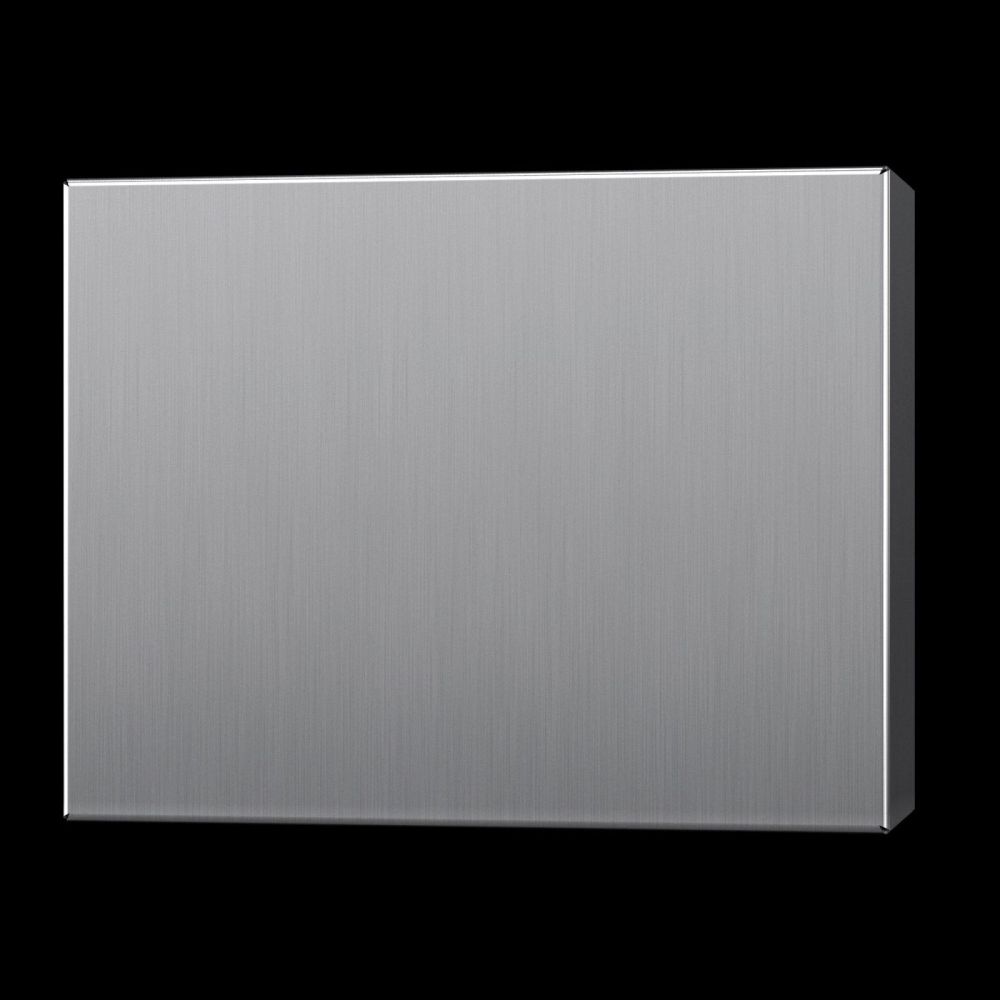

Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal
|
-9% 246,22 EUR 271,96 EUR |
|
|
( 293,00 EUR incl. VAT ) ≈ £211.26 | ≈ $285.37 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 600507 |
|---|---|
| Mfg Part No: | 1672600 |
| UPC/EAN: | 4028177639751 |
| Weight: | 0.123 kg |
Product information for Rittal 1672600:
Material: Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639751
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 200 mm
Width (rear): 227 mm
Height (front): 200 mm
Height (rear): 227 mm
Depth: 120 mm
Weight/pack: 3 kg
Type: HD 1672600
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639751
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 200 mm
Width (rear): 227 mm
Height (front): 200 mm
Height (rear): 227 mm
Depth: 120 mm
Weight/pack: 3 kg
Type: HD 1672600
Questions & answers
What is the delivery time of Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal?
The article Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal is currently not in stock but has been backordered.
According to our experience the article is ready for dispatch within 9 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Rittal 1672600 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal always at the best possible price. We can give you a discount of 2% on Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
Fitting accessory for Rittal 1672600 HD Terminal box, WHD: 200x200x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal
 |
Rittal 2315000 SZ Support rail TS 35/7.5 to EN 60 715, for KL, KL-HD, AE, for W: 200 mm, L: 187 mm
Length sized to the enclosure width Material: Sheet steel Surface finish: Zinc-plated Packs of: 10 pc(s). EAN: 4028177021020 Customs tariff number: 73269098 eCl@ss 5.1: 27189250 eCl@ss 7.0: 23159101 ... Lieske Part No.: 355856 Mfg Part No: 2315000 Type: SZ 2315000 |
-8% 26,57 EUR 28,99 EUR
 ≈ £22.80 | ≈ $30.79
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal 4000100 HD Wall spacer bracket, stainless steel, 1.4301, Wall distance 50 mm
Benefits: Creates space for cleaning behind the enclosure. Shorter assembly times by eliminating the need for an all-round seal. Greater hygiene safety by avoiding an uncontrollable dead space or gap ... Lieske Part No.: 436787 Mfg Part No: 4000100 Type: HD 4000100 |
24,40 EUR 25,41 EUR
≈ £20.94 | ≈ $28.28
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
 |
Rittal SZ 4000300 SZ pressure equalization plug, stainless steel, 1.4305
SZ pressure equalization plug, stainless steel, 1.4305 Lieske Part No.: 1101878 Mfg Part No: 4000300 Type: SZ 4000300 |
174,72 EUR 182,30 EUR
≈ £149.91 | ≈ $202.50
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal KX 1562800 mounting plate BH: 175x185mm for terminal box and bus case.
KX mounting plate, for terminal boxes KX and bus housing KX, for BH: 200x200 mm Lieske Part No.: 1598308 Mfg Part No: 1562800 Type: KX 1562800 |
4,99 EUR 5,20 EUR
≈ £4.28 | ≈ $5.78
Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline
|
 |
Rittal HD 2410001 cable gland stainless steel M12x1.5 for cable D: 3-6.5mm
HD cable gland stainless steel, 1.4305, size: M12x1.5, for cable Ø 3-6.5 mm, standard version Lieske Part No.: 1908927 Mfg Part No: 2410001 Type: HD 2410001 |
-9% 104,77 EUR 115,70 EUR
≈ £89.89 | ≈ $121.43
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal HD 2410011 cable gland stainless steel M16x1.5 for cable D: 5-10mm
HD cable gland stainless steel, 1.4305, size: M16x1.5, for cable Ø 5-10 mm, standard version Lieske Part No.: 1908928 Mfg Part No: 2410011 Type: HD 2410011 |
-9% 110,98 EUR 122,12 EUR
≈ £95.22 | ≈ $128.63
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal HD 2410021 cable gland stainless steel M20x1.5 for cable D: 6-12mm
HD cable gland stainless steel, 1.4305, size: M20x1.5, for cable Ø 6-12 mm, standard version Lieske Part No.: 1908929 Mfg Part No: 2410021 Type: HD 2410021 |
-9% 125,93 EUR 138,03 EUR
≈ £108.05 | ≈ $145.95
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
 |
Rittal HD 2410031 cable gland 1=5 stainless steel M25x1.5 for cable D: 12-17mm
HD cable gland stainless steel, 1.4305, size: M25x1.5, for cable Ø 12-17 mm, standard version Lieske Part No.: 1908930 Mfg Part No: 2410031 Type: HD 2410031 |
-10% 151,46 EUR 168,82 EUR
≈ £129.95 | ≈ $175.54
Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline
|
