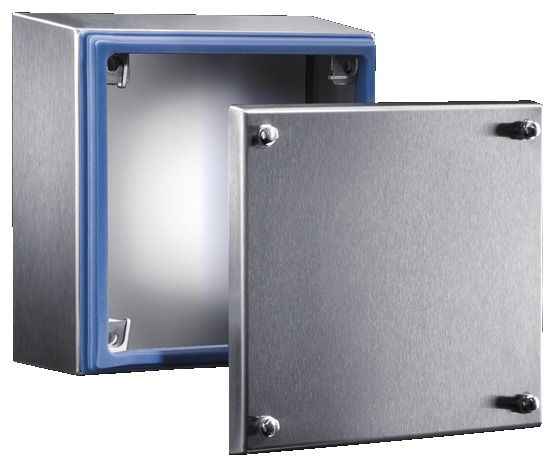

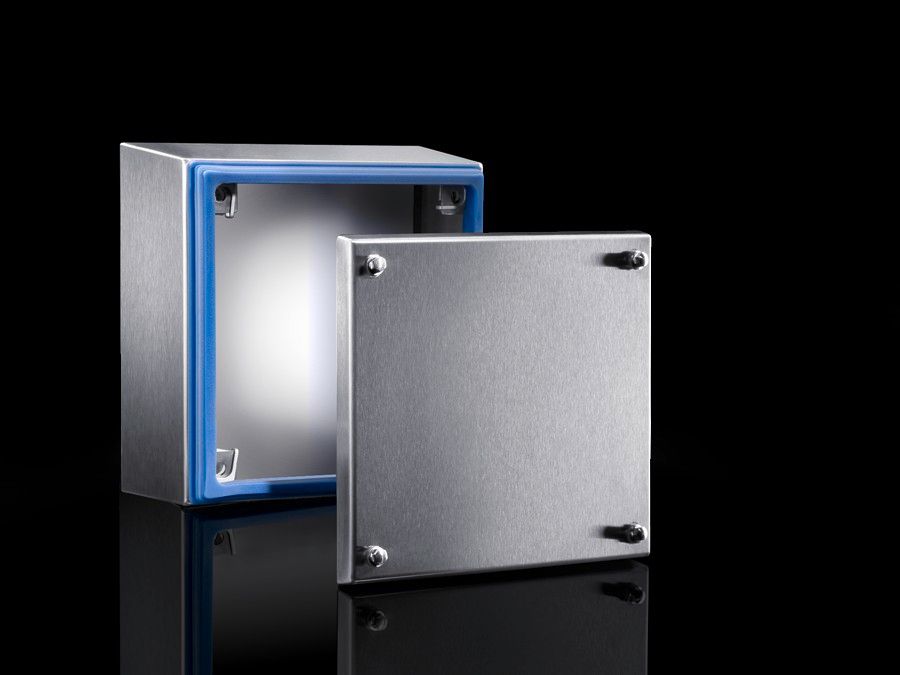

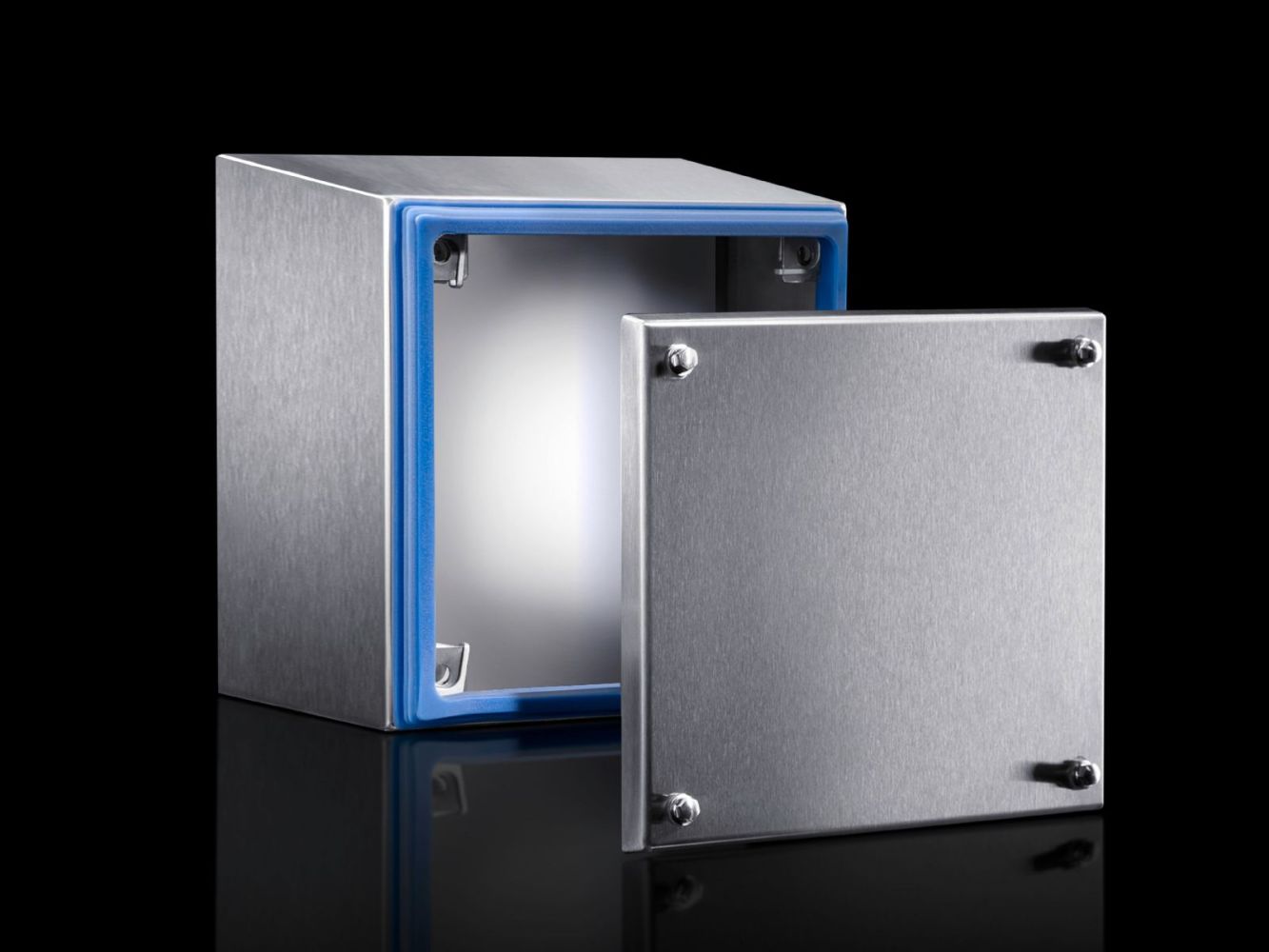

Rittal 1671600 HD Terminal box, WHD: 150x150x120 mm, Stainless steel 1.4301, with mounting plate, with cover and silicone seal
|
-9% 230,92 EUR 255,04 EUR |
|
|
( 274,79 EUR incl. VAT ) ≈ £198.13 | ≈ $267.64 plus delivery charges: 53,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 945826 |
|---|---|
| Mfg Part No: | 1671600 |
| UPC/EAN: | 4028177639744 |
| Weight: | 0.123 kg |
Product information for Rittal 1671600:
Material: Enclosure and cover: Stainless steel 1.4301 (AISI 304) 1.5 mm
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639744
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 150 mm
Width (rear): 177 mm
Height (front): 150 mm
Height (rear): 177 mm
Depth: 120 mm
Weight/pack: 2.15 kg
Type: HD 1671600
Mounting bracket: Sheet steel, zinc-plated, passivated, 2.0 mm
Screw plug: Stainless steel
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and cover: Brushed, grain 400, peak-to-valley height < 0.8 µm
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 3R
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Cover
Mounting bracket (pre-assembled)
Seal and screw plug (supplied loose)
Packs of: 1 pc(s).
EAN: 4028177639744
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC002713
Dimensions: Width (front): 150 mm
Width (rear): 177 mm
Height (front): 150 mm
Height (rear): 177 mm
Depth: 120 mm
Weight/pack: 2.15 kg
Type: HD 1671600
