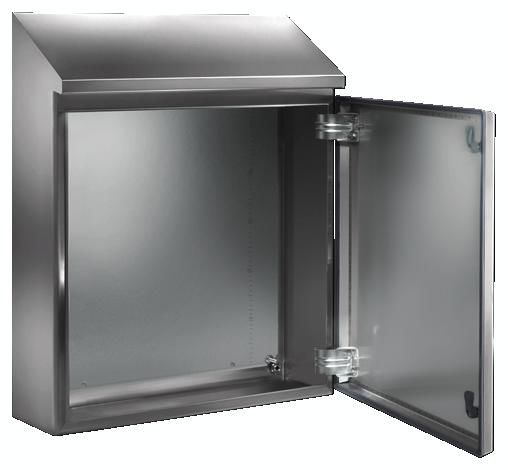

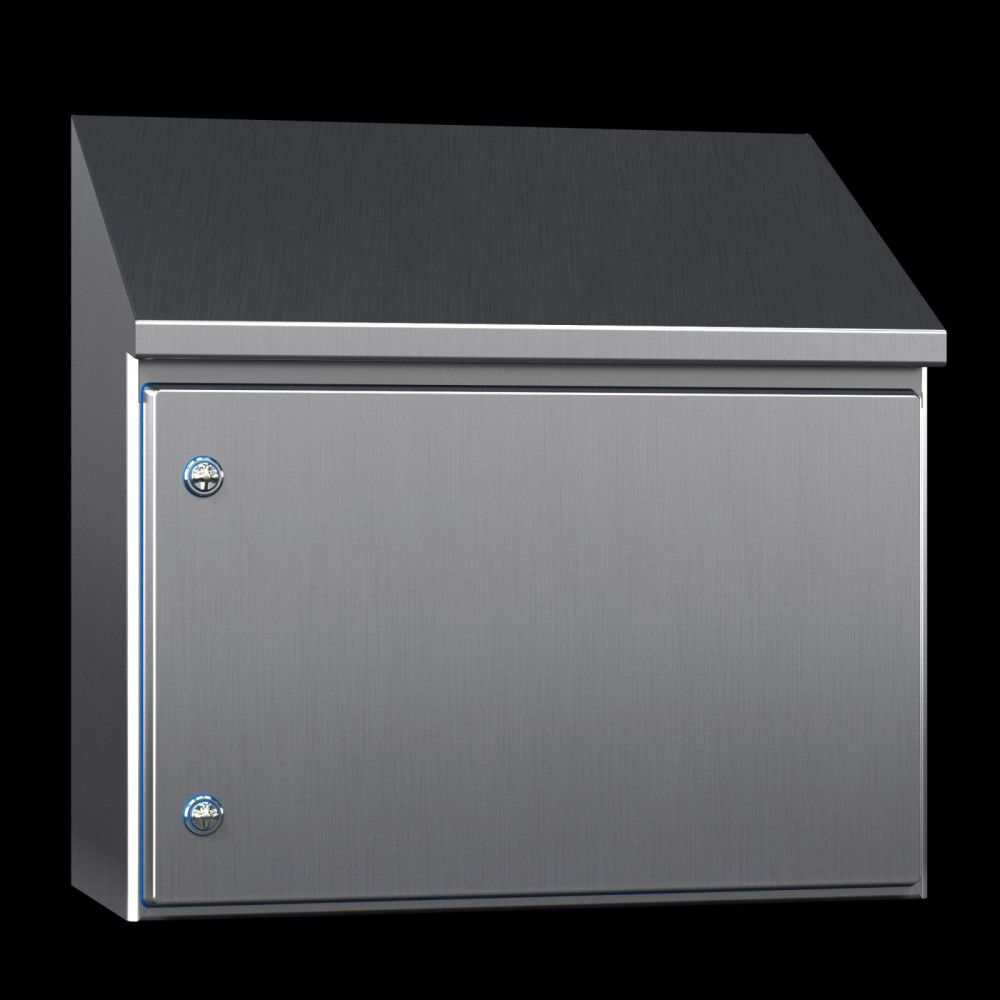

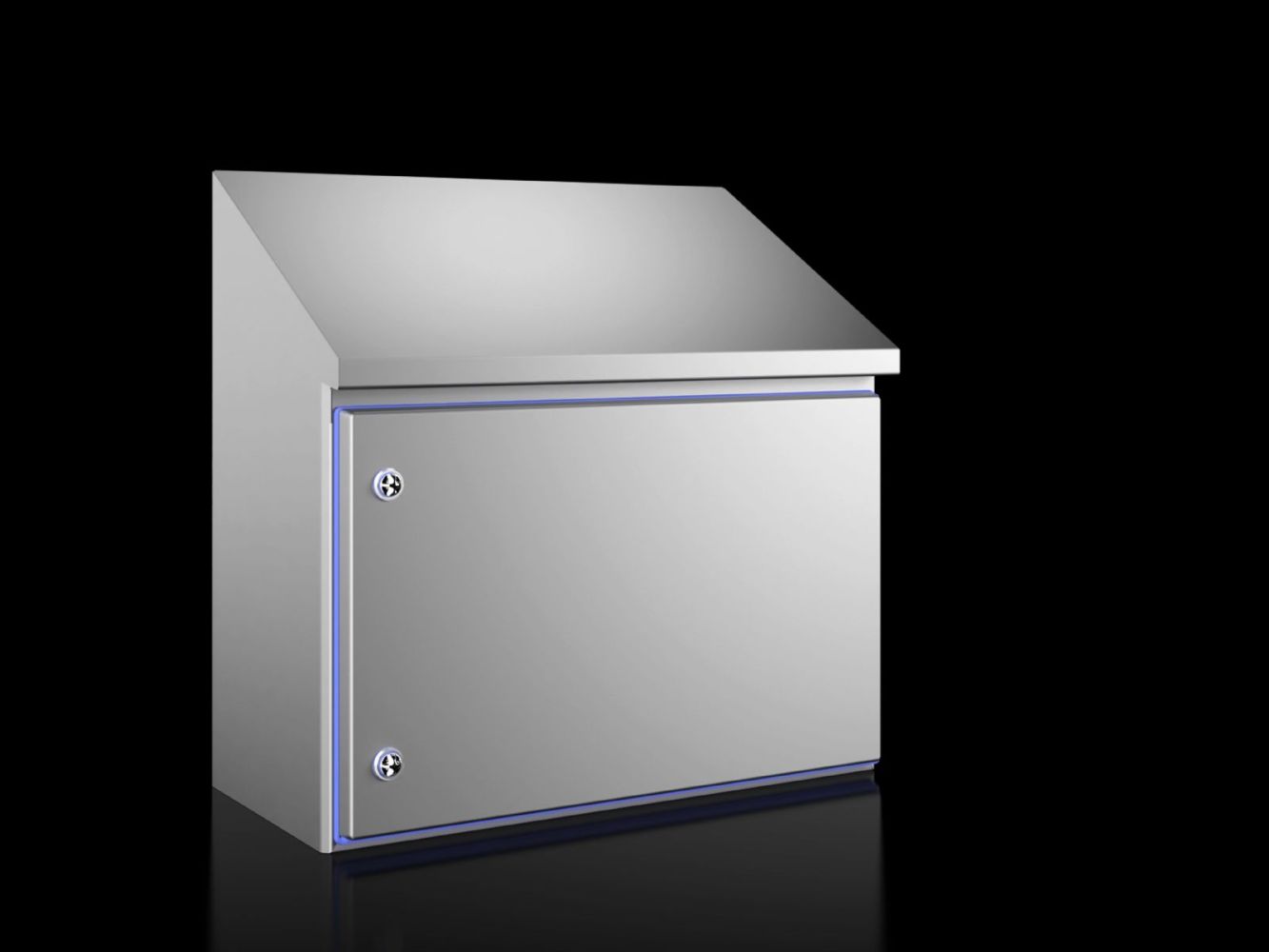

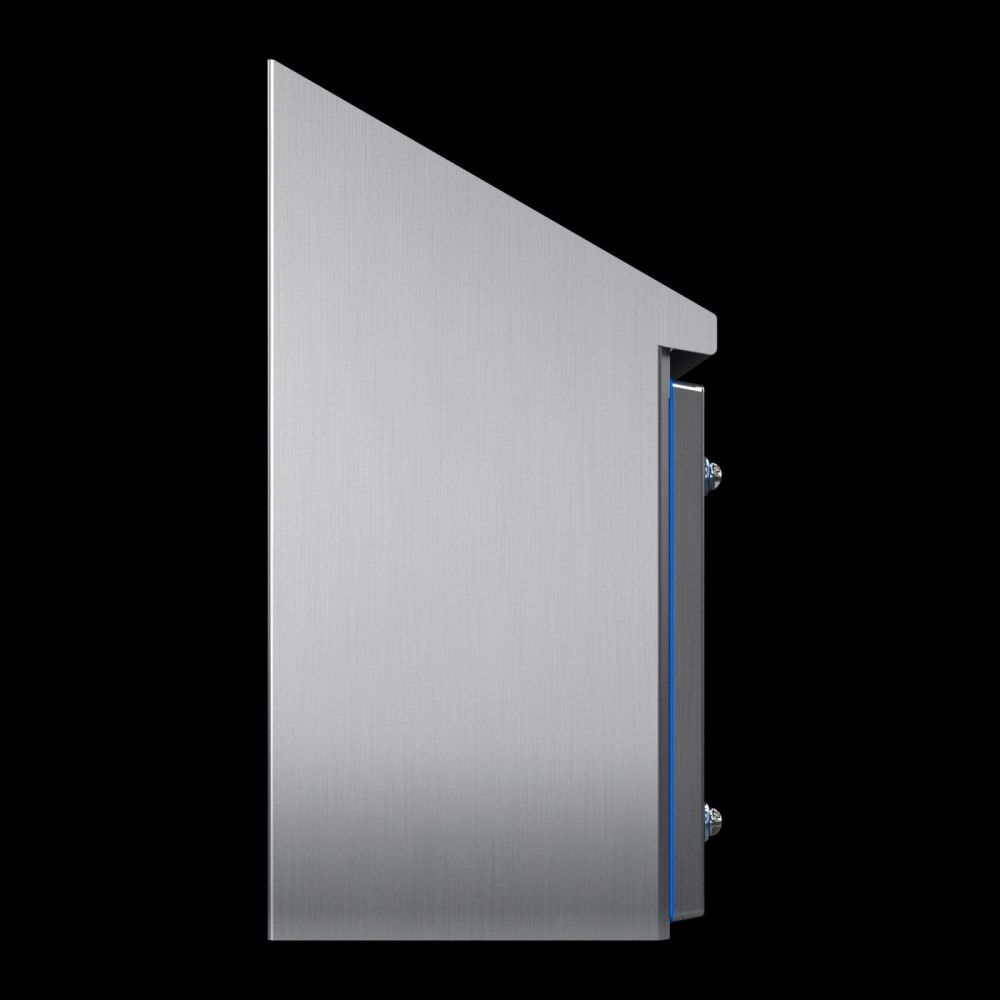

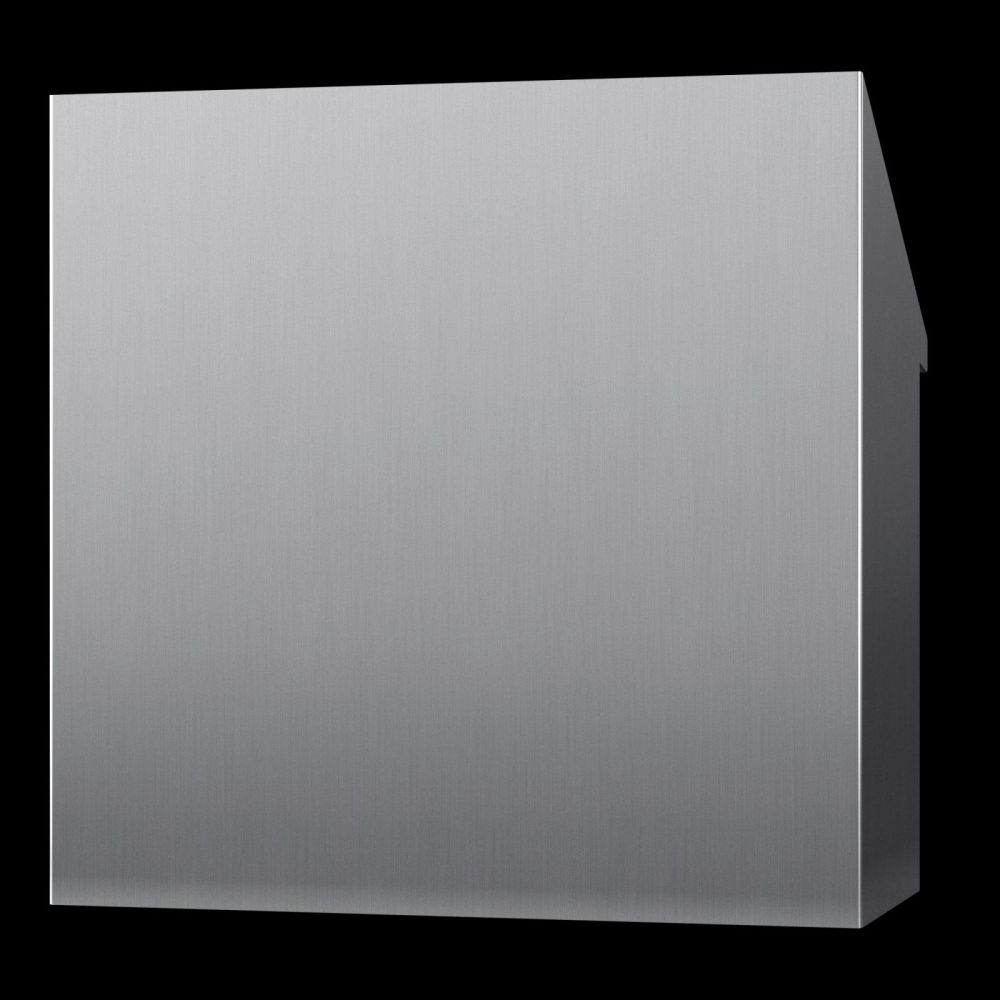

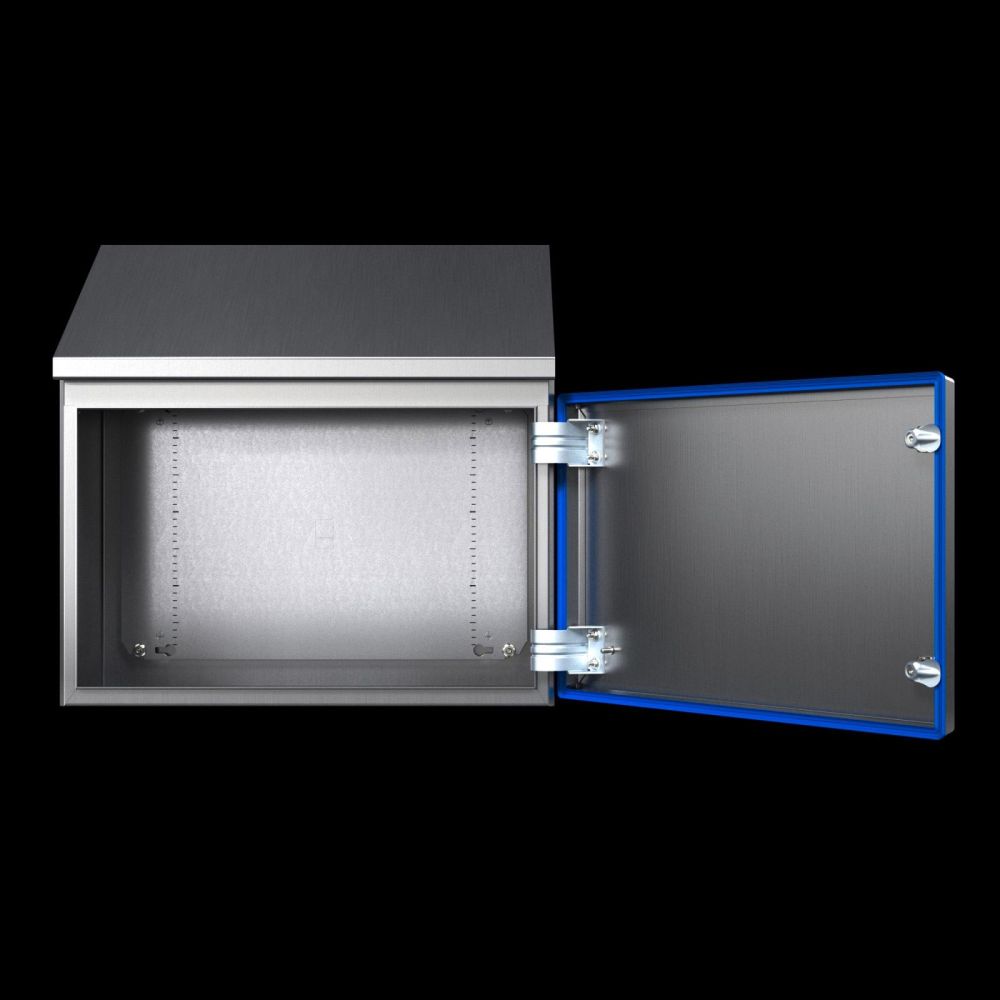

Rittal 1320600 HD Compact enclosure, WHD: 610x430(H1)x601(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal
|
-8% 548,55 EUR 594,09 EUR |
|
|
( 652,77 EUR incl. VAT ) ≈ £470.66 | ≈ $635.77 plus delivery charges: 213,00 € |
|
| Delivery time from supplier's stock (ca.) 9 workdaysinfo_outline | |
| Lieske Part No.: | 358184 |
|---|---|
| Mfg Part No: | 1320600 |
| UPC/EAN: | 4028177567665 |
| Weight: | 23 kg |
Further Switchboard-Systems from RittalFurther products in category Switchboard-Systems
All products of Rittal
Product information for Rittal 1320600:
Benefits: Roof pitch 30° forwards
Material: Enclosure and door: Stainless steel 1.4301 (AISI 304)
Mounting plate: Sheet steel
Lock inserts HD: Stainless steel 1.4404 (AISI 316L)
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm
Mounting plate: Zinc-plated
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Door with inserted seal
Interchangeable door hinge
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177567665
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 610 mm
Height (front): 430 mm
Height (rear): 601 mm
Depth: 300 mm
Mounting plate: Width: 549 mm
Height: 355 mm
Weight/pack: 19.7 kg
Type: HD 1320600
Material: Enclosure and door: Stainless steel 1.4301 (AISI 304)
Mounting plate: Sheet steel
Lock inserts HD: Stainless steel 1.4404 (AISI 316L)
Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Surface finish: Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm
Mounting plate: Zinc-plated
Seal: Blue, dyed (RAL 5010)
Protection category IP to IEC 60 529: IP 66
Protection category IP to DIN 40 050-9: IP 69K
Protection category NEMA: NEMA 13
NEMA 4X
Supply includes: Enclosure of all-round solid construction
Door with inserted seal
Interchangeable door hinge
Mounting plate
Packs of: 1 pc(s).
EAN: 4028177567665
Customs tariff number: 94032080
eCl@ss 5.1: 27180102
eCl@ss 7.0: 27180101
ETIM 6.0: EC000261
Dimensions: Width: 610 mm
Height (front): 430 mm
Height (rear): 601 mm
Depth: 300 mm
Mounting plate: Width: 549 mm
Height: 355 mm
Weight/pack: 19.7 kg
Type: HD 1320600
