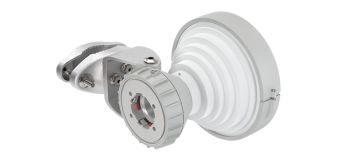

RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40

110,70 EUR
( 131,73 EUR incl. VAT ) ≈ £92.66 \| ≈ $123.87 plus delivery charges: 55,00 €

Made to order · Delivery time approx. 20 workdays
1x RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40 131,73 €
Printing view Bookmark Wholesale Inquiry
Lieske Part No.:	104569
Mfg Part No:	SH-TP-5-40
Weight:	2.3 kg

Product information for RF Elements SH-TP-5-40:

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 16.2 dBi Gain Typical 16 dBi Azimuth Beam Width -3 dB H 27° / V 27° Elevation Beam Width -3 dB H 27° / V 27° Azimuth Beam Width -6 dB H 40° / V 40° Elevation Beam Width -6 dB H 40° / V 40° Front-to-Back Ratio 40 dB

Questions & answers

What is the delivery time of RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40?

The article RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40 is currently not in stock and must be ordered on a per-order basis.

According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of RF Elements SH-TP-5-40 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40 always at the best possible price. We can give you a discount of 2% on RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
