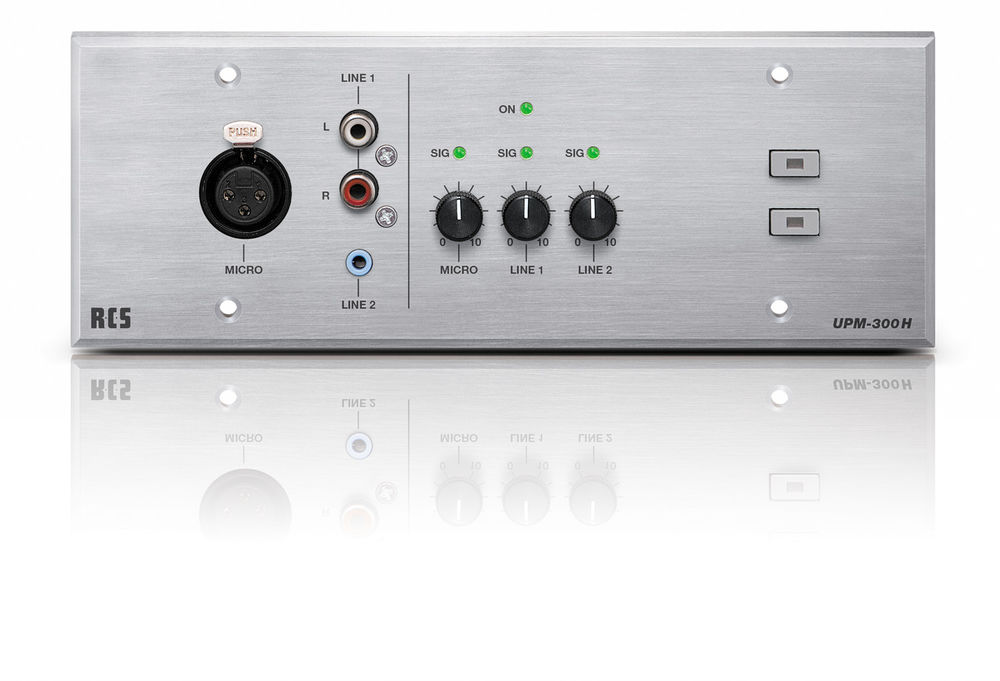

RCS Audio-Systems UPM-300 H 3-channel concealed mixer, (horizontal version)
|
349,60 EUR |
|||||||||||
|
( 416,02 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927733 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | UPM-300 H | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems UPM-300 H:
Each input channel is equipped with its own level control and signal indicator LED for easy monitoring. The symmetrical output ensures noise-free signal transmission, with the output level switchable between 0 dB and +6 dB. The unit is installed in an optional 3-gang flush-mount wall box or surface-mount housing, making it ideal for tight spaces. When combined with the optional PGA-300 Plexiglas cover, the UPM-300 is even ball impact-resistant. An optional 2-button keypad (UPM-002 S) allows for additional user-configurable control functions.
Technical Data:
Model:
- UPM-300 H / V
Power supply:
- 24V DC (external)
Current consumption:
- 40 mA
Inputs:
- 1x Microphone/Line (XLR)
- 1x LINE 1 (RCA)
- 1x LINE 2 (3.5 mm stereo jack)
Input sensitivity:
- Microphone: -63 dB
- LINE 1: -20 dB
- LINE 2: -20 dB
Output:
- Balanced, switchable between 0 dB and +6 dB
- Output impedance: 600 Ohm
Frequency response:
- 30 Hz – 20,000 Hz
Controls:
- One level control per channel with signal LED
Phantom power:
- 18 V for microphone input
Special features:
- Tool-free terminal connectors
- Optional 2-button keypad (UPM-002 S)
- Ball-impact resistant with PGA-300 cover
Dimensions (W x H x D):
- 223 x 80 x 30 mm
Weight:
- 208 g
Scope of Delivery:
- 1x UPM-300 H/V 3-channel flush-mounted mixer
- User manual
- Connection accessories (depending on version)
- Optional accessories available separately (keypad, housing, cover)
