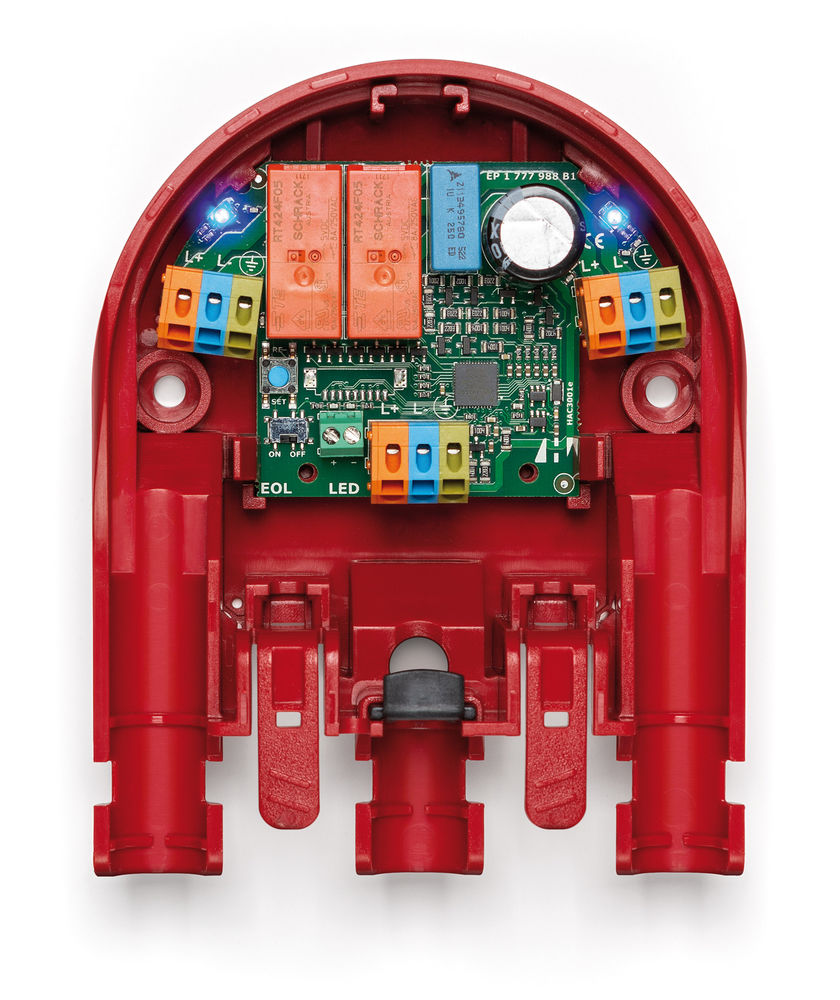

RCS Audio-Systems TRT-200 A ›VARES-LOOP‹ ring bus isolator, IP 21C, including cover
|
134,90 EUR |
|||||||||||
|
( 160,53 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 7 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927723 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TRT-200 A | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems TRT-200 A:
Installed in series within the speaker loop, TRT-200 A transmits both audio signals and control data from the TRC-800 A Ringbus Controller to the connected loudspeakers. It continuously monitors the input, output, and speaker terminals for short circuits, open circuits, and ground faults. In the event of a fault, it immediately reports to the controller and isolates the defective segment. A built-in LED indicates on which side of the module the fault has occurred.
All connected speakers must include a DC blocking capacitor (TRK-001 A), except for single units connected directly at T-branches.
Technical Specifications (English):
Model:
- TRT-200 A
Power Supply (via TRC-800 A):
- 19 – 30 V DC (Nominal 30 V DC)
- Idle current: 100 µA
- Max. Power Consumption: 20 mW
Control Signal:
- 20 kHz / 7.5 Vrms
Control Response Times:
- Fade-in: 0.3 s
- Fade-out: 1.0 s
Wiring:
- 2-wire system, max. 2.5 mm²
- Max. loop length: 1,000 m
- Max. cable outer diameter: 13 mm
T-Branch (End-of-Line):
- Max. 50 W
- EoL resistor: 47 kOhm, 0.25 W or higher
Speaker Type:
- Only with DC blocking capacitor (TRK-001 A)
LOOP Fault Detection:
- Short circuit
- Wire-to-wire
- Open circuit
- Ground fault
Mounting:
- Surface mount at speaker location
Connections:
- 3-pole 5 mm WAGO terminal block:
- Loop input: L+, L−, GND (0.8–2.5 mm²)
- Loop output: L+, L−, GND (0.8–2.5 mm²)
- Speaker: L+, L−, GND (0.8–2.5 mm²)
- LED: L+, L− (0.8–2.5 mm²)
Housing / Protection Class:
- ABS with transparent cover
- IP21C
Dimensions (W x H x D):
- 110 x 130 x 55 mm
Weight:
- 150 g
Certification:
- EN 54-17:2005
- Certificate No.: 0560-CPR-142190002
Special Features:
- Rapid detection and isolation of line faults
- LED indicator for fault side identification
- Seamless integration into VARES-LOOP topology
- High reliability for ENS/SAA system environments
