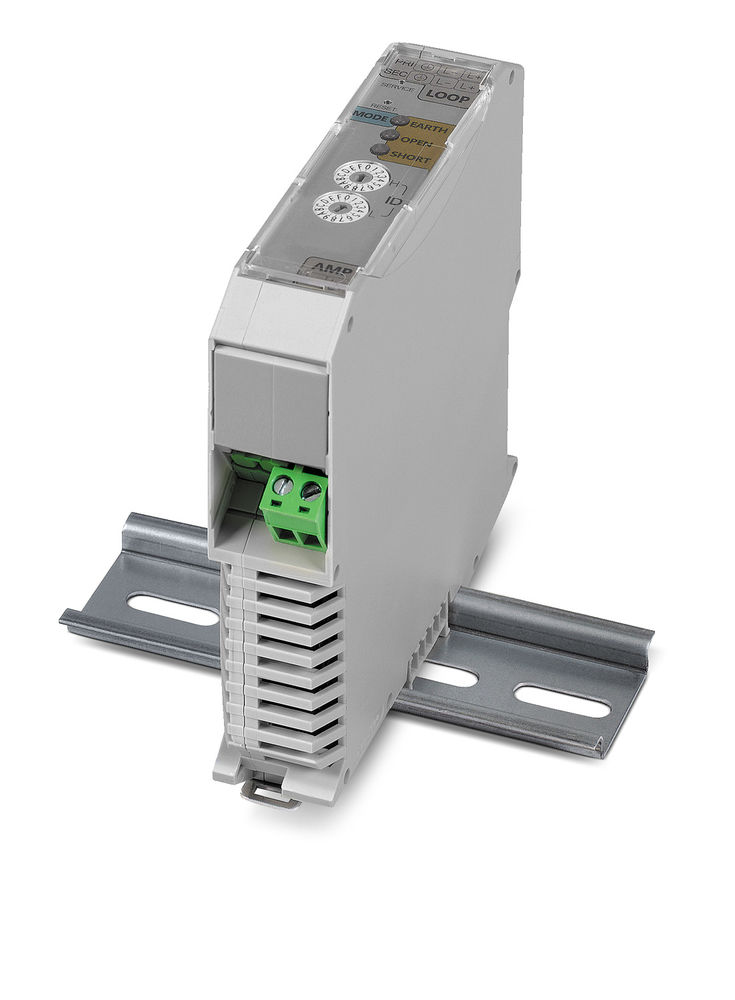

RCS Audio-Systems TRC-800 A ›VARES-LOOP‹ ring bus controller, for DIN rail mounting, 1TE (IP-30)
|
788,50 EUR |
|||||||||||
|
( 938,32 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time from supplier's stock (ca.) 3 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1927720 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | TRC-800 A | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for RCS Audio-Systems TRC-800 A:
With the included Ringbus Controller software, modules can be operated in two modes: the Service Mode for setup and commissioning of the system, and the Tracking Mode to pinpoint which Ringbus isolator has detected a fault.
Thanks to its slim DIN rail design (just 1 module width), the TRC-800A is easy to integrate into control cabinets. It reliably detects various fault conditions – such as ground fault, short circuit, open line, or disconnected amplifier input – and activates the fault relay in case of errors.
Technical Specifications (English):
Model:
- TRC-800A
Power Supply:
- 18 – 36 V DC (Nominal: 24 V DC)
- Idle Current: 100 mA
- Max. Power Consumption: 2.4 W
AC Characteristics:
- Max Voltage: 100 Vrms
- Max Current: 5 A
- Frequency Range: 40 Hz – 20 kHz (–3 dB)
DC Output:
- Voltage: 30 V
- Max Current: 130 mA
LOOP System:
- Max Total Load: 500 W
- Wiring: 2-wire, max. 2.5 mm²
- Max Loop Length: 1,000 m
Loop Relay Contact:
- Max. 250 V AC / 8 A (Dual-State Type)
Bus Address Range:
- 00 – FF (0–255), up to 32 devices per DIN rail
Detection Functions:
- Short circuit, wire-to-wire, open circuit, ground fault
Max Ringbus Modules Supported:
- 200 units
Connections:
- 1x 5-pin DIN rail bus connector
- 1x 5-pin screw bus connector
- 2x 3-pin screw terminals
- 1x 2-pin screw terminal
Housing & Installation:
- Material: ABS
- Mounting: DIN rail
- Protection Class: IP30
Dimensions (W x H x D):
- 17.5 x 114.5 x 99 mm (1 module width)
Weight:
- 210 g
Certifications:
- EN 54-17:2005
- NEN2575-2
Special Features:
- Service and Tracking modes for setup and fault analysis
- Fault relay contact for error indication
- Space-saving DIN rail design
- Monitoring of amplifier and wiring conditions
